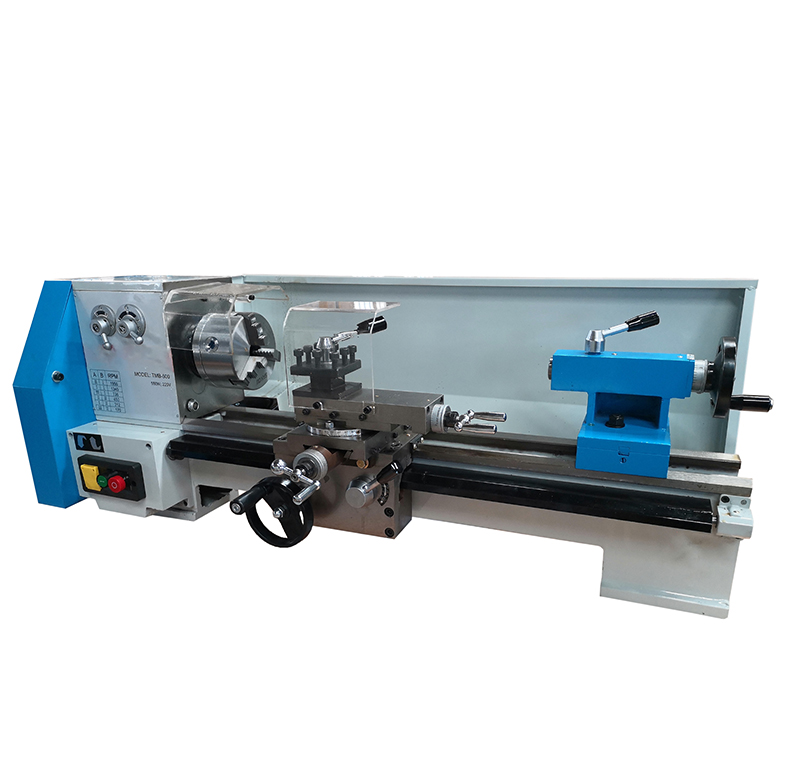

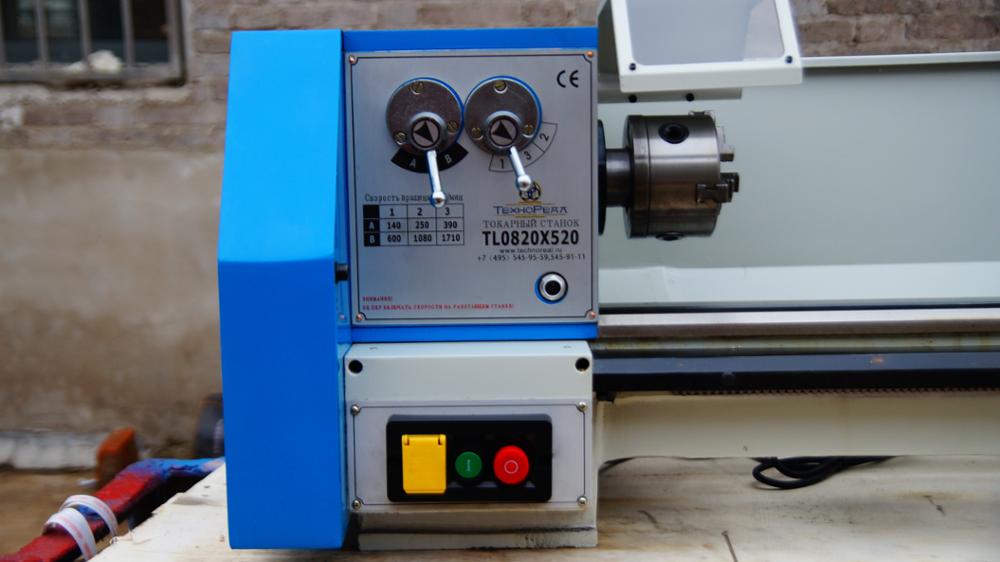

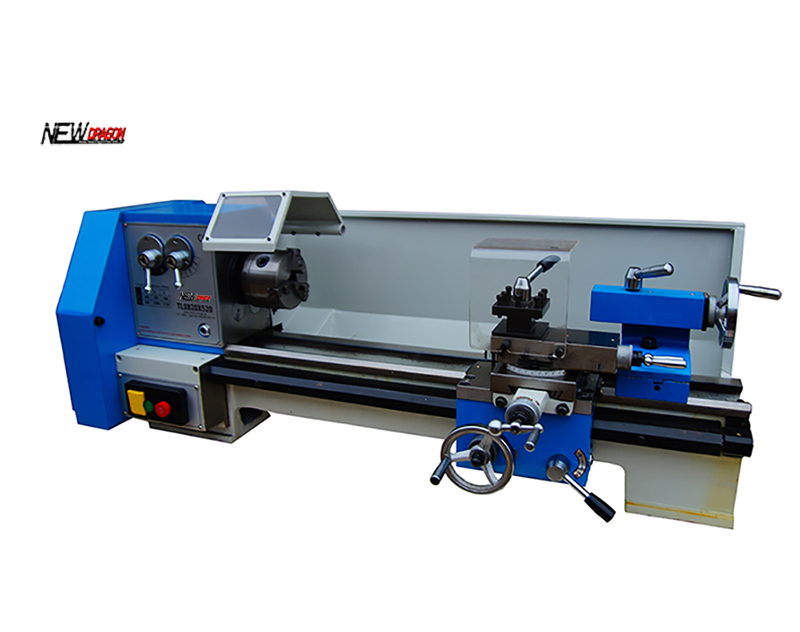

HIGHT PREICSION BENC LATHE TL0820
Most economical , widely useful hobby lathe
V-way bed is precision ground.
Spindle is supported by precision tapper bearing.
Headstock is constantly oild during operating.
Power longitudinal feed allows thread.
Adjustable gibs for slideways.
Equipped with leadscrew, chuck and cutter covers.
Change gears have large feed and threading functions.
Tailstock may be off set for turning tapers.
TECHNICAL SPECIFICATIONS
|
Max.distance between two centers |
350/520mm |
|
|
Max.Swing over bed |
200mm |
|
|
Max.Swing over carriage |
115(520)mm |
|
|
Taper of spindle hole |
MT3 |
|
|
Number of steps of spindle speeds |
6 |
|
|
Range of spindle speeds |
140-1710rpm |
|
|
Metric thread cutting |
0.4-3mm(11steps) |
|
|
Range of longitudinal feeds |
0.05-0.2mm/rev |
|
|
Taper of taistock sleeve |
MT2 |
|
|
Motor |
0.55KW |
|
|
Overall dimension |
1040*550*410mm |
|
|
Net weight |
105kg |
STANDARD ACCESSORIES
|
NAME |
QTY |
|
|
Three Jaw Chuck |
1pcs |
|
|
V-belt |
1pcs |
|
|
Dead Centers |
2pcs |
|
|
Wrench |
1pcs |
|
|
Spanner |
1set |
|
|
Change Gears |
1pcs |
|
|
Wrench For tool post |
1pcs |
OPTIONAL ACCESSORIES
|
NAME |
QTY |
|
|
Four Jaw Chuck |
1pcs |
|
|
Follow Rest |
1pcs |
|
|
Steady Rest |
1pcs |
|
|
Face Plate |
1pcs |
|
|
Rolling Center |
1pcs |
|
|
Stand |
1pcs |
|
|
Truning Tools |
1pcs |
|
|
Splash Guard |
1pcs |
|
|
Chip Tray |
1pcs |
