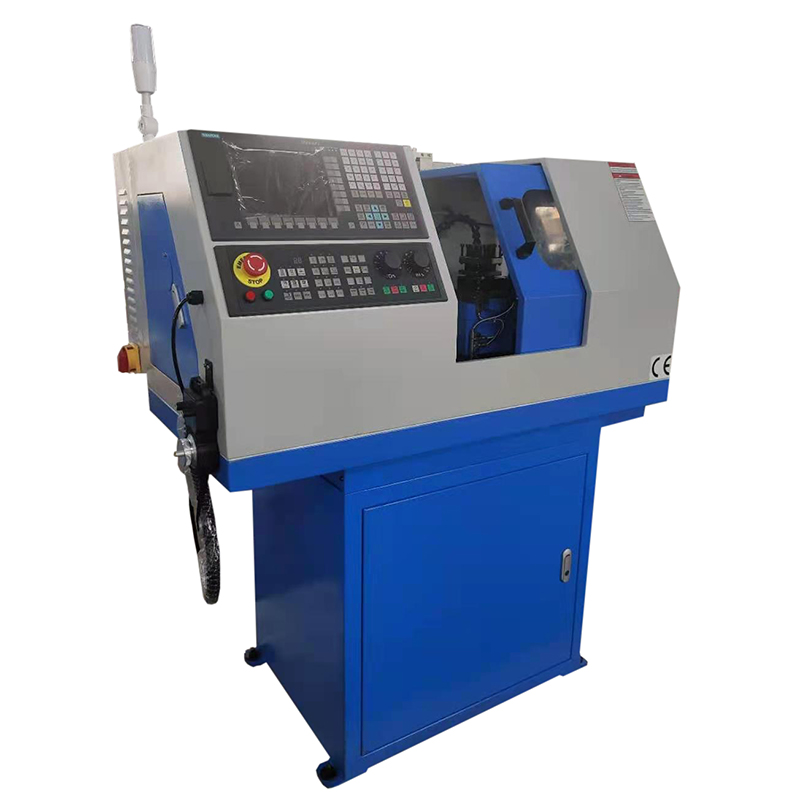

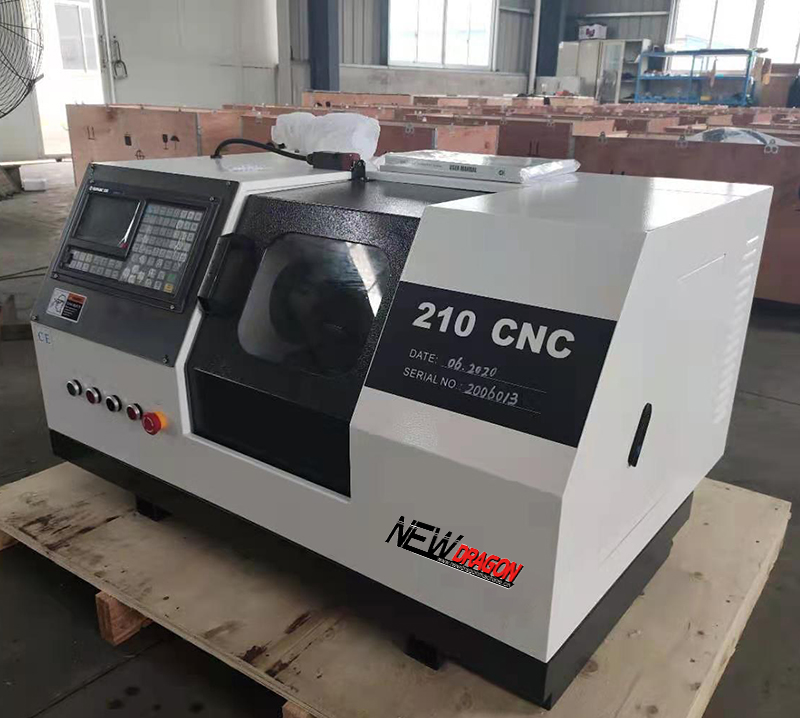

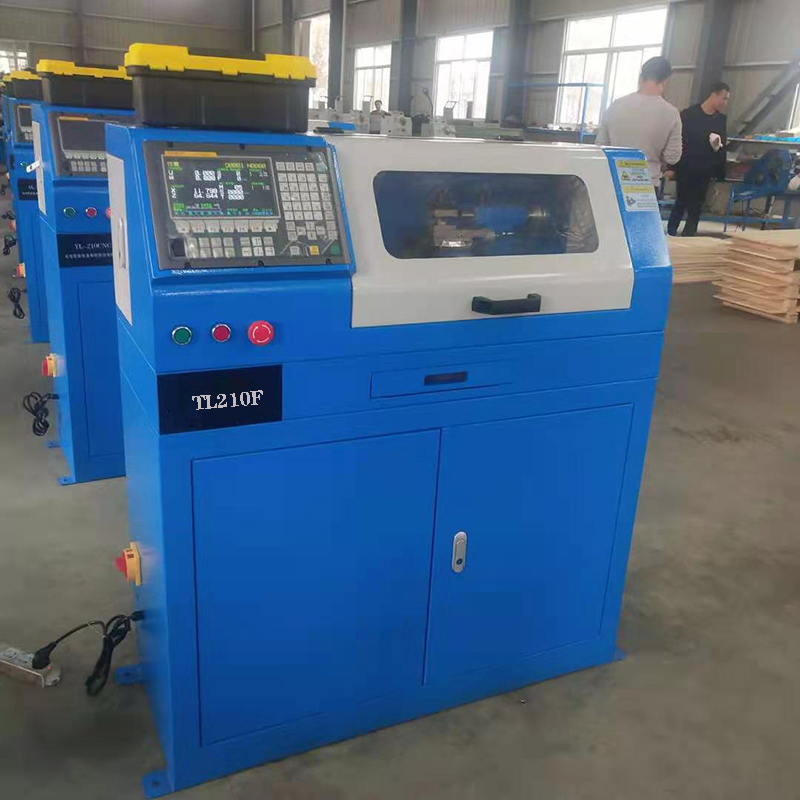

TL210F (210CNC) mini cnc lathe machine
Windows software control
Simple operation
Functional and easy-to-operate control
User-friendly drilling and milling cycles with graphic display
7.2" LCD flat screen
Simulation (projected)
Model
210CNC
Swing over bed
210mm
Distance between certers
400mm
Width of bed
100mm
Spindle speed
50-2250r/min
Spindle taper
MT3
Z-axis moving
2000mm/min
X-axis moving
1000mm/min
Z-axis feeding
500mm/min
X-axis feeding
250mm/min
Z-axis torque
1.5Nm
X-axis torque
2Nm
Z-axis travel
250mm
X-axis travel
80mm
Motor of Z axis
1.5N
Motor of X axis
2N
Tool position
4
Angle of the tool post
360°
Tape of tailstock
MT2
Travel of tailstock
50mm
Z/X-axis position accuracy
0.01mm
Position accuracy of tools
0.005mm
Motor power
600W/1.1KW
Weight
115/160KG
Packing size
1260*830*760mm
Standard Accessories
Optional Accessories
3-jaw Chuck
4-jaw Chuck
Dead Center
Tool Post
Toolbox with Tools
Tool Holder
Coolant Pump
Cutting Tools
Oil Gun
Handwheel
Oil Tray
PCMCIA Parallel Card
Base Stand
Computer Stand and Frame
