Specification
|

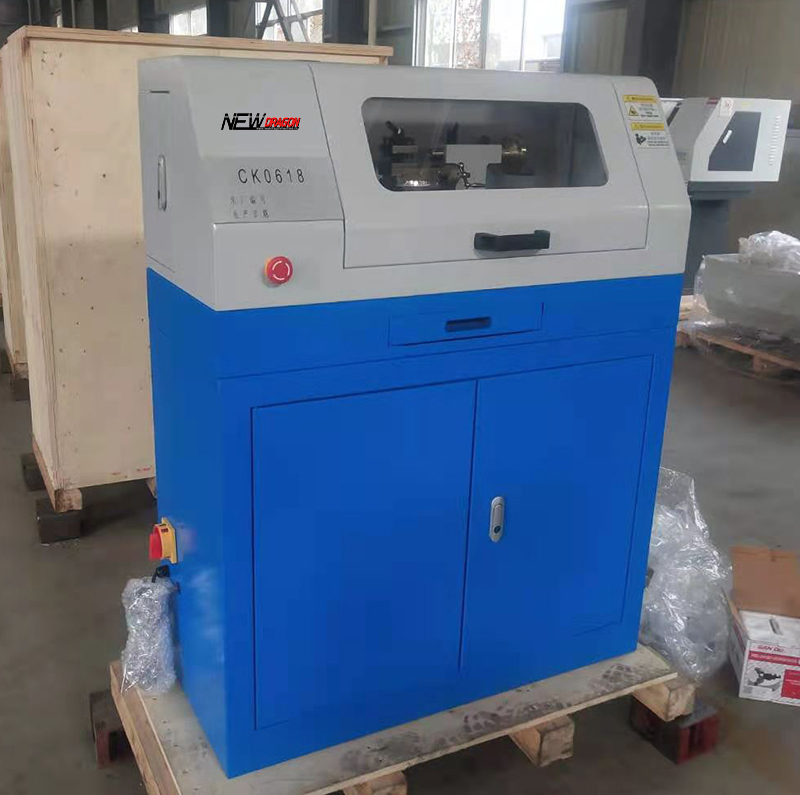

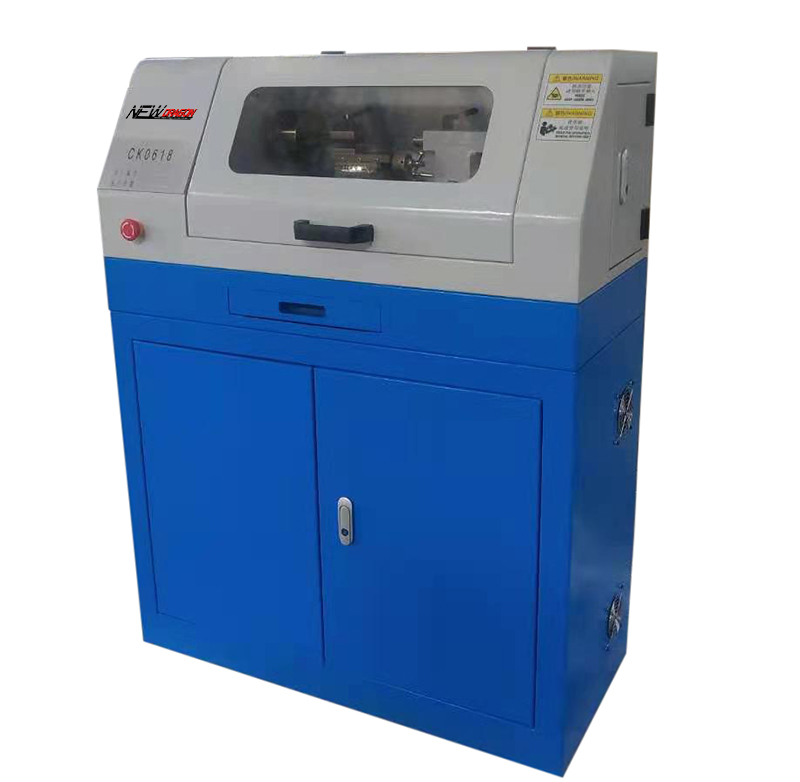

CK0618
|
|
Max swing over bed
|
180mm
|
|
Max.swing over carriage
|
300/350mm
|
|
Max.length of work pieces
|
300mm
|
|
Spindle bore
|
20mm
|
|
Spindle taper
|
MT3
|
|
Spindle speed
|
50-2250rpm
|
|
Metric thread cutting
|
0.5-2.5mm
|
|
Inch thread cutting
|
12-52TPI
|
|
Electric toolpost
|
4-position
|
|
Gangtool bar size
|
8mm
|
|
X Travel
|
60mm
|
|
Z travel
|
250mm
|
|
X Moving speed
|
800mm/min
|
|
Z Moving speed
|
1200mm/min
|
|
Spindle motor power
|
400w (optional:550w)
|
|
X Motor power
|
1.5NM
|
|
Z Motor power
|
2NM
|
|
Mini setting unit
|
0.001mm
|
|
Tailstock diameter
|
20mm
|
|
Tailstock Travel
|
50mm
|
|
Tailstock taper
|
MT2
|
|
Overall size
|
900X400X1250mm
|
|
Net weight
|
150kgs
|
