Features:
Double linear guides for X and Z axis.
Intermediate ball screw
Adaptable to various control system such as GSK, Siemens, Fanuc.
Different appearance shapes such as square, circular arc and so on.
Optimized guide rail structure by double triangles.
Steady integral cast iron foot.
|

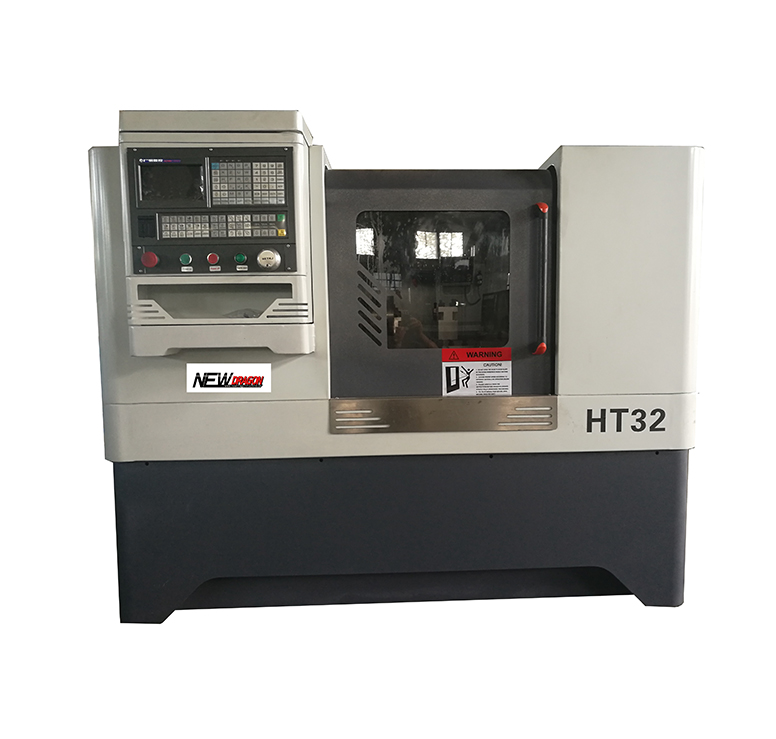

Specifications |
HT32X250 |
|
Max.length of workpiece |
250mm |
|
Width of bed |
350mm |
|
Spindle speed range |
150-2500rpm |
|
spindle bore |
49mm |
|
spindle nose |
A2-5 |
|
Taper of spindle bore |
MT6 |
|
Chuck diameter |
160mm |
|
X-axis travel |
350mm |
|
Z-axis travel |
300mm |
|
X-axis rapid moving |
8m/min |
|
z-axis rapid moving |
10m/min |
|
Tool station number |
4 or 6 or Gange type |
|
Max.section of tool |
20x20mm |
|
Main motor power |
4KW |
|
Coolant pump power |
120W |
|
Machine dimension |
1880X1377X1610mm |
|
Overall dimension |
1980x1477x1800mm |
|
Net weight/Gross weight |
1300/1500kg |
Standard configuration
Integral cast iron stand
conventional main motor
3-jaw manual chuck
Gange type turret
Automatic lubrication system
Automatic cooling system
Dead center
Leveling block set
Tool box and tools
No tailstock
Optional configuration
Variable frequency main motor
Servo main motor
spindle unit
Hydrualic chuck & tailstock
Pneumatic chuck & tailstock
Spring collect
Power head
Robot arm
Automatic bar feeder
