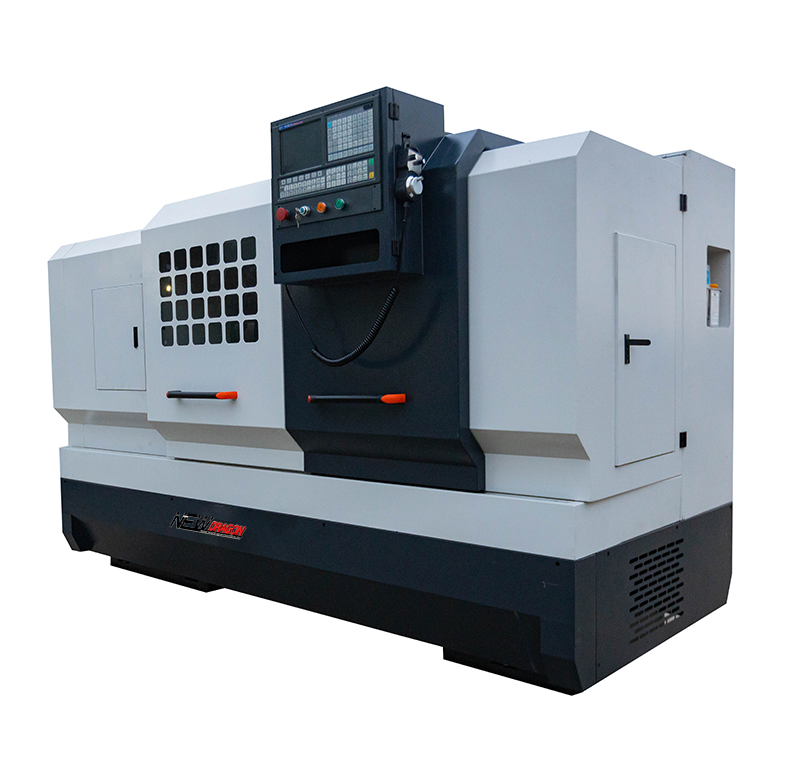

Features:
The bed width 360mm and the bed and stand casting together.
The Surface of the bedways is supersonic frequency hardened and precision grinding.
3 steps gears headstock,spindle bore standard 105mm and optional 120mm.
More strong ball screw, X axis 32mm and Zaxis 63mm.
|
MODEL |
CK6163 |
CK6180 |
|
Max. swing over bed |
630mm |
800mm |
|
Max. swing over cross slide |
340mm |
480mm |
|
Center distance |
1500/2000/3000mm |
1500/2000/3000mm |
|
Bed width |
650mm |
650mm |
|
Spindle hole |
105mm |
105mm |
|
Spindle nose |
ISO-A2-11 |
ISO-A2-11 |
|
Spindle speed |
15-110/90-250/250-900 |
15-90/80-220/200-800 |
|
Spindle speed steps |
Manual 3 steps |
Manual 3 steps |
|
Chuck size |
315mm |
400mm |
|
X/Z axis rapid travel speed |
4000/6000mm/min |
4000/6000mm/min |
|
X/Z axis cutting travel speed |
1-6000mm/min |
1-6000mm/min |
|
Number of tool post |
Vertical 4 |
Vertical 4 |
|
Max. size of toolshank |
32*32mm |
32*32mm |
|
Positioning accuracy |
0.01mm |
0.01mm |
|
Repeat positioning accuracy |
0.005mm |
0.005mm |
|
The min.unit set |
0.001mm |
0.001mm |
|
Dia.of tailstock sleeve |
100mm |
100mm |
|
Taper of tailstock sleeve |
MT6 |
MT6 |
|
Max. travel of tailstock |
200mm |
200mm |
|
Main drive motor |
11KW |
15KW |
|
Coolant pump motor |
0.12KW |
0.12KW |
|
L*W*H/Center distance(750mm) |
3500*1700*1850mm |
3900*1850*2150mm |
|
L*W*H/Center distance(1000mm) |
4000*1850*2150mm |
4000*1850*2150mm |
|
L*W*H/Center distance(1500mm) |
5400*1850*2150mm |
5400*1850*2150mm |
|
N.W./Center distance(750mm) |
4600kg |
5100kg |
|
N.W./Center distance(1000mm) |
5000kg |
5500kg |
|
N.W./Center distance(1500mm) |
5600kg |
6100kg |
STANDARD ACCESSORIES
GSK 980TB3i servo control system
Work lamp
3-jaw chuck
Paddings
Coolant system
Standard safety cover
One set tools& tool box
Dead center and center sleeve
Optional accessories
GSK,KND,SIEMENS,FANUC control system
Spindle bore82mm
Bed width 400mm
Main servo motor
Big 3-jaw and 4-jaw chuck
Pneumatic chuck
Hydraulic chuck
Hydraulic 8position turret
Face plate
Steady rest & follow rest
Live center MT5
Power drilling and milling head
