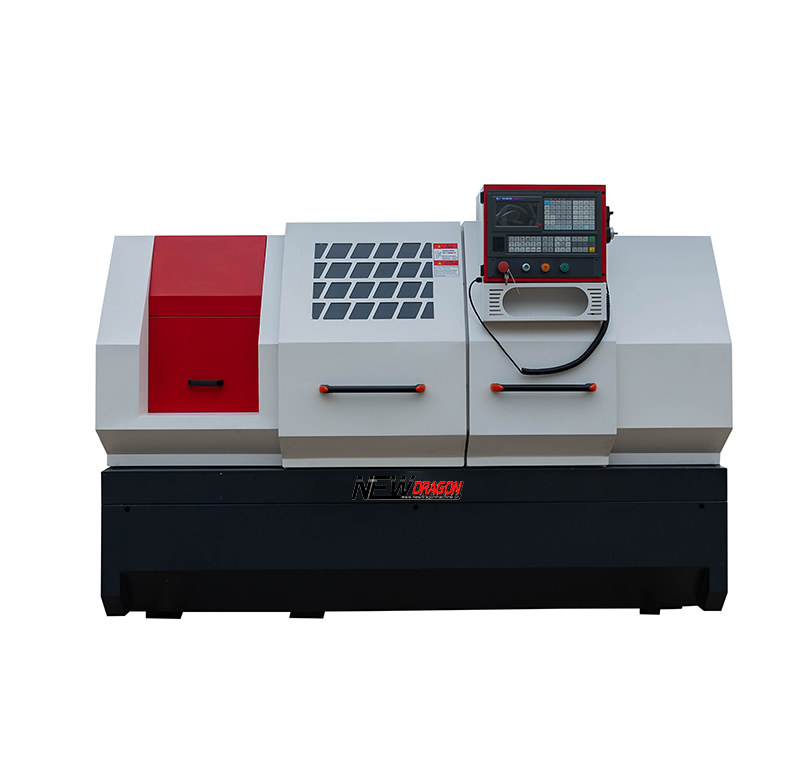

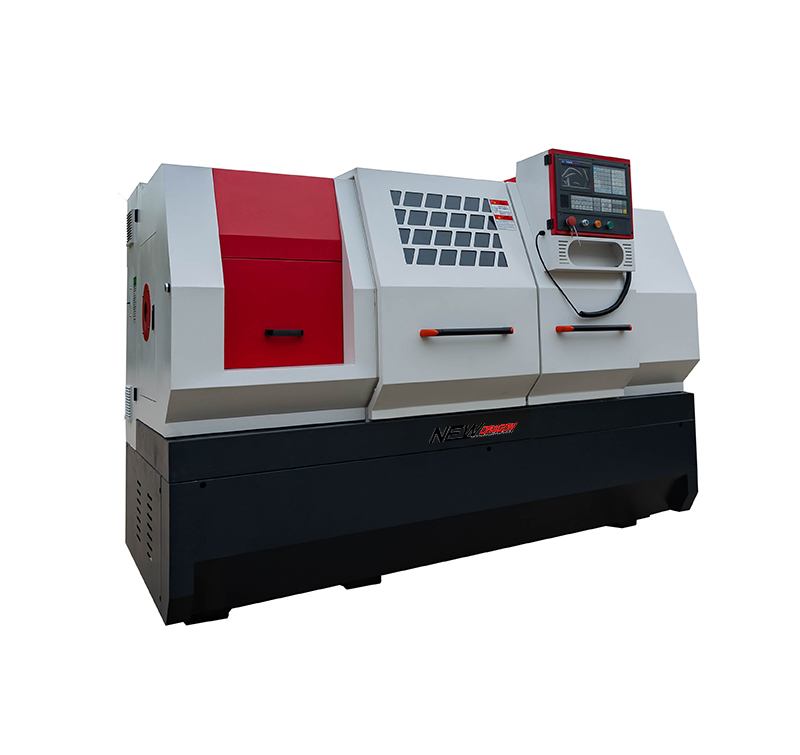

Features:
The bed width 360mm and the bed and stand casting together.
The Surface of the bedways is supersonic frequency hardened and precision grinding.
Variable speed or 2 steps gears headstock,spindle bore standard 52mm and opthional 80mm.
Kinds of appearance, contral system integrated stand can be chosen.
|
MODEL |
CK6136 |
CK6140 |
|
Max. swing over bed |
360mm |
400mm |
|
Max. swing over cross slide |
190mm |
210mm |
|
Center distance |
750/1000/1500mm |
750/1000/1500mm |
|
Bed width |
360mm |
360mm |
|
Spindle hole |
52mm |
52mm |
|
Spindle nose |
ISO-A2-6 |
ISO-A2-6 |
|
Spindle speed |
250-750/500-1500 OR 250-2500rpm |
|
|
Spindle speed steps |
Manual 3 steps OR Variable |
|
|
Chuck size |
200mm |
200mm |
|
X/Z axis rapid travel speed |
5000/6000mm/min |
5000/6000mm/min |
|
X/Z axis cutting travel speed |
1-6000mm/min |
1-6000mm/min |
|
X/Z axis servo motor torque |
4/6 NM |
4/6 NM |
|
Max. travel of cross slide |
200mm |
23mm |
|

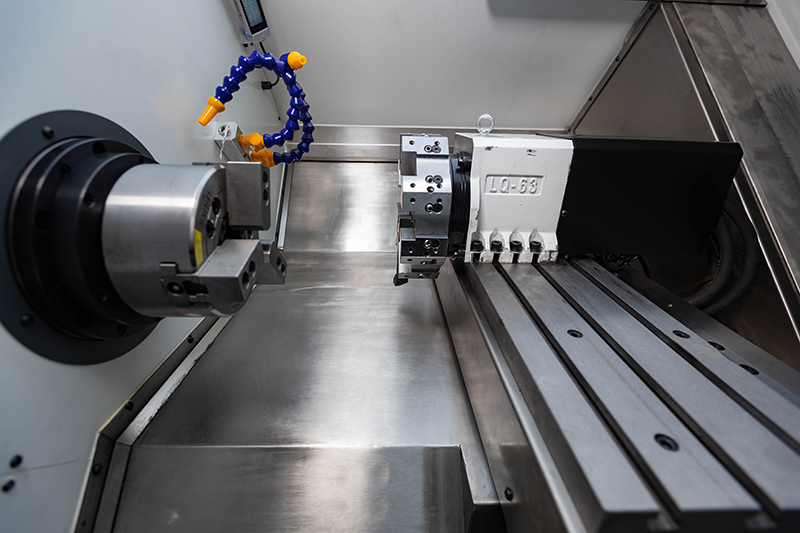

Number of tool post |
Vertical 4 |
Vertical 4 |
|
Max. size of toolshank |
20*20mm |
20*20mm |
|
Positioning accuracy |
0.01mm |
0.01mm |
|
Repeat positioning accuracy |
0.005mm |
0.005mm |
|
The min.unit set |
0.001mm |
0.001mm |
|
Dia.of tailstock sleeve |
65mm |
65mm |
|
Taper of tailstock sleeve |
MT4 |
MT4 |
|
Max. travel of tailstock |
140mm |
140mm |
|
Main drive motor |
5.5KW |
5.5KW |
|
Coolant pump motor |
0.12KW |
0.12KW |
|
L*W*H/Center distance(750mm) |
2150*1400*1700mm |
2150*1400*1700mm |
|
L*W*H/Center distance(1000mm) |
2400*1400*1700mm |
2400*1400*1700mm |
|
L*W*H/Center distance(1500mm) |
2900*1400*1700mm |
2900*1400*1700mm |
|
N.W./Center distance(750mm) |
1450kg |
1500kg |
|
N.W./Center distance(1000mm) |
1600kg |
1650kg |
|
N.W./Center distance(1500mm) |
1900kg |
1950kg |
STANDARD ACCESSORIES
GSK 980TB3i servo control system
Work lamp
3-jaw chuck
Paddings
Coolant system
Standard safety cover
One set tools& tool box
Dead center and center sleeve
Optional accessories
GSK,KND,SIEMENS,FANUC control system
Spindle bore82mm
Bed width 400mm
Main servo motor
Big 3-jaw and 4-jaw chuck
Pneumatic chuck
Hydraulic chuck
Hydraulic 8position turret
Face plate
Steady rest & follow rest
Live center MT5
Power drilling and milling head
