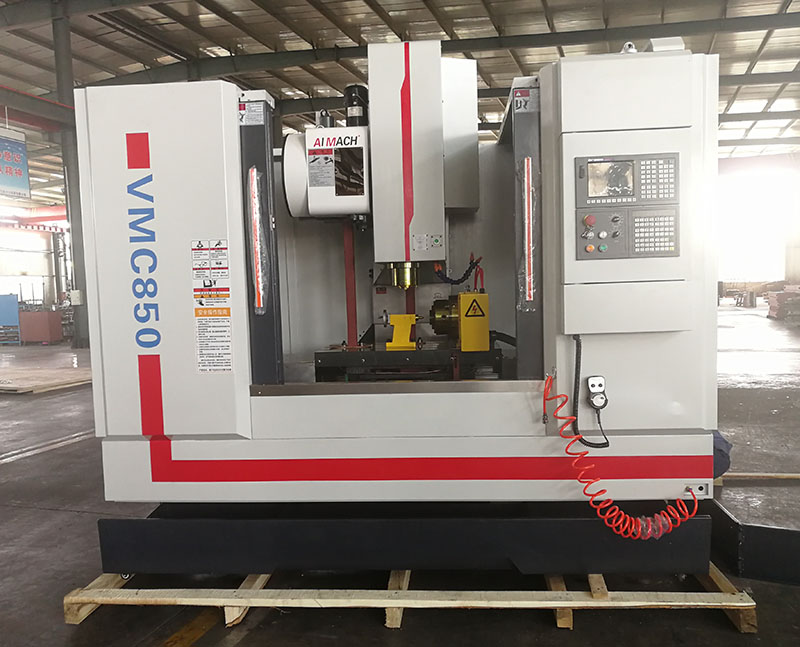

VMC850 high quality cnc milling machine VMC machine center
Features:
Taiwan spindle BT40
Taiwan Hiwin or PMI linear guideway
24pcs disc-type ATC
|
Specificaiton
|
Model VMC850
|
|
Worktable size
|
1000×500mm
|
|
X axis travel
|
800mm
|
|
Y axis travel
|
500mm
|
|
Z axis travel
|
500mm
|
|
Spindle motor
|
7.5kw
|
|
Spindle range
|
80-8000rpm
|
|
Spindel taper
|
BT40
|
|
Spindle nose to worktable surface
|
150-650mm
|
|
Spindle center to column surface
|
550mm
|
|
ATC type
|
Disc type
|
|
Magazine capacity
|
BT40/34pcs
|
|
Max. tool dia.
|
80mm
|
|
Max. tool length
|
300mm
|
|
Max. tool weight
|
7.5kg
|
|
Tool changing time
|
2.5 sec.
|
|
Electrical power
|
10KVA
|
|
Air pressure requirement
|
5-7kgf/cm²
|
|
Positioning accuracy
|
0.01mm
|
|
Machine weight
|
5300kg
|
|
Over size(L*W*H)
|
2800×2700×2560mm
|
