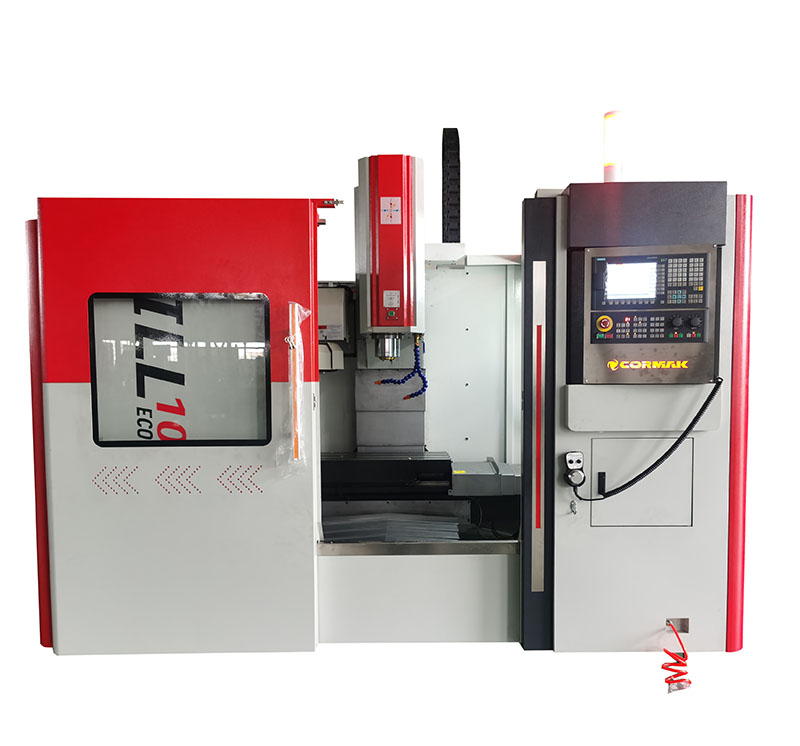

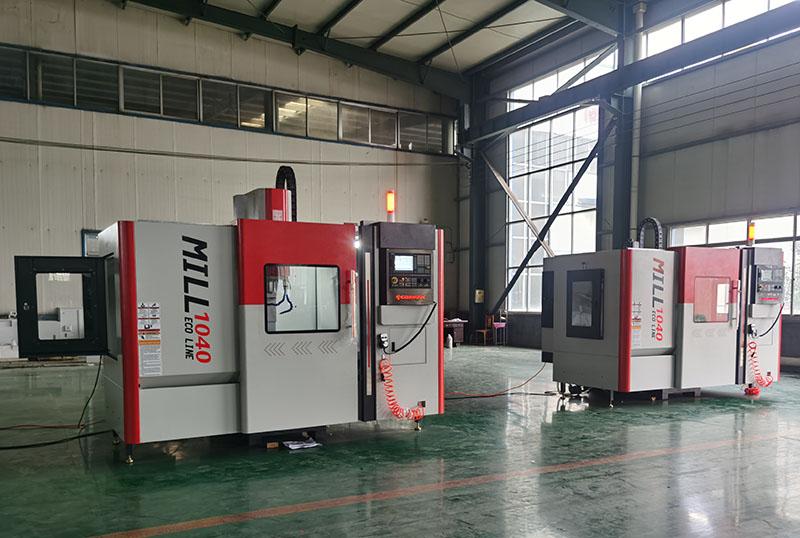

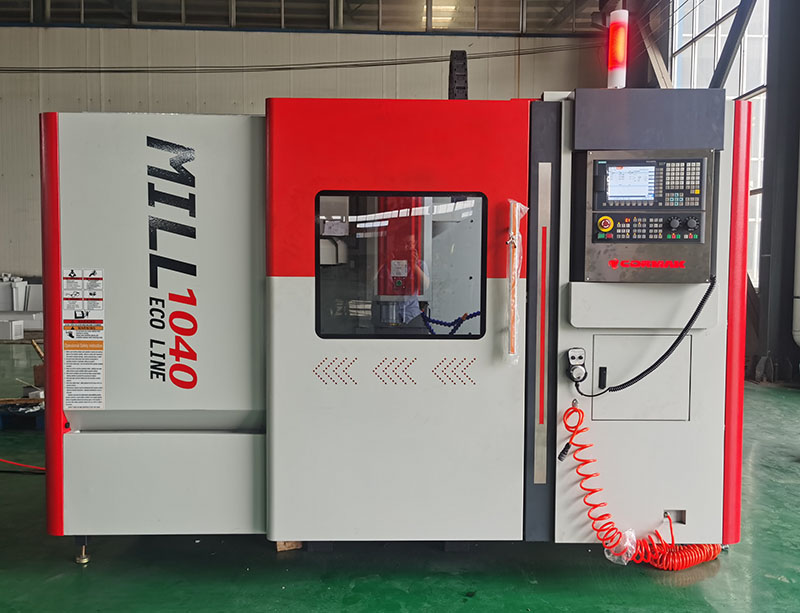

VMC1040 high quality cnc milling machine VMC machine center
|
Specification
|
VMC1040
|
|
Worktable
|
|
|
Worktable size(LxW)
|
1000x400mm
|
|
T-slot (NxWx D)
|
3×18×115
|
|
Travel
|
|
|
X/Y/Z axis travel
|
1000/400/500mm
|
|
Machine range
|
|
|
Distance from spindle center to column
|
485mm
|
|
Distance from spindle nose to worktable surface
|
125~625mm
|
|
Spindle
|
|
|
Spindle taper
|
BT40
|
|
Spindle power
|
5.5kw
|
|
Max.spindle speed
|
8000rpm
|
|
Feed(direct drive)
|
|
|
Max.feed speed
|
1~5000mm/min
|
|
Rapid feed speed(X/Y/Z)
|
32/32/24m/min
|
|
X/Y/Z axis ball screw
|
R4016
|
|
Tool magazine
|
|
|
Tool magazine capacity
|
16T 24T(Optional)
|
|
Positioning accuracy(National standard)
|
|
|
Positioning accuracy(X/Y/Z)
|
±0.008
|
|
Re-positioning accuracy(X/Y/Z)
|
±0.005
|
|
Machine dimension
|
|
|
LxWxH
|
3000×2200×2500mm
|
|
Max.loading of worktable
|
300kg
|
|
Machine weight
|
4000Kg
|
