Specifications

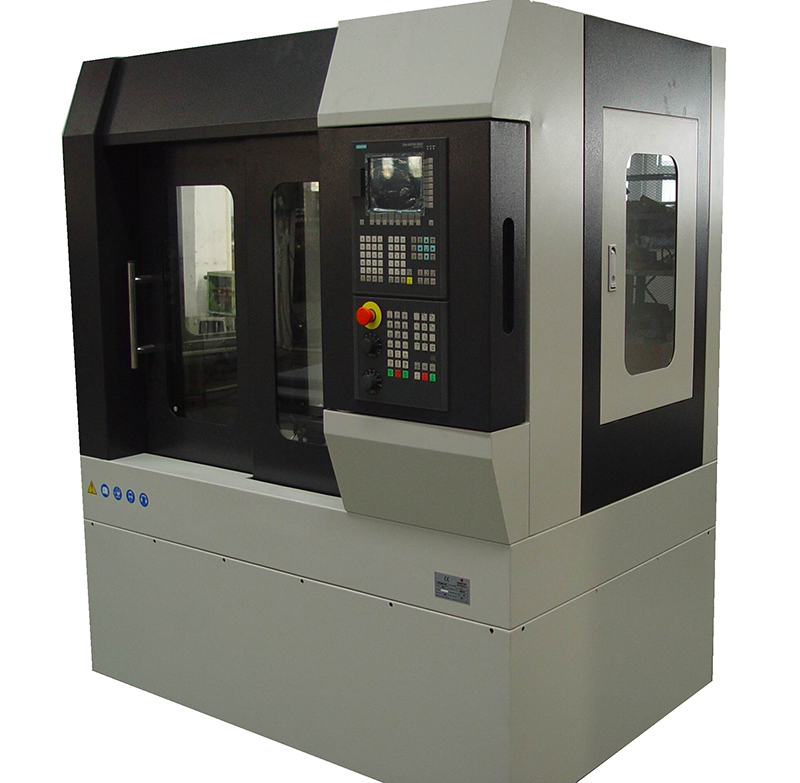

TMK32

worktable size

200×600 mm

spindle speed

 0-6000r/mim

X travel

350 mm

Y travel

 240 mm

Z travel

310 mm

T-slot

 12×45-4

loading weight

  50Kg

Spindle taper

ISO30/R8

spindle axis center to column

268mm

spindle end to surface of worktable

38~348mm

Spindle motor(brushlessmotor)

   1 Kw

Step motor X/Y/Z

6Nm/6Nm/6Nm

quick moving speed X/Y/Z

4000mm/min

feeding speed X/Y/Z

 0~3000mm/min

Precision

0.001 mm

N.W

  580Kg

Dimension of machine

148/130/185 cm
