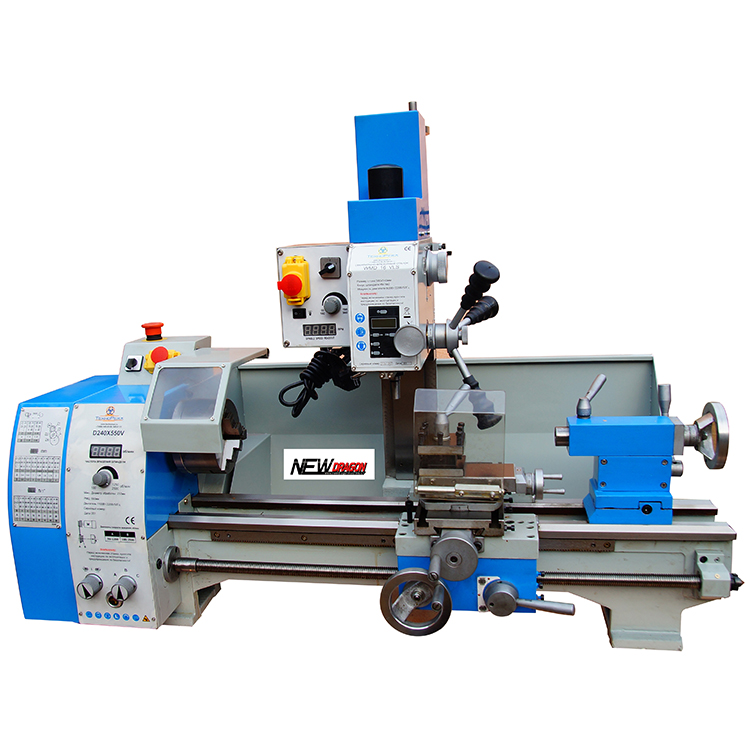

combination variable speed lathe and milling machine TU240X550mm

Combination lathe and milling machine variable speed TU240x550MM

Feature

1.widely used, simple operation, and a wide range of processing
2.Guarantee the concentricity of the spindle is less than 0.009mm

3.Chuck runout accuracy of less than 0.05mm

4.Strong power, maintenance-free DC motor
5.After quenching and precision grinding of cast iron bed
6.quick locking tailstock

7.spindle speed readout

Model	TU240
Max. swing over bed	250mm
Distance between centers	550mm
Swing over cross slide	150mm
Width of bed	135mm
Taper of spindle bore	MT4
Spindle bore	26mm
Range of spindle speeds	50-2500rpm
Range of longitudinal feed	0.07-0.40mm/r
Range of inch threads	8-56TPI
Range of metric threads	0.2-4mm
Taper of tailstock quill	MT2
Motor power	1100W
Drilling & Milling Head
Max.drilling capacity	Max.φ16mm
Milling cap.of cutter head	Max.52mm
Milling cap.of end mill cutter	Max.16mm
Taper of spindle bore	MT2
Sleeve travel	52mm
T-slot size	10mm
Range of spindle speeds	50-3000rpm
Max.distance spindle to table	280mm
Working range	175mm
Motor power	600W
Packing dimensions(LWH)	1200×580×1060mm
Net weight	180kg
