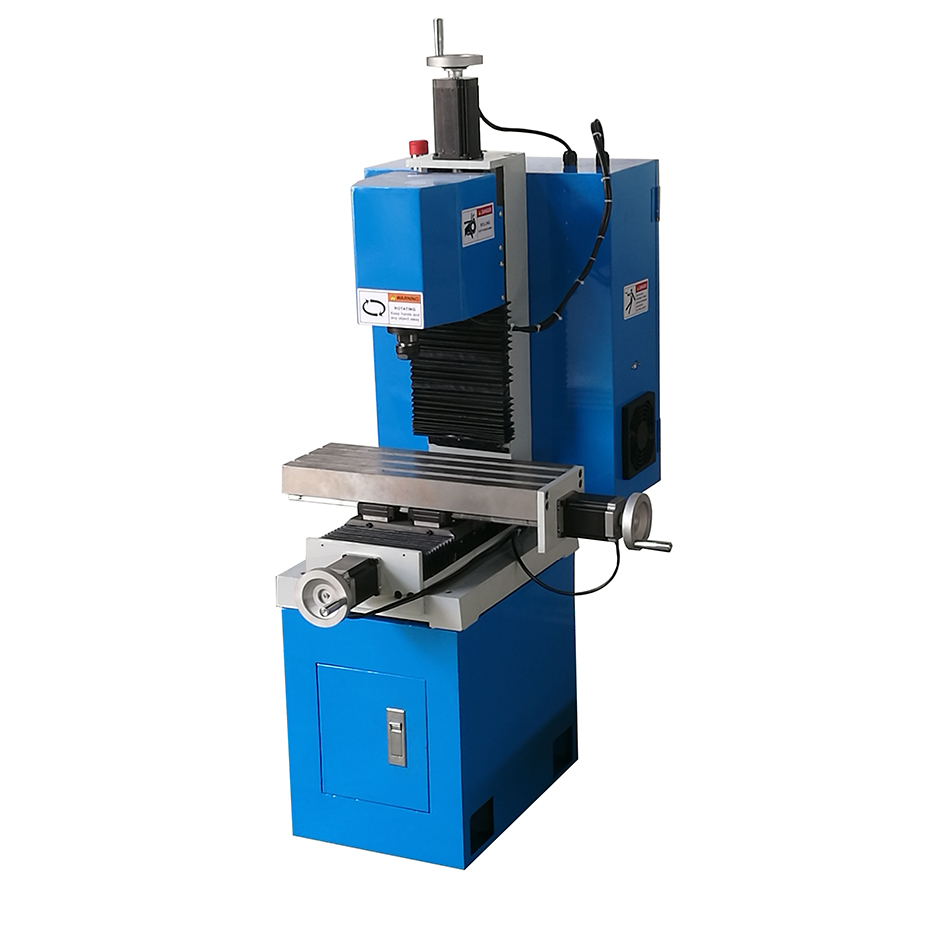

mini metal cnc milling drilling machine TMK13CNC
Feature
1.Small size and cheap price.
2.Low noise and high precision.
3.Suitable for soft metal material processing.
4.Easy operation by P.C.
5.Popular for education training and mould machining.
6.Best choice for hobby users.
Specification
|
Max drilling capacity |
13mm |
|
Max. milling capacity |
13mm |
|
Spindle speed |
3000rpm |
|
Spindle center to column distance |
189mm |
|
Spindle nose to table distance |
205mm |
|
Spindle taper |
ER20 |
|
T-slot |
12mm |
|
Worktable size |
400X140mm |
|
X axis travel |
220mm |
|
Y axis travel |
120mm |
|
Z axis travel |
200mm |
|
Main motor power |
400W |
|
Main motor type |
Brushless motor:0-5V analog speed regulation |
|
Feeding motor torque N.m |
2.6/2.6/3.2N.m |
|
Feed motor type |
Stepper motor with open loop |
|
N.W. |
590x590x780mm |
|
Packing size |
90kg |
