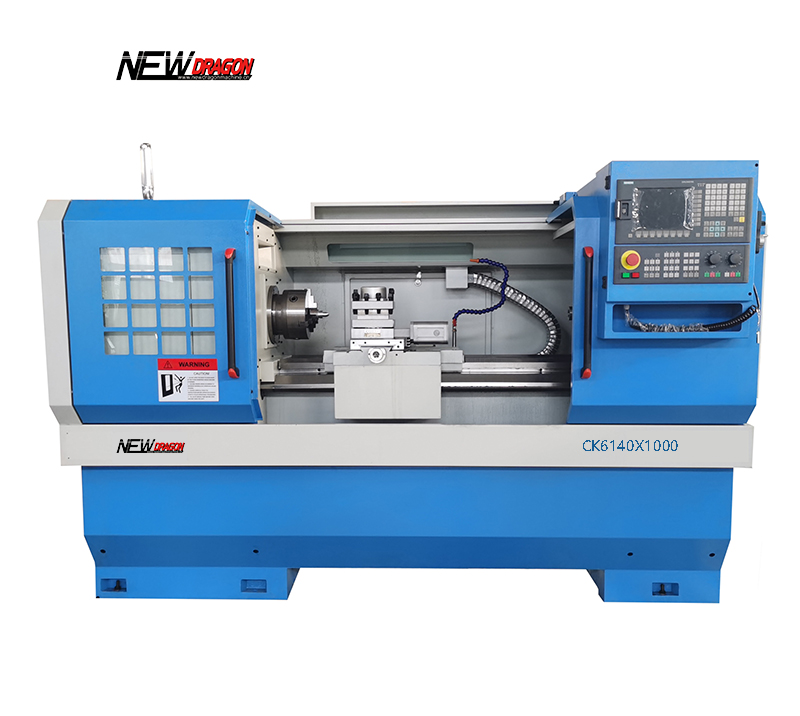

Flat Bed Horizontal CNC Lathe CK6140/CK6136
Features:
Model CJK Mechanical gear shifts as optional
Adaptable to various control systems such as GSK, Fanuc, Siemens etc.
Different apprearance shaps such as square, circular arc and so on.
Optimized guid rail structure by double triangles.
Steady cast iron feed
|
pecifications |
CK6136/CK6140 |
|
ITEM |
TECHNICAL DATA |
|
Machining capacity |
|
|
Max.swing over bed |
360mm/400mm |
|
Max.swing over cross slide |
190mm/220mm |
|
Max.length of workpiece |
500/750/1000/1500mm |
|
Width of bed |
330mm |
|
Spindle |
|
|
Spindle speed range |
150-2500rpm |
|
spindle bore |
60mm |
|
spindle nose |
A2-6 |
|
Taper of spindle bore |
MT6 |
|
Chuck diameter |
200mm/250mm |
|
Slide stroke |
|
|
X-axis travel |
250mm |
|
Z-axis travel |
500/750/1000/1500mm |
|
X-axis rapid moving |
6m/min |
|
z-axis rapid moving |
8m/min |
|
Turret |
|
|
Tool station number |
4 or 6 or 8 |
|
Max.section of tool |
20x20mm, 25x25mm |
|
Tailstock sleeve |
|
|
External diameter |
55mm |
|
Max.travel |
120mm |
|
Taper of bore |
MT4 |
|
Motor |
|
|
Main motor power |
4KW/5.5KW/7.5KW |
|
Coolant pump power |
120W |
|
Machine dimension |
|
|
Overall dimension |
2130/2520/3050*1400*1680mm |
|
Net weight |
1500/1700/2100kg |
