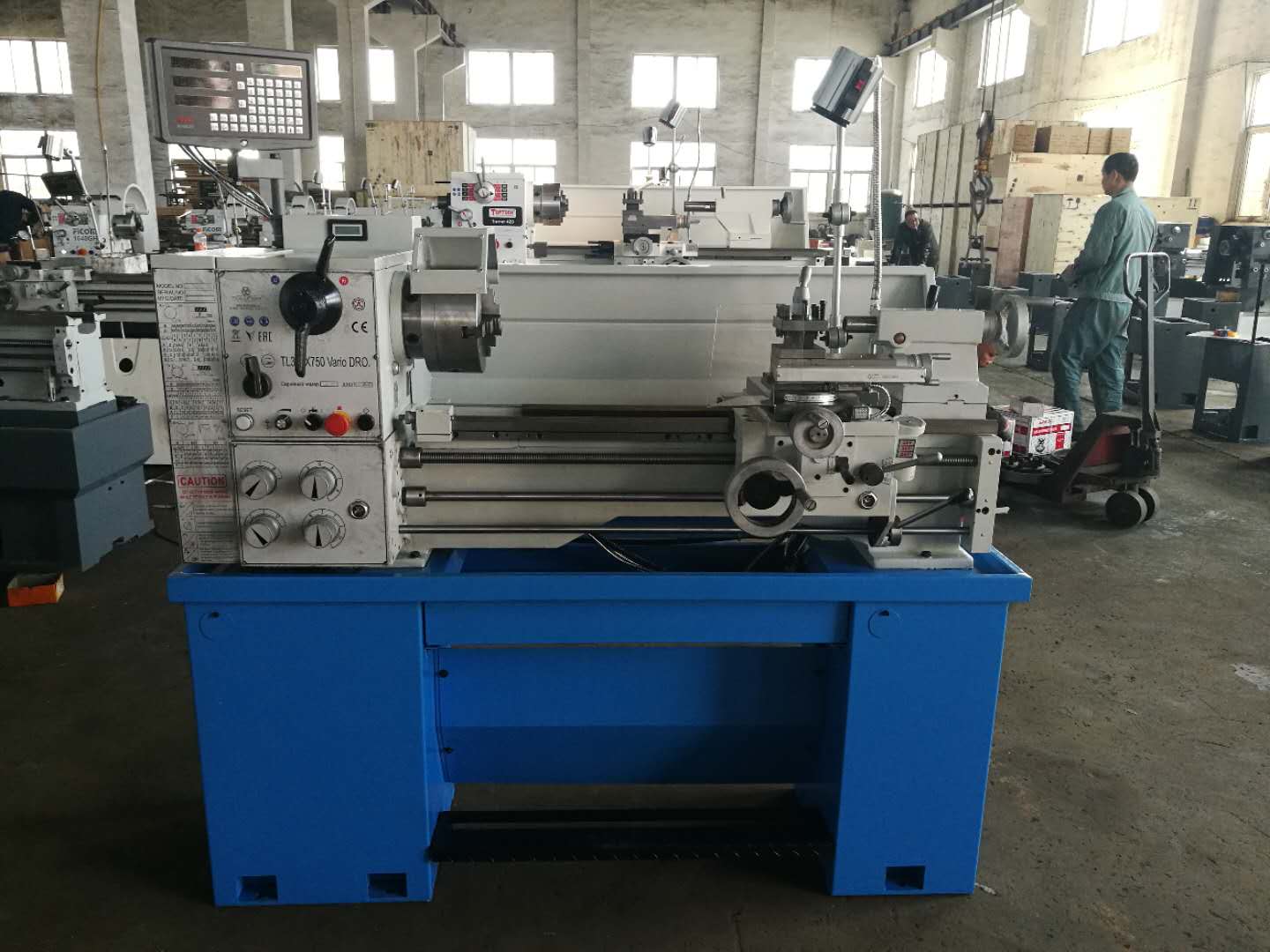

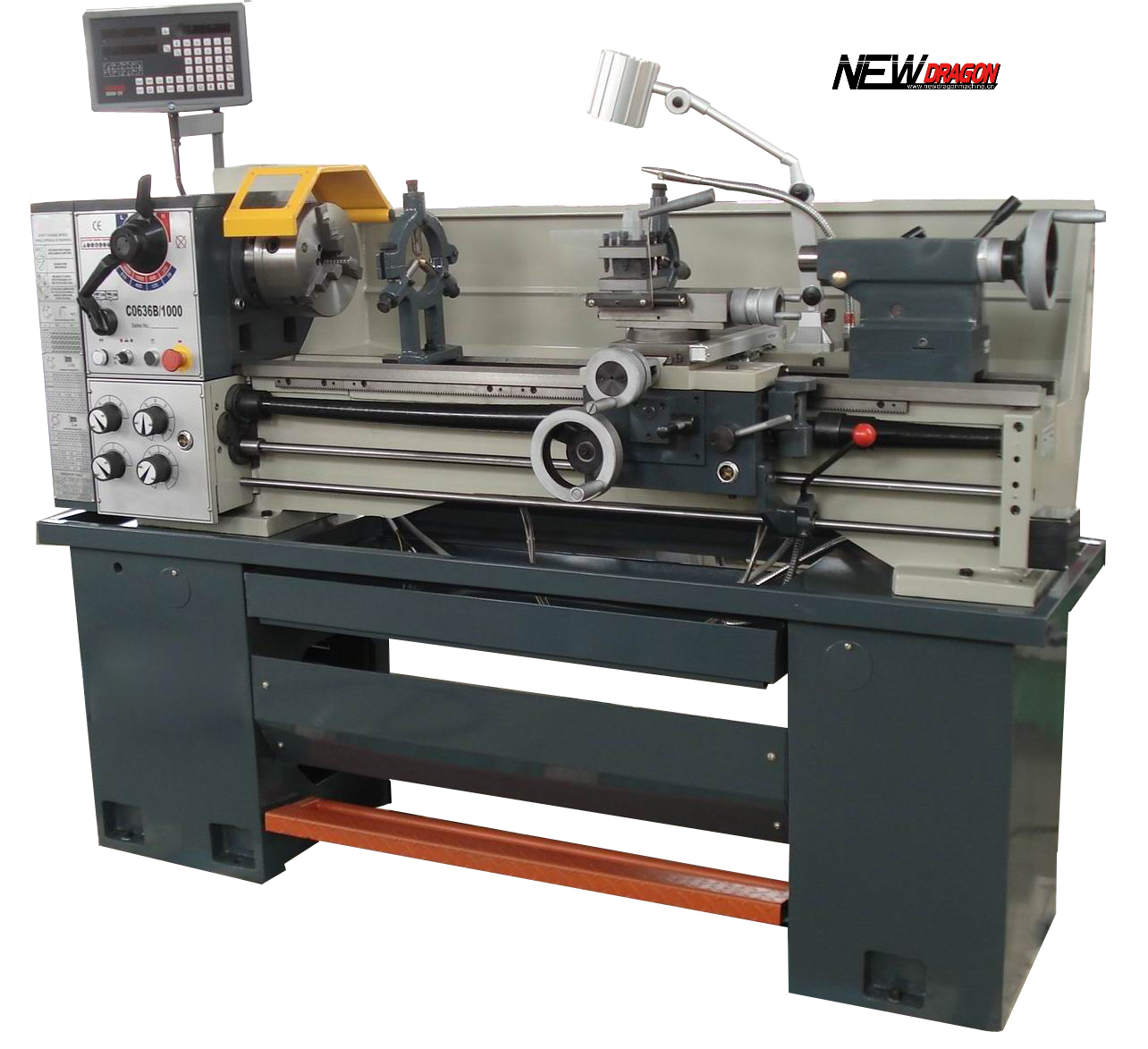

Model

TL330A

TL360A

Max swing over bed

330mm

360mm

Max.swing over carriage

198mm

224mm

Max.length of work pieces

210mm

250mm

Center height

166mm

179mm

Admits between

550mm/750mm/1000mm

Bed width

187mm

Bed length

1248mm 1655mm  1363mm

Spindle bore

38mm&51mm

Spindle nose

D1-4" or D1-5"

Taper in sleeve

NO.3 Morse

Speeds number

8 or 16 (pole changeable motor) (optional)

Speeds range

70-2000r.p.m.or35-2000r.p.m.(2 speedmotor)

Cross slide travel

170mm

Compound rest travel

95mm

Lead screw thread

8T.P.I.or 3mm or 4mm

Feed rod diameter

19mm

Cutting tool max section

16mm *16mm

Threads imperial pitches

36Nos.8-112T.P.I.or (34Nos.4-56T.P.I.)

Threads metric pitches

28Nos.0.2-5mm pitch or (26Nos.0.4-7mm pitch)

Longitudinal feeds imperial

36Nos.0.0019-0.0273"/Rev.or (32Nos.0.002-0.548"/Rev)

Longitudinal feeds metric

36Nos.0.050-0.696"/Rev.or (32Nos.0.052-0.392mm/Rev)

Cross feeds imperial

36Nos.0.0006-0.0094"/Rev.or (32Nos.0.007-0.0187"/Rev)

Cross feeds metric

36Nos.0.013-0.188"/Rev.or (32Nos.0.014-0.380mm/Rev)

Cross feeds metric

1.5KW 3PH or 1PH

Standard accessories
