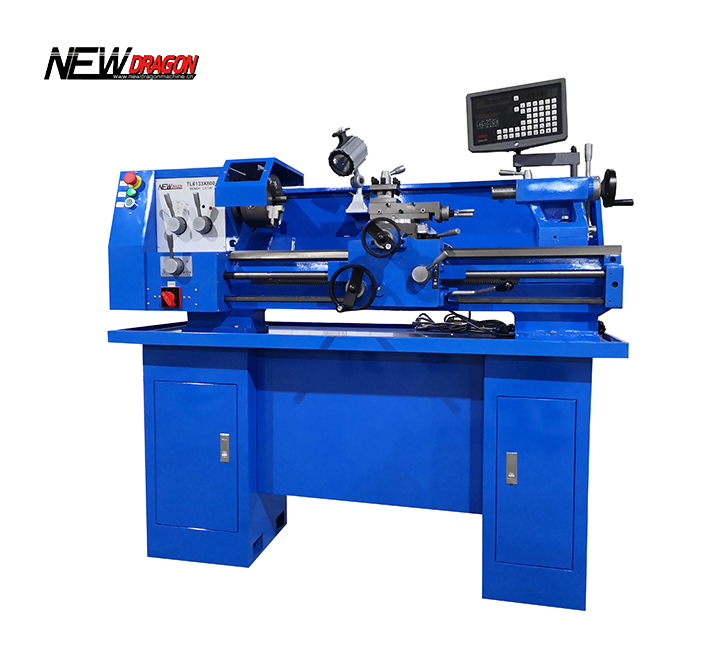

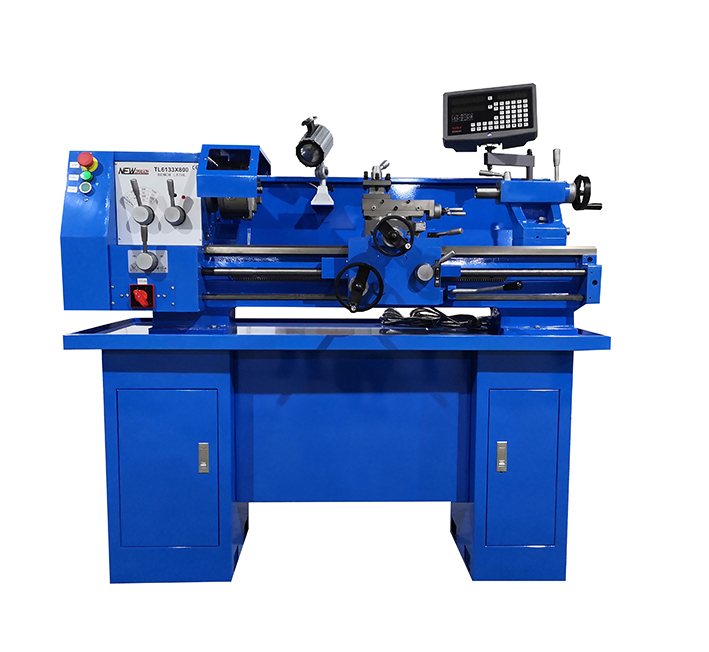

Small metal Lathe TL6133A(CQ6133)x800mm
Feature
1.widely used, simple operation, and a wide range of processing
2.Guarantee the concentricity of the spindle is less than 0.009mm
3.Chuck runout accuracy of less than 0.05mm
4.Strong power, maintenance-free DC motor
5.After quenching and precision grinding of cast iron bed
6.High precision, quenching spindle
Application
Suitable for turnings of metal, wood, jade, etc.
Ideal for use in labs, workshops, engineering and education.
Can be turned within foreign aid, turning thread, turning taper and so on.
Technical Data
|
Max. Swing over bed |
330mm |
|
Max. Length of work piece |
800 mm |
|
Max. Swing diameter over tool post |
220mm |
|
Spindle Bore |
38mm |
|
Spindle Taper |
MT.5# |
|
Max Lateral Stroke over tool post |
150mm |
|
Max Longitudinal stroke over tool post |
100mm |
|
Metric Thread kinds on processing |
17 |
|
Inch Thread kinds on processing |
20 |
|
Metric thread pitch on processing |
0.5-4 mm |
|
Inch thread pitch on processing |
9-40 1/N” |
|
Longitudinal–feed on spindle tool post |
0.135-1.80mm/r |
|
Max. stroke of tail stock sleeve |
70mm |
|
Tail stock sleeve taper |
MT.3# |
|
Spindle speeds available |
12 |
|
Spindle speeds range |
60-1650mm/r |
|
Electromotor |
1.1KW/220V/ 50HZ (or400V/50HZ) |
