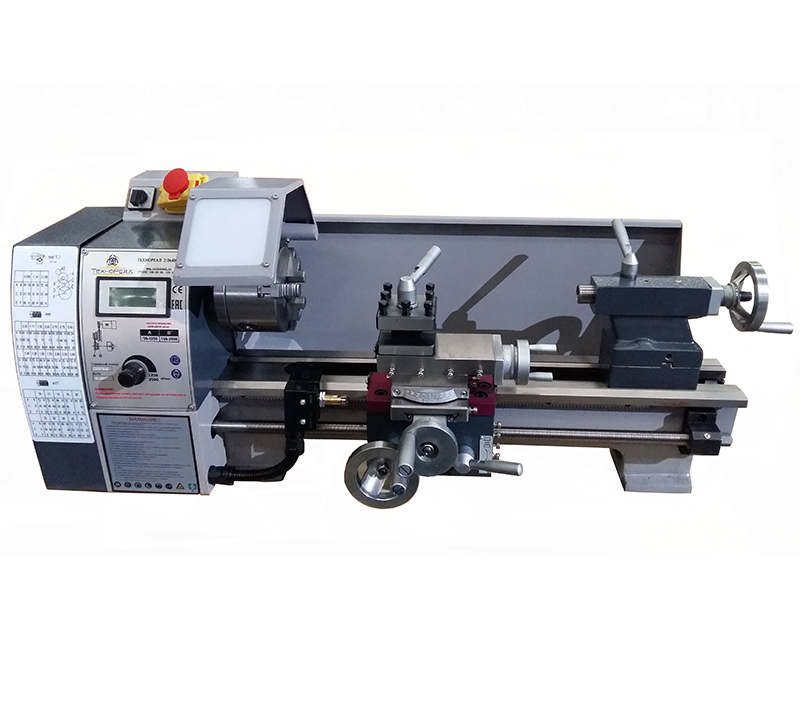

TL210X400V veriable speed mini lathe machine
1.widely used, simple operation, and a wide range of processing
2.Guarantee the concentricity of the spindle is less than 0.009mm
3.Chuck runout accuracy of less than 0.05mm
4.Strong power, maintenance-free DC motor
5.After quenching and precision grinding of cast iron bed
6.High precision, quenching spindle
Technical data
|
Model No. |
TL-210×400 V |
|
|
Distance between centers |
400mm |
|
|
Swing over bed |
210mm |
|
|
Width of bed |
100mm |
|
|
Taper of spindle bore |
MT3 |
|
|
Spindle bore |
21mm |
|
|
Spindle speeds |
50-2500rpm |
|
|
Longitudinal feeds |
0.08-0.16mm/r |
|
|
Imperial threads |
10-44TPI |
|
|
Metric threads |
0.5-3mm |
|
|
Top slide travel |
55mm |
|
|
Cross slide travel |
75mm |
|
|
Tailstock quill travel |
65mm |
|
|
Taper of tailstock quill |
MT2 |
|
|
Max.tool dimension |
10mm |
|
|
Motor |
450W |
|
|
Packing size |
910×480×470mm |
|
|
Net weight |
76kg/96kg |
Standard accessories
Speed display
3-jaw chuck 100mm
Splash guard
Chip tray
Safety chuck guard
Dead centers MT2/MT3
Change gear kits
Operating tools
Optional accessories
4-jaw chuck 100mm
Backplate for 4-jaw chuck
Follow rest
Steady rest
Face plate
Stand
Live center MT2
Turning tools
Quick change tool post
