CJM360 (TL360M)

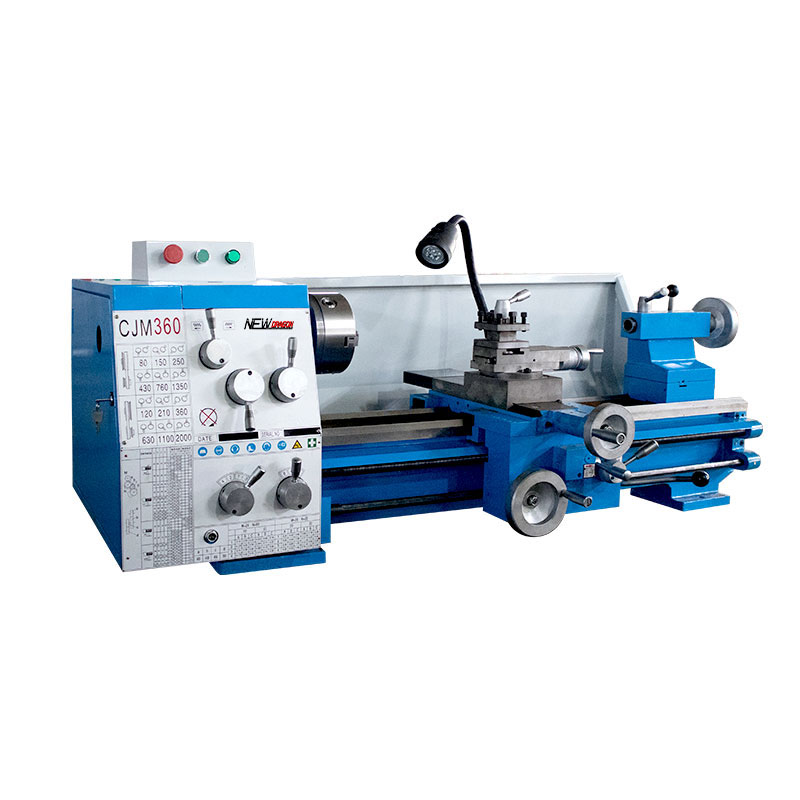

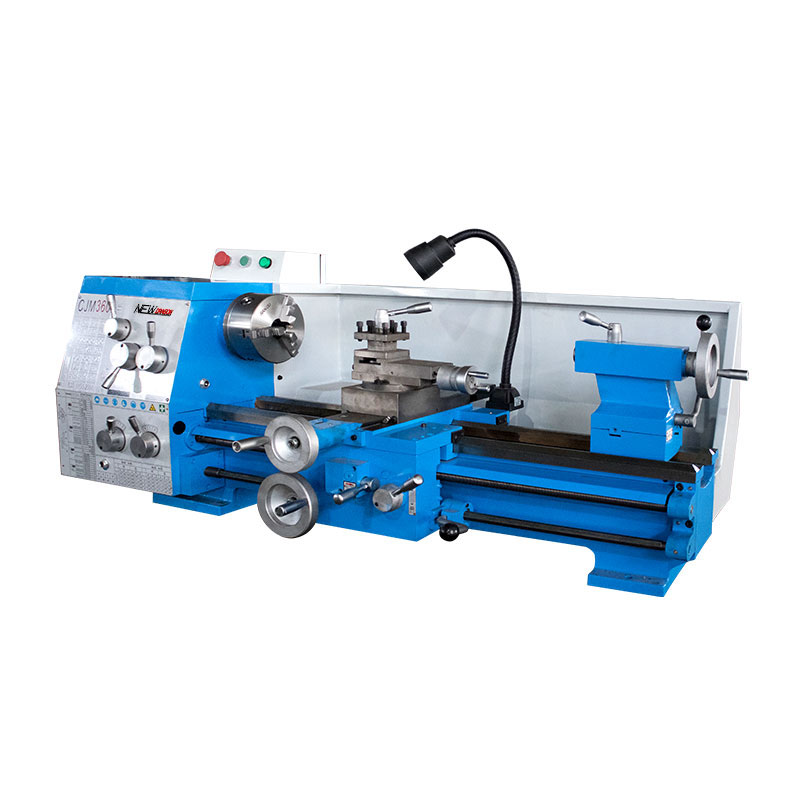

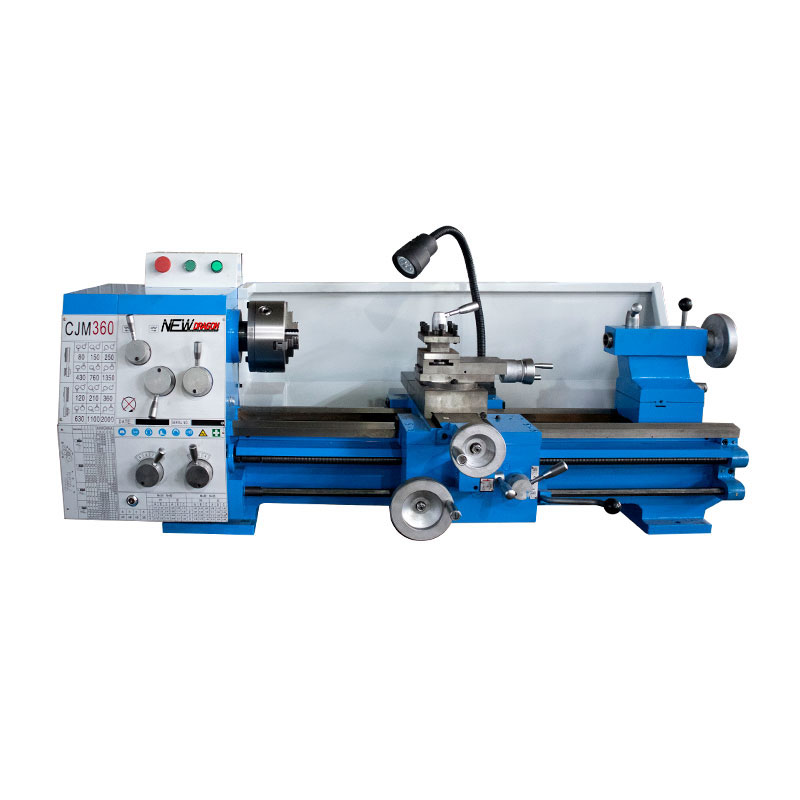

Bench Metal Lathe Machine CJM360(TL360M) For Processing Metal Machinery
Features:
1. Precision ground and hardened bed ways. 2. The spindle is supported with precision roller bearings. 3. Headstock gears are made of high quality steel, ground and hardened. 4. Easy operating speed change levers. 5. Spindle speed range 60-1600rpm. 6. Two different lengths of bed are available. 7. With or without cabinet according to requirement.



Specification
CJM360(TL360M)
Max. swing diameter over bed
360mm
Max. length of work piece
600/750mm
Max. swing diameter over middle carriage
200 mm
Spindle bore
40mm
Taper of hole in spindle
MT5
Max. cross stroke over tool carrier
160mm
Max. longitudinal stroke over tool carrier
100mm
Metric thread kinds
22
Metric thread pitch
0.20-7mm
Inch thread kinds
45
Inch thread pitch
21/2-48 1/n″
Modulus thread kinds on processing
21
Modulus thread pitch on processing
0.20-3.5mm
Diametrical thread kinds on processing
31
Diametrical thread pitch on processing
8-120 1/n″
Longitudinal feed on spindle tool carrier
0.10-1.40mm/r
Cross feed on spindle tool carrier
0.045-0.60mm/r
Max stroke on taper hole
80mm
Taper of Tailstock
MT3
Step of spindle speed
12
Range of spindle speed
60-1600r/mim
N.W.
420kgs
G.W.
470kgs
Overall size(L×W×H)
1580×785×1390mm
Packing size(L×W×H)
1600×800×1500mm
Standard Accessories:
· 3-jaw chuck,
·Dead center
· Chasing dial indicator
· Change gears set
· Splash guard
· Oil gun
· Tool box and tools


Optional Accessories:

· 4-jaw chuck
· Machine stand
· Face plate
· Steady rest
· Follow rest
· Live center
· Toolpost cover
· Chuck guard

· Leadscrew guard
