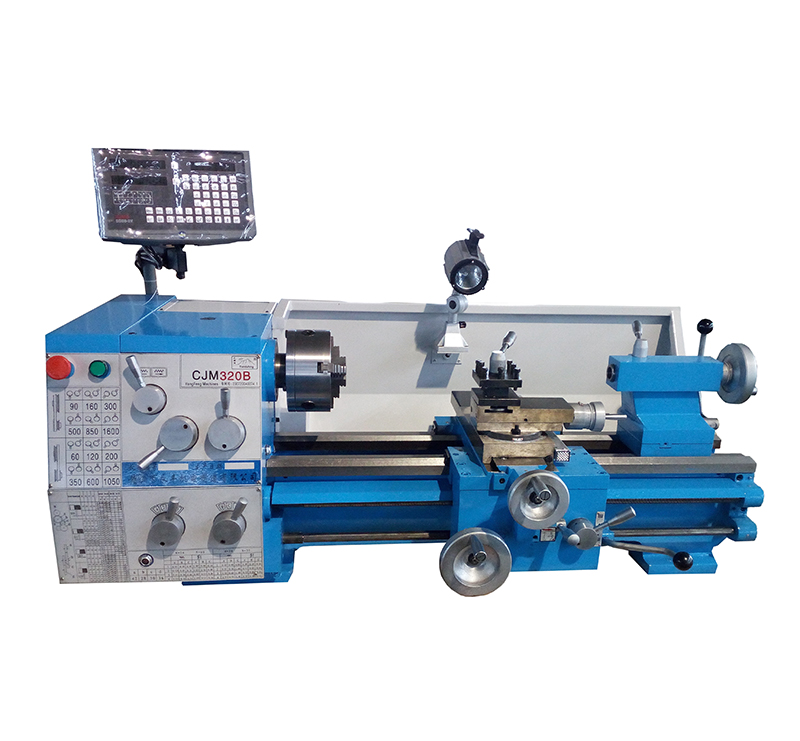

Product feature

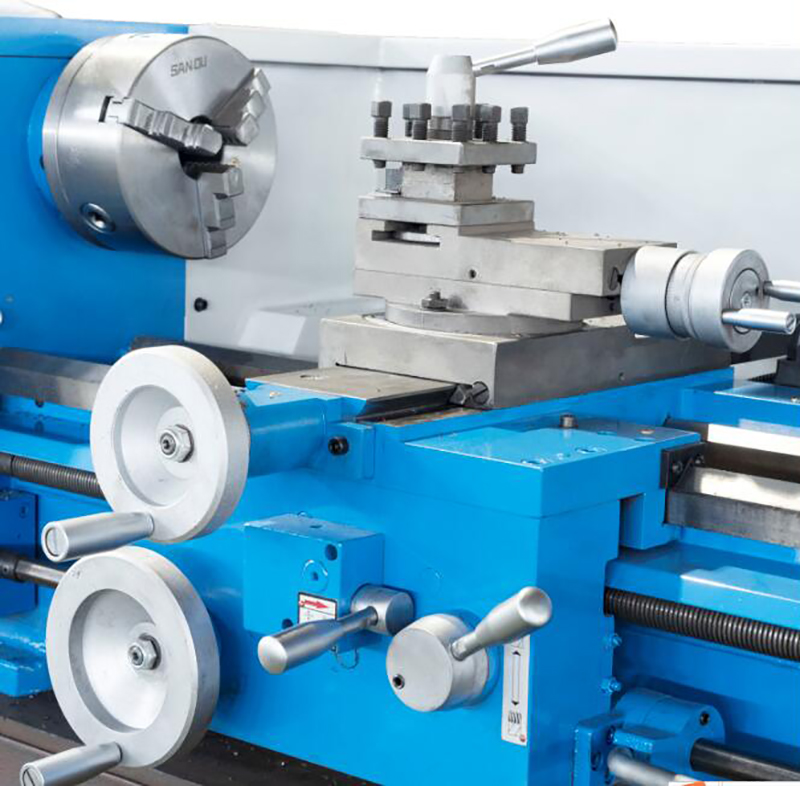

1. Precision ground and hardened bed ways.
2.The spindle is supported with precision roller bearings.
3.Headstock gears are made of high quality steel,ground and hardend.
4.Easy operating gear box has various feeds and thread cutting function.
5.Spindle speed range 60-1600rpm.
6.It can cut diametral threads and module threads.
Technical Specifications
|
Model |
TL320MB |
|
Swing over bed |
320mm |
|
Distance between centers |
600/750mm |
|
Swing over worktable |
200mm |
|
Spindle bore |
38mm |
|
Width of bed |
180mm |
|
Headstock taper |
MT5 |
|
Y-axis working travel |
160mm |
|
X-axis working travel of toolpost slide |
100mm |
|
Thread kinds on processing |
22 |
|
Thread pitch on processing |
0.2-7mm |
|
Module thread kinds on processing |
21 |
|
Module thread pitch on processing |
0.2-3.5mm |
|
Diametral thread kinds on processing |
31 |
|
Diametral thread pitch on processing |
8-120 1/n" |
|
Longitudinal feed on spindle toolcarrier |
0.1-1.4mm/r |
|
Cross feed on spindle toolcarrier |
0.045-0.6mm/r |
|

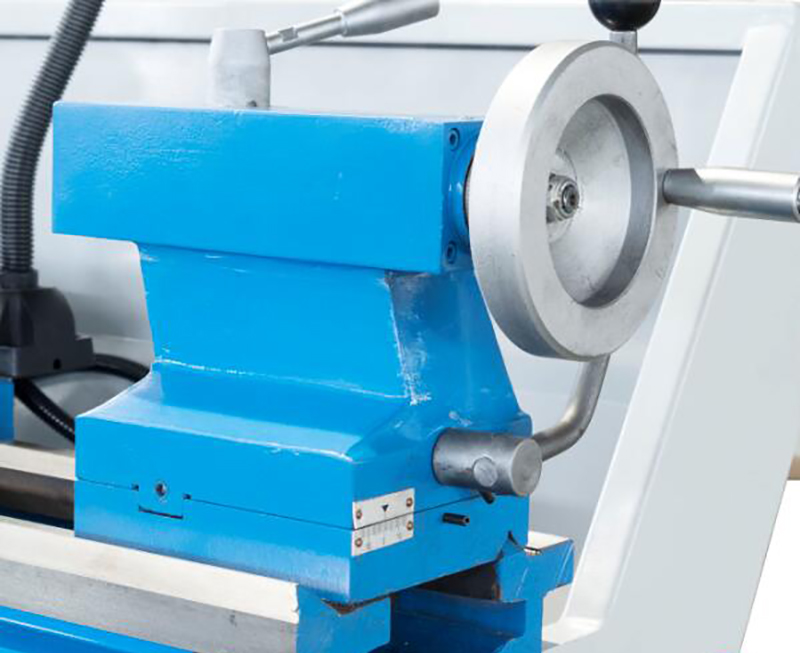

Tail stock quill travel |
80mm |
|
Tail stock taper |
MT3 |
|
Spindle speeds |
12steps 60-1600r/rpm |
|
Motor |
750W(1HP)380V/50HZ |
|
N.W./G.W. |
390/450KG |
|
Overall Dimension |
1370X685X1360mm |
|
Packing size |
1470x770x1650mm |
Standard accessories

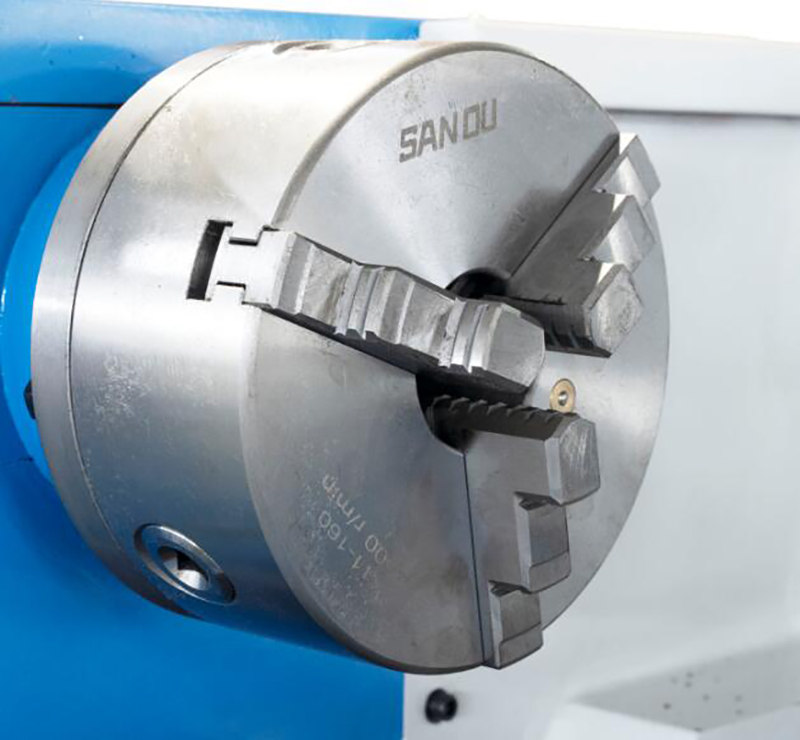

| 3-jaw chuck |
| protection cover for chuck |
| gears |
| wrench |
| tool box |
Optional accessories
| low voltage control |
| micro switches for protection |
| steady rest |
| follow rest |
| 4-jaw chuck with back plate |
| face plate |
| dial thread |
| work lamp |
| coolant system |
| stand and oil tray |
| special gears 8pcs for inch threads |
|
turing tools with inserts 9pcs |
