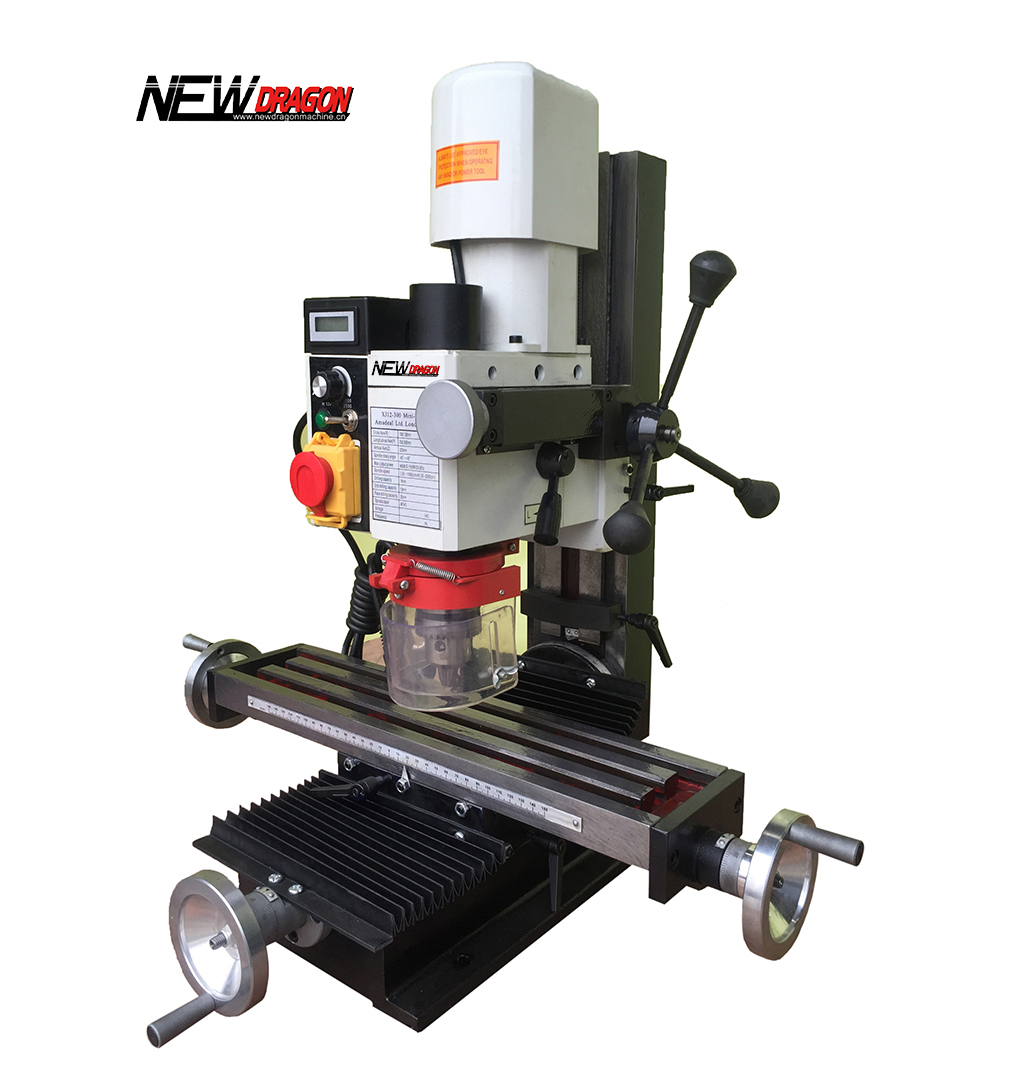

mini variable speed drilling and milling machine
DC motor variable speed powerful
speed digital readout
infinitely precison
high quality PC board
Specification
|
Drilling capacity |
16mm |
|
Max.face mill capacity |
30mm |
|
Max.end mill capacity |
13mm |
|
Spindle stroke |
180mm |
|
Longitudinal travel |
250/300mm |
|
Cross travel |
100/130mm |
|
Spindle rotary angle |
-45°±45° |
|
Working table size |
410/460×112mm |
|
Motor power |
550W |
|
Max.distance spindle to table |
220mm |
|
Spindle taper |
MT3 |
|
Spindle speed |
50-2500RPM |
|
Net weight/Gross weight |
62kg/80kg |
|
Packing size |
570×510×740mm/640×565×720 |
Standard accessories
Speed display
Depth ruler
Arbor MT2/B16,M10
Drawbar MT2/M10
Operating tools
Optional accessories
Stand & chip tray
Keyless drill chuck 3-16mm
ER25/6pcs collet chuck (4-16mm)
End mill 7pcs (4-16mm)
58pcs of clamping kits/M10*11.7mm
Drill chuck 3-16mm
