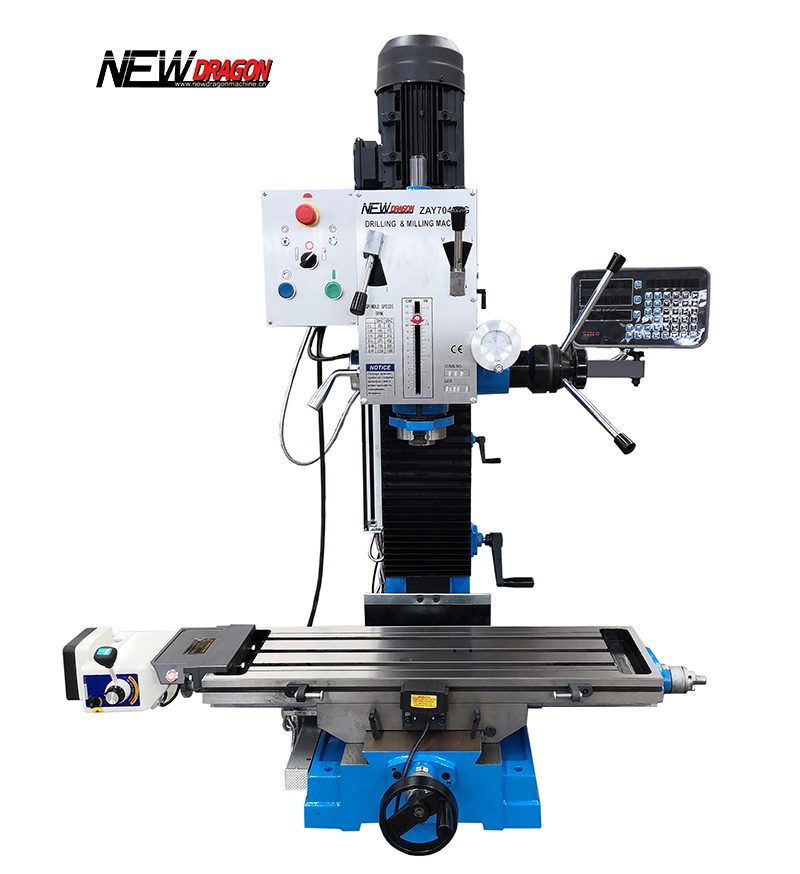

High speed drilling and milling machine ZAY7032FG/ZAY7040FG/ZAY7045FG
Feature
Specification
|
MODEL |
ZAY7032FG |
ZAY7040FG |
ZAY7045FG |
||
|
Drilling capacity |
32mm |
40mm |
45mm |
||
|
Max.face milling capacity |
63mm |
80mm |
80mm |
||
|
Max. End milling capacity |
20mm |
32mm |
32mm |
||
|
Distance from spindle nose to table |
450mm |
450mm |
450mm |
||
|
Min. Distance from spindle axis to column |
260mm |
260mm |
260mm |
||
|
Spindle stroke |
130mm |
130mm |
130mm |
||
|
Swivel angle of headstock (vertical) |
±90° |
±90° |
±90° |
||
|
Spindle taper |
MT3 or R8 |
MT4 or R8 |
MT4 or R8 |
||
|
Steps of spindle speed |
6 |
6 |
6 |
||
|
Range of spindle speed 50HZ |
80-1250 r.p.m |
80-1250 r.p.m |
80-1250 r.p.m |
||
|
Range of spindle speed 60HZ |
95-1500 r.p.m |
95-1500 r.p.m |
95-1500 r.p.m |
||
|
Table size |
800X240mm |
800X240mm |
800X240mm |
||
|
Forward and backward of table |
175mm |
175mm |
175mm |
||
|
Left and right travel of table |
500mm |
500mm |
500mm |
||
|
Power |
0.75KW |
1.1KW |
1.1KW |
||
|
N.W./G.W. |
320kg/370kg |
320kg/370kg |
323kg/373kg |
||
|
Packing size |
770×880×1160mm |
770×880×1160mm |
770×880×1160mm |
||
Standard accessories
1.Draw bar ,2.wedge, 3.allen wrenches, 4.screw driver 5.drill chuck and arbor
Optional accessories
|
Machine vice 125mm, |
depth scale |
|
mill chuck set |
coolant system |
|
58pcs clamping kits |
working lamp |
|
stand |
oil tray, |
|
boring bar |
milling cutter holder with inserts |
|
electric table power feed |
rotary worktable |
