Products > ZAY7032FG/1 ZAY7040FG/1 ZAY7045FG/1

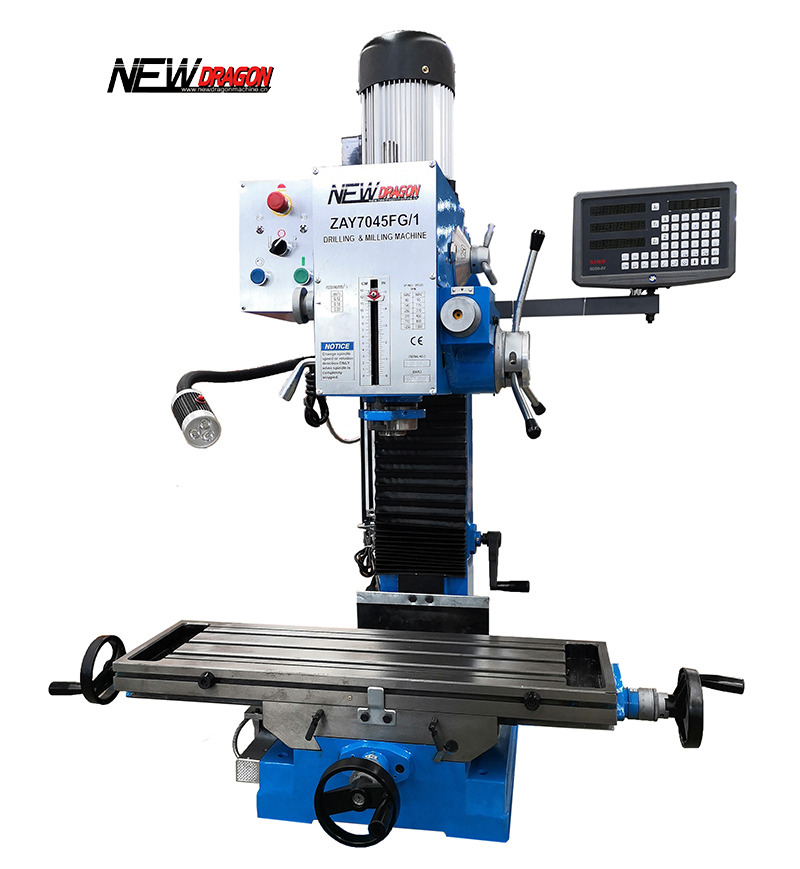

ZAY7032FG/1 ZAY7040FG/1 ZAY7045FG/1

METAL MILLING AND DRILLING MACHINE ZAY7032FG/1,ZAY7040FG/1,ZAY7045FG/1 with spindle auto feeding.


  • Accurate,widely useful gear head millin/drilling machine.
  • Extremely quite opration.
  • High precision grinding spindle.
  • Spindle is supported by high precision taper roller bearing.
  • Gear head enables to change speeds quickly.
  • Head may be tilted right &left.
  • Large square dovetail column.
  • High precision manual fine down feed.
  • Adjustable taper gibs for slideways.
  • Positive locks for table ,head, quill,column.
  • Easy to elevate head by geared crank handle.
  • Positive and easy to read depth gauge.
  • Easy reading chrome finish dial.
  • Tolerance test certificate and test flow chart included.

MODEL

ZAY7032FG/1

ZAY7040FG/1

ZAY7045FG/1

Drilling capacity

32mm

40mm

45mm

Max.face milling capacity

63mm

80mm

80mm

Max. End milling capacity

20mm

32mm

32mm

Distance from spindle nose to table

450mm

450mm

450mm

Min. Distance from spindle axis to column

260mm

260mm

260mm

Spindle stroke

130mm

130mm

130mm

Spindle taper

MT3 or R8

MT4 or R8

MT4 or R8

Steps of spindle speed

6

6

6

Range of spindle speed 50HZ

80-1250 r.p.m

80-1250 r.p.m

80-1250 r.p.m

Range of spindle speed 60HZ

95-1500 r.p.m

95-1500 r.p.m

95-1500 r.p.m

Table size

800X240mm

800X240mm

800X240mm

Forward and backward of table

175mm

175mm

175mm

Left and right travel of table

500mm

500mm

500mm

Power

0.75KW

1.1KW

1.1KW

N.W./G.W.

320kg/370kg

320kg/370kg

323kg/373kg

Packing size

770×880×1160mm

770×880×1160mm

770×880×1160mm


 Standard accessories

1

Draw bar

2

wedge

3

Allen wrenches

4

Screw driver

5

Drill chuck and arbor

Optional accessories

1

Machine vice 125mm

2

Mill chuck set

3

58pcs clamping kits

4

Stand

5

Boring bar

6

Electric table power feed

7

Depth scale

8

Coolant system

9

Working lamp

10

Oil tray

11

Milling cutter holder with inserts

12

Rotary worktable

13

Digital display
