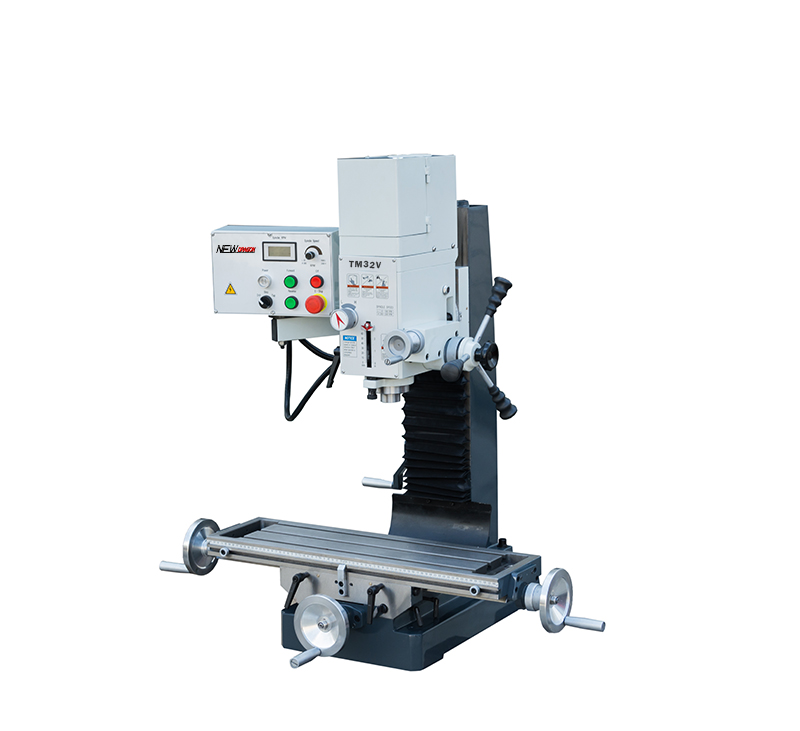

NEW TYPE MINI METAL MILLING MACHINE with brushless motor 1.1KW, belt driven
|
Specification |
TM32V |
|
Max. drilling capacity |
32mm |
|
Max. milling capacity |
16mm |
|
Max.face milling capacity |
63mm |
|
Table size |
700x190mm |
|
Spindle taper |
MT3/R8 |
|
X-axis travel |
410mm |
|
Y-axis travel |
230mm |
|
Z-axis travel |
380mm |
|
Spindle travel |
75mm |
|
T-slot size |
12mm |
|
Spindle speed range |
95-3000rpm |
|
Headstock tilt left and right |
90° |
|
Column size |
150x130x690mm |
|
Base size |
542x340mm |
|
Max. distance from spindle center to column |
214mm |
|
Max. distance from spindle center to table |
400mm |
|
Motor power |
1.1KW |
|
N.W./G.W. |
182/215kg |
OPTIONAL ACCESSORIES:
DRO 3 axis,
Stand and oil tray
End mills Tin-coated 3-20mm set
auto feeder for X table
tool clamping kits 58pcs
ER25 milling chuck sets
