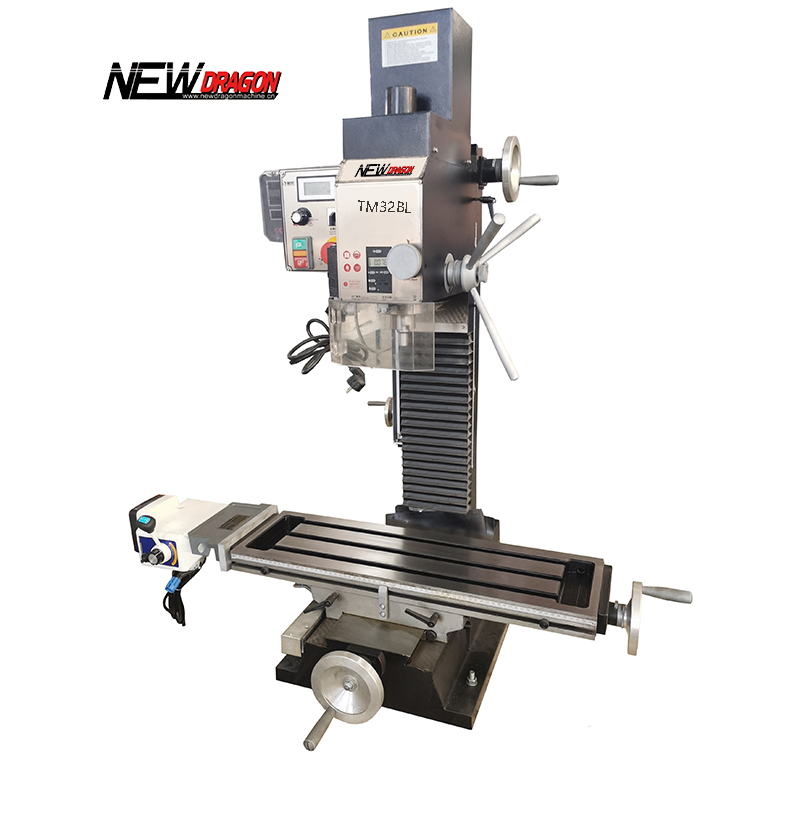

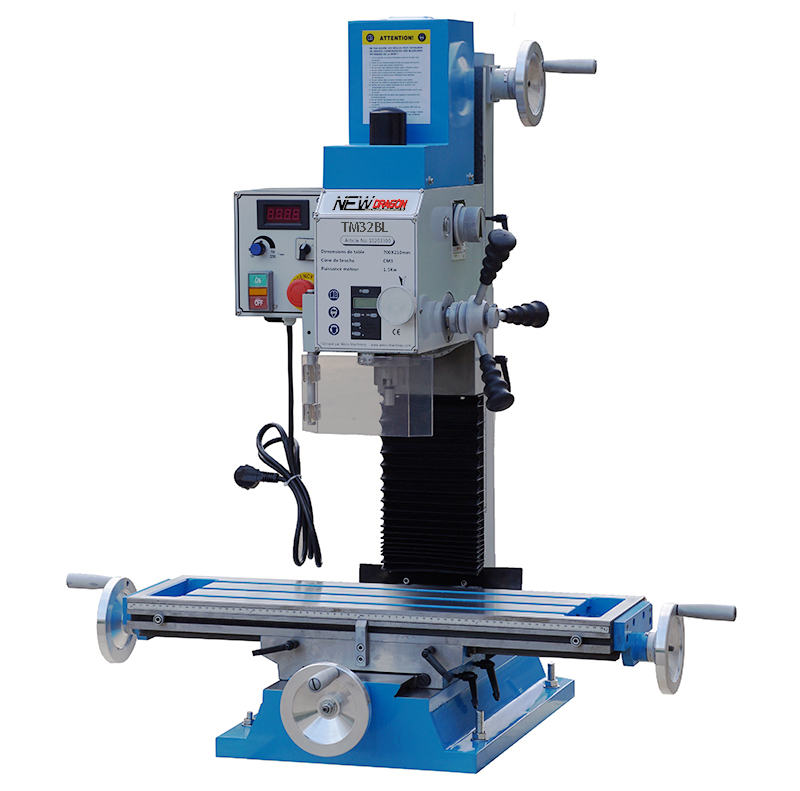

BRUSHLES DC MOTORS BELT-DRIVEN MILLING MACHINE TM32BL
New type upgrated version
Brushless motor
high quality PC board
greater durability
higher efficiency
Maintenace-free
Noise-free
Technical data
|
Model No |
TM32BL |
|
Drilling capacity |
32mm |
|
Face milling capacity |
76mm |
|
End milling capacity |
20mm |
|
Spindle taper |
MT3 or R8 |
| Spindle stoke |
70mm |
|
Spindle speed |
50-2250rpm |
|
spindle incline angle |
±90° |
|
Table size |
840×210mm |
|
X-axis travel |
582mm |
|
Y-axis travel |
205mm |
|
Z-axis travel |
470mm |
|
T-slot |
3x14mm |
|
Motor Brushless |
1100w |
|
Packing size |
1050x7400×1150mm |
|
Weight(n.e/g.w) |
220/240kg |
Standard accessories
Speed display
Depth ruler
Drill chuck 3-16mm
Arbor
Operating tools
Optional accessories
Stand & chip tray
Keyless drill chuck 3-16mm
ER25/6pcs collet chuck (4-16mm)
End mill 7pcs (4-16mm)
58pcs of clamping kits
X-axis power feed
Digital readout
