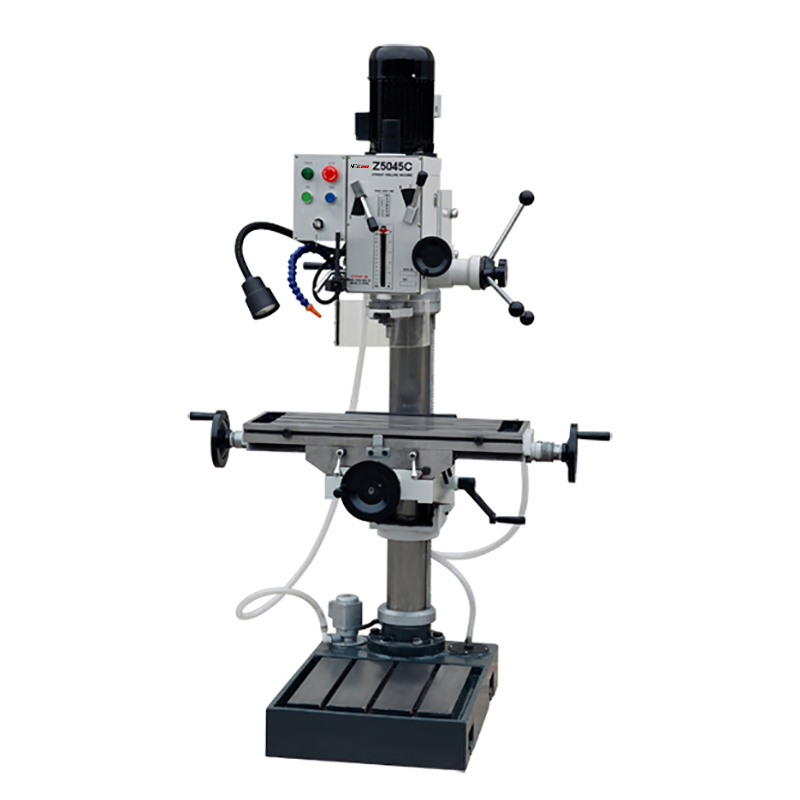

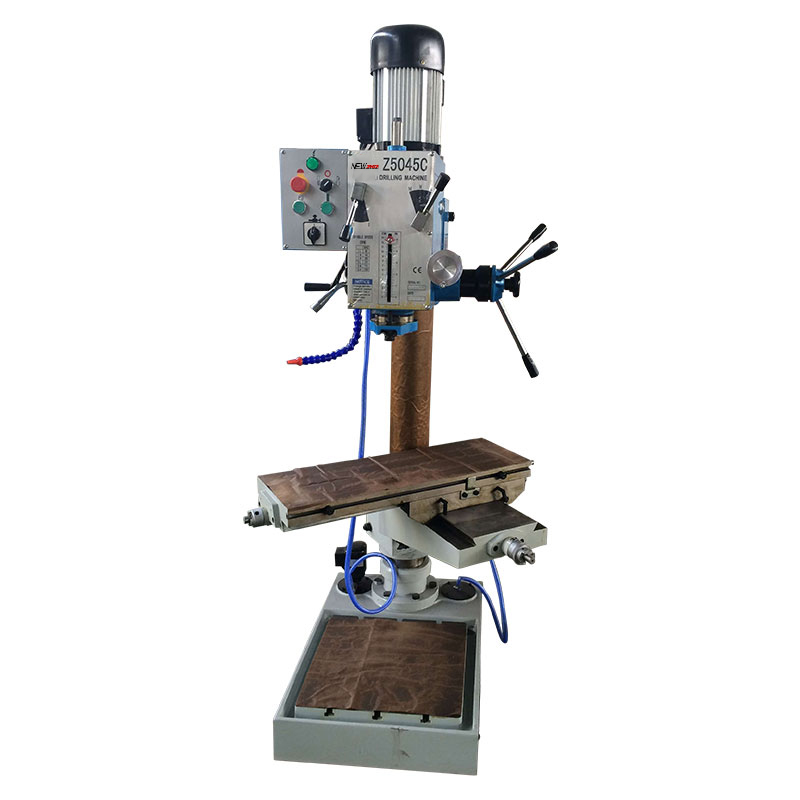

Drilling machine auto feedinZ5032C, Z5040C,Z5045C
|
MODEL |
Z5032C,Z5040C,Z5045C |
|
Max. drilling capacity |
32mm,40mm,45mm |
|
Spindle taper |
MT3/MT4/MT4 OR R8 |
|
Spindle travel |
130mm |
|
Step of spindle speed |
6 |
|
Range of spindle speed 50HZ |
80-1250rpm |
|
Range of spindle speed 60HZ |
95-1500rpm |
|
Step of spindle auto-feeding |
6 |
|
Range of spindle auto-feeding amount |
0.06-0.3mm/r |
|
Min. distance from spindle axis to column |
283mm |
|
Max. distance from spindle nose to worktable |
700mm |
|
Max. distance from spindle nose to stand table |
1125mm |
|
Max.travel of headstock |
250mm |
|
Swivel angle of headstock( horizontal) |
360° |
|
Max.travel of worktable bracket |
600mm |
|
Worktable size of availability |
730x210mm |
|
Swivel angle of table horizontally |
360° |
|
Table leaned |
/ |
|
Size of stand worktable of availability |
417x416mm |
|
Worktable travel(x/y) |
500mm/205mm |
|
Vertical travel of worktable |
570mm |
|
Motor power |
0.75KW/1.1KW/1.5KW |
|
Speed of motor |
1400RPM |
|
N.W./G/W. |
470KG/530KG |
|
Packing size |
1850X950X1000mm |
