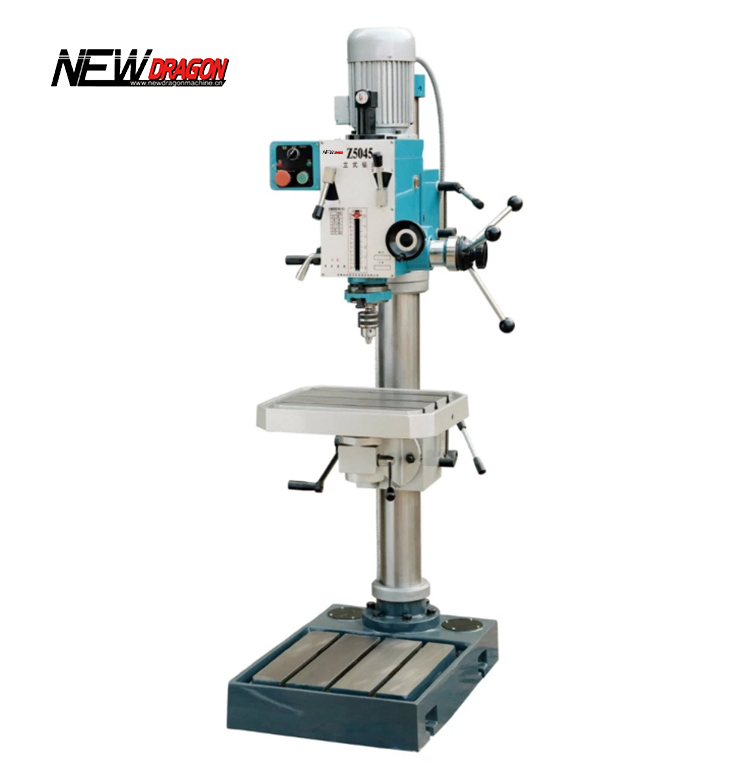

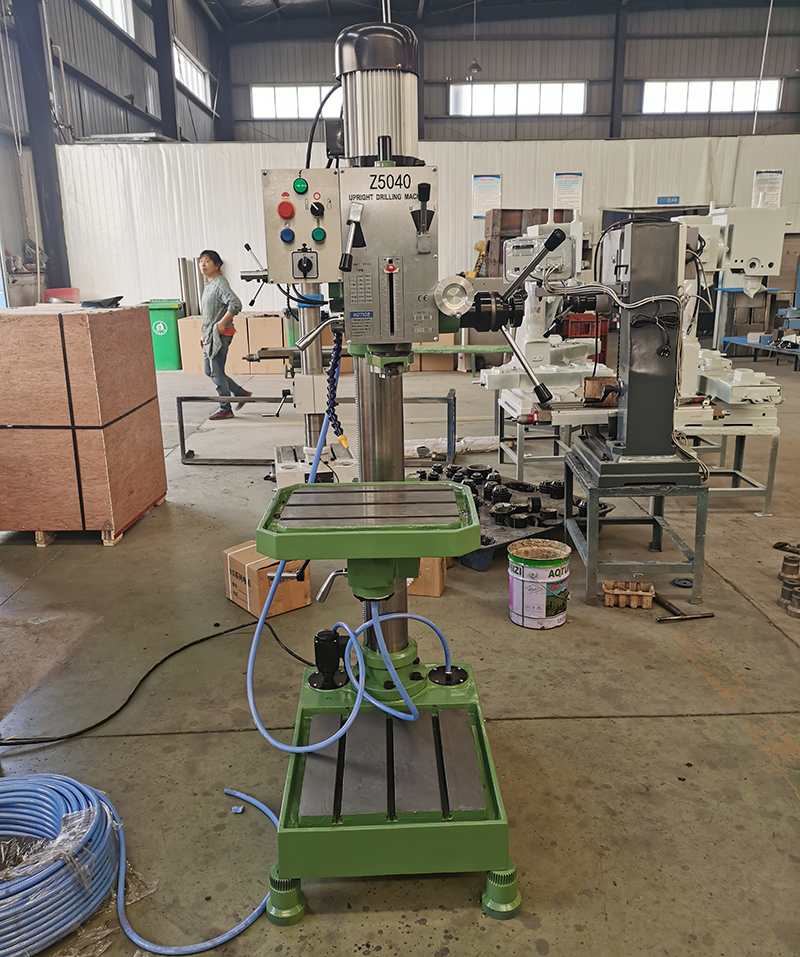

Z5032/Z5040/Z5045 Column Vertical Drilling Machine taladro de columna
| ITEM | Z5032 | Z5040 |
| Max.drilling capacity | 32mm | 40mm |
| Spindle taper | M.T.3 or R8 | M.T.4 |
| Spindle travel | 130mm | 130mm |
| Step of spindle speed | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m | 95-1500 r.p.m |
| Min.distance from spindle axis to column | 283mm | 283mm |
| Max.distance from spindle nose to worktable | 725mm | 725mm |
| Max.distance from spindle nose to stand table | 1125mm | 1125mm |
| Max.travel of headstock | 250mm | 250mm |
| Swivel angle of headstock(horizontal/perpendicular) | 360°/±90° | 360°/±90° |
| Max.travel of worktable bracket | 600mm | 600mm |
| Worktable size of avaliablity | 380×300mm | 380×300mm |
| Swivel angle of table horizontally | 360° | 360° |
| Table leaned | ±45° | ±45° |
| Size of stand worktable of avaliability | 417×416mm | 417×416mm |
| Motor Power | 0.75KW(1HP) | 1.1KW(1.5HP) |
| Voltage/Frequency | As customer's requirement | As customer's requirement |
| speed of motor | 1400 r.p.m | 1400 r.p.m |
| Net weight/Gross weight | 430kg/480kg | 432kg/482kg |
| Packing size | 1850×750×1000mm | 1850×750×1000mm |
| Loading amount | 18pcs/20'container | 18pcs/20'container |
