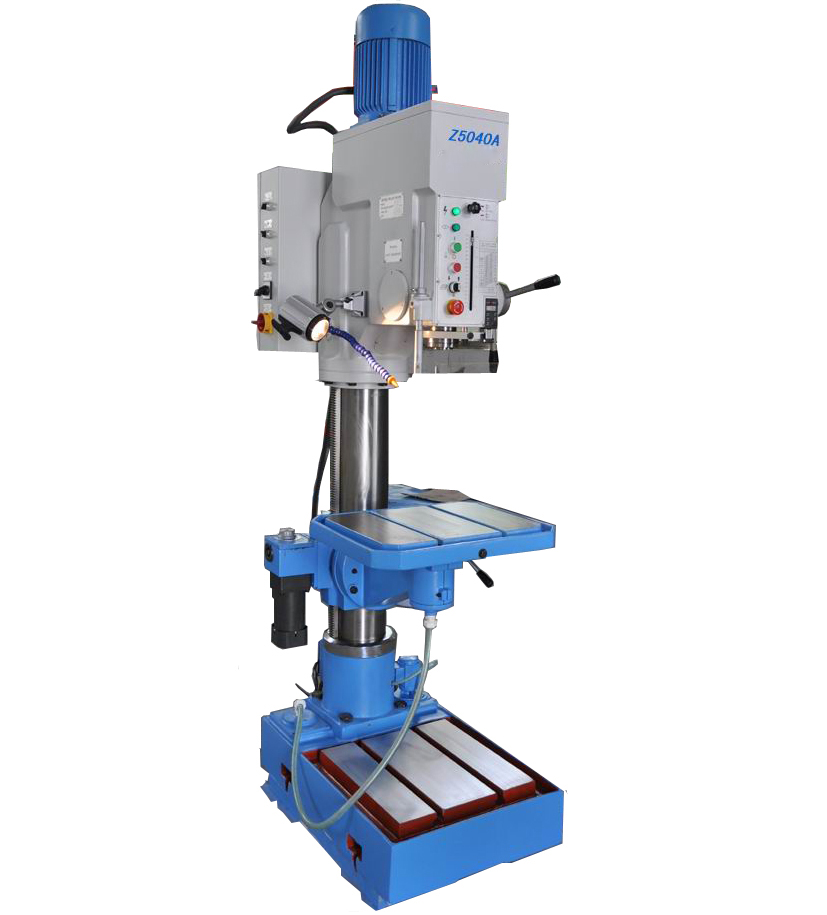

Vetical drilling machine Z5035A/Z5040A
Max.drilingcapacity (steel) : 35/40mm
The machine is designed with multi-function of drilling. Broaching, reaming, tapping and facing milling. With a strengthened capacity of drilling it allows the workpieces to be drilled with larger range of size. It is suitable for using in both production and maintenance shops
1. Easy operation.
2. Casting iron structure for long durability.
3. Column type of vertical drilling machine.
4. Worktable can tilt 45degree
|
MODEL |
Z5035A |
Z5040A |
|
|
Max. drilling dia.(steel) |
35mm |
40mm |
|
|
Max. tapping dia.(steel) |
22mm |
22mm |
|
|
Max. distance between spindle end to the surface of the worktable |
590mm |
590mm |
|
|
Max. distance between spindle end to the worktable surface of the base |
1150mm |
1175mm |
|
|
Max.stroke of the spindle |
155mm |
200mm |
|
|
Spindle taper |
MT4 |
MT4 |
|
|
Number of speed step of the spindle |
12steps |
12steps |
|
|
Spindle speed range |
125-3030r/min |
52-1400r/min |
|
|
Feed steps of the spindle |
3degree |
4degree |
|
|
Feed range of the spindle |
0.1,0.2,0.3mm/r |
0.1,0.2,0.3,0.4mm/r |
|
|
Max.stroke of the worktable and its bracker |
530 |
530(410) |
|
|
Rotation degree of worktable and its bracket in cross direction |
±45° |
±45° |
|
|
Working area of the worktable |
500X420mm |
580x460mm |
|
|
Dia. of column |
120mm |
160mm |
|
|
Power the main motor |
1.0/1.2kw |
2.2kw |
|
|
Machine dimension |
875x510x2140mm |
940x680x2405mm |
|
|
N.W. |
430kg |
650kg |
|
