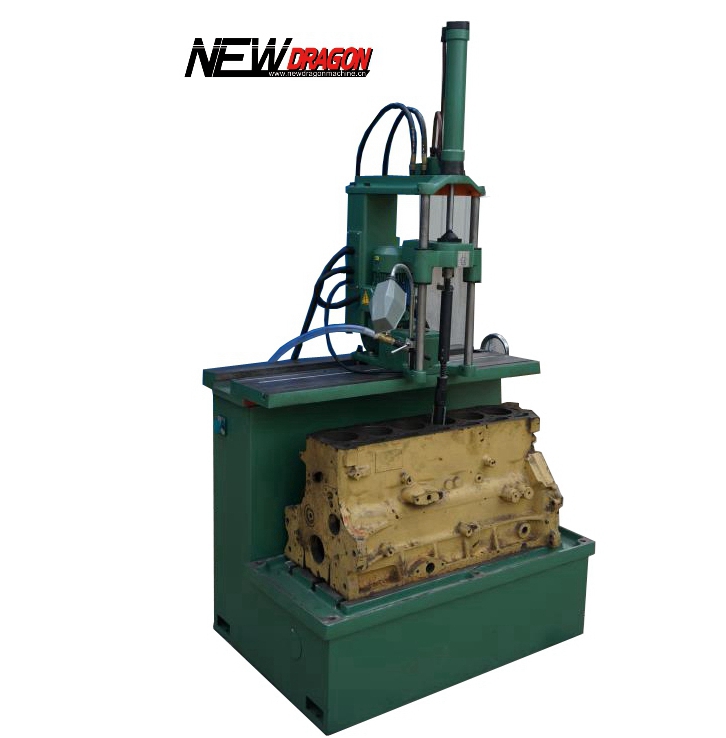

3MQ9814 vertical cylinder honing machine
Application and features
1. machine table can shift of the fixture change 0°, 30°, 45°
2. machine table is easily up and down manually 0-180mm.
3.Reverse precision 0-0.4mm
4. select mesh-wire degree 0°-90° or non-mesh wire.
5.Reciprocating speed of up and down 0-30m/min
|
Specifications |
3MQ9814 |
|
Diameter of hole honing: |
40-140mm |
|
Max.honing depth : |
320mm |
|
Spindle speed: |
125rpm, 250rpm |
|
Spindle stroke : |
0-14m/min |
|
working table dimension : |
1140x490mm |
|
Main power : |
2kw |
|
machine weight : |
650KG |
|
Over Dimension : |
1290*880x2015mm |
