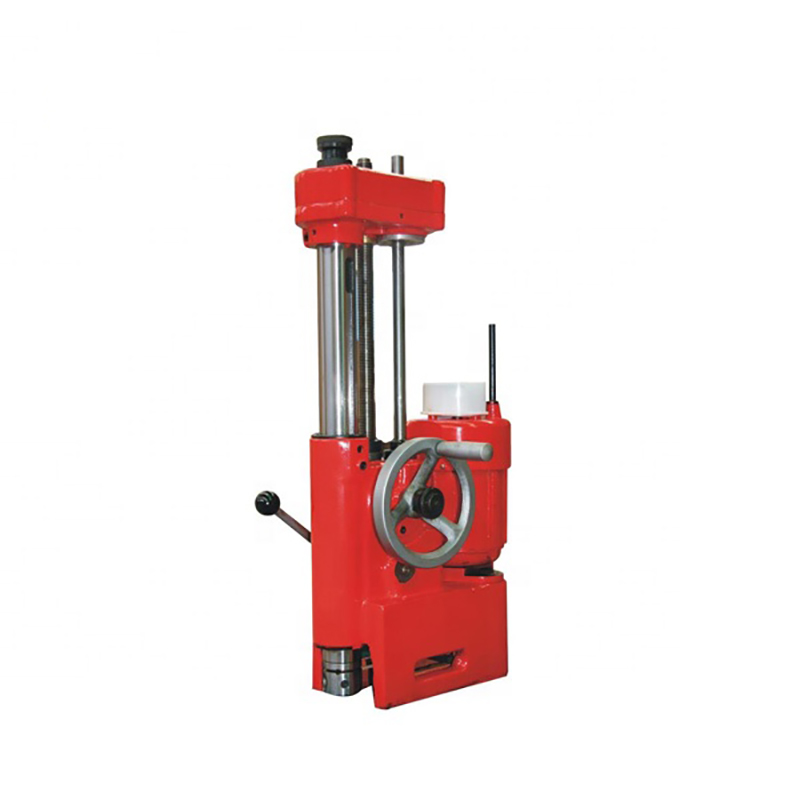

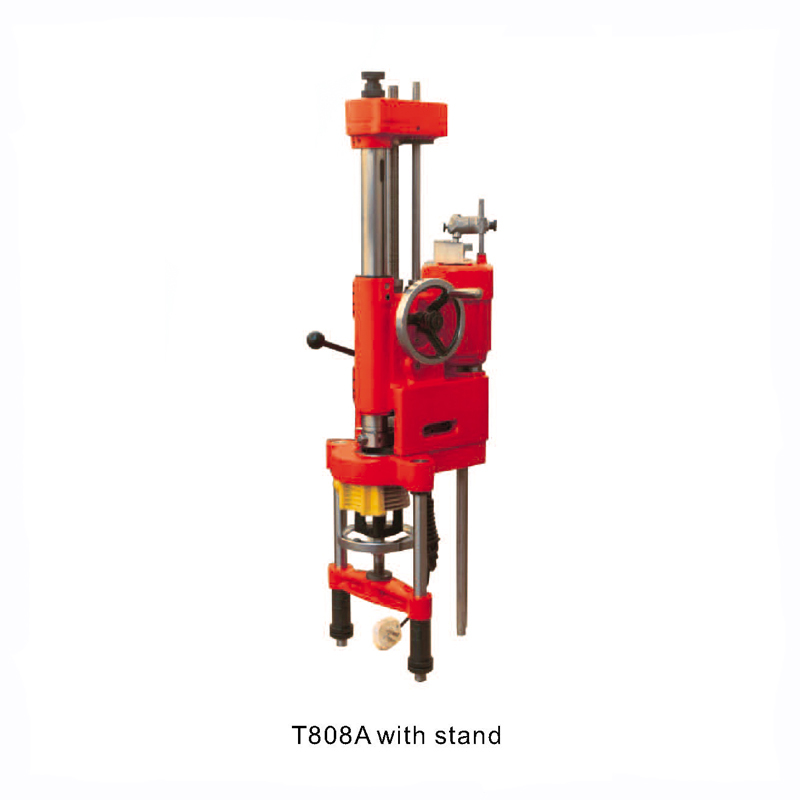

Cylinder Boring Machine for Motorcycle ,T808A,T809A
The Machine is mainly used for reboring engine cylinders of motor cycles, automobiles and middle & small-tractors.
1,Reliable performance ,widely use, processing accuracy high productivity.
2,Easy and Flexible operation
3,Good rigidity ,amount of cutting
|
Model |
T808A |
T809A |
|
|
Boring diameter |
50-85mm |
50-95mm |
|
|
Max. boring depth |
170mm |
||
|
Spindle speed |
394 r/min |
||
|
Spindle feed |
0.10 mm/r |
||
|
Spindle quick reset |
Manual |
||
|
Motor voltage |
220V |
380 V |
|
|
Motor power |
0.25 Kw |
||
|
Motor speed |
1440 r/min |
||
|
Overall dimension |
350x272x725mm |
||
|
Machine weight |
48 kg+25kg |
||
Standard accessories:
Specific micrometer, Centering rod, Tension spring, Cutter sharpening attachment, Upper cylinder packing ring, Lower cylinder packing ring, cylinder press ring, Boring sleeve, Centering device, specific spanner for micrometer, Hex. Socket wrench, Boring cutter, Spring(for cutter)
