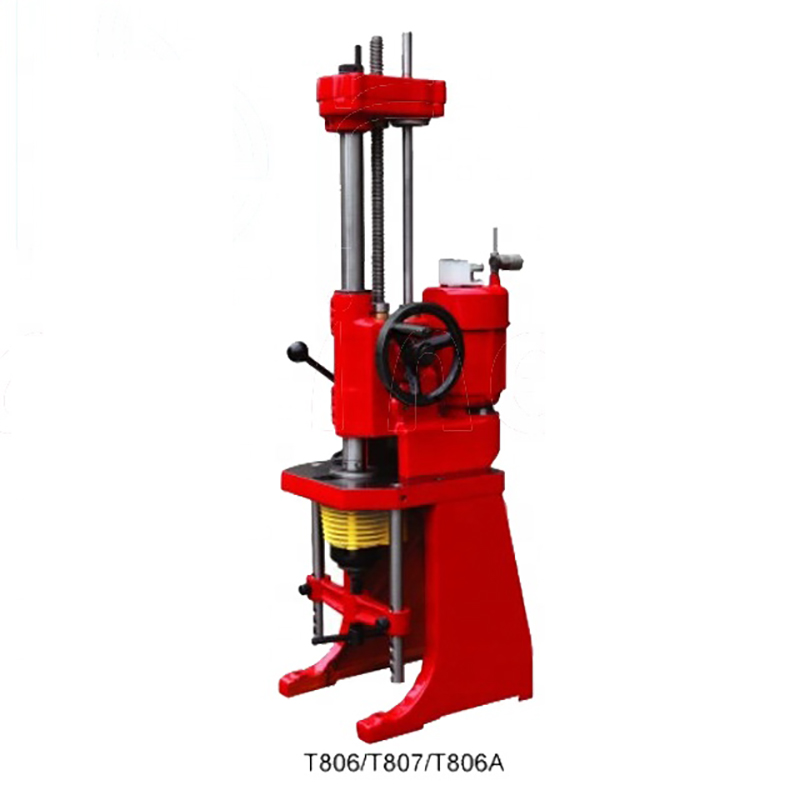

T806/T806A/T807 small size protable motorcycle cylinder boring machine for sale
The machine is small and light, it's mainly used for reboring engine cylinder of motorcycle, automobiles and middle & small-tractors.
FEATURE:
1. Reliable performance, widely use, processing accuracy high productivity.
2. Easy and flexible operation.
3. Good rigidity, amount of cutting
| MODEL | T806 | T806A | T807 |
| BORING DIAMETER | Φ39 - Φ60mm | Φ46 - Φ80mm | Φ39 - Φ70mm |
| MAX. BORING DEPTH | 160mm | 160mm | 160mm |
| SPINDLE SPEED | 486r/min | 486r/min | 486r/min |
| SPINDLE FEED | 0.09mm/r | 0.09mm/r | 0.09mm/r |
| SPINDLE QUICK RESET | manual | manual | manual |
| VOLTAGE | 220v/380v | 220v/380v | 220v/380v |
| MOTOR POWER | 0.25kw | 0.25kw | 0.25kw |
| MOTOR SPEED | 1440r/min | 1440r/min | 1440r/min |
| WEIGHT | 80kg | 85kg | 81kg |
| OVERALL DIMENSIONS | 330 x 400 x 1080mm | 330 x 400 x 1080mm | 330 x 400 x 1080mm |
STANDARD ACCESSORIES:
cutter setting micrometer, boring cutter, tool holder, centering shaft, spring collect, cutter sharpening attachment
