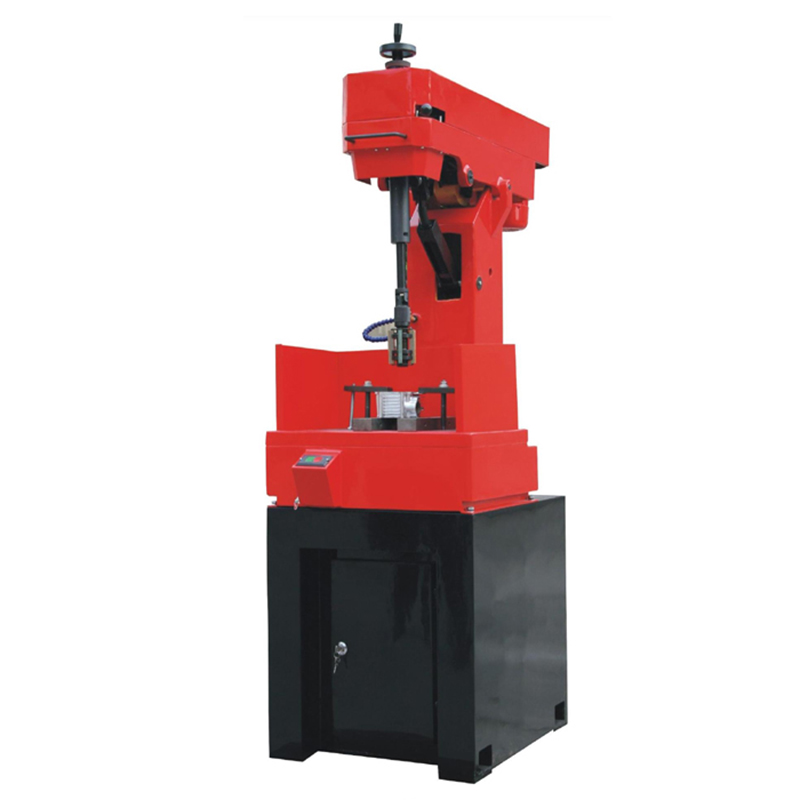

3MB9808 China Portable Engine Cylinder Honing Machine
3MB9808 is mainly used for honing engine cylinder of automobiles, motor cycles , cars and tractors , and also for making other machine tools. It has compact frame, small volume , can operate easily , have manual operator and motor operator. When the main spindle moving up and down, precision of switch direction less than 0.4mm . Good rigidity and amount of cutting.
|
Model |
3MB9808 |
|
Max. diameter of hole honed |
25-82mm |
|
Max depth of hole honed |
200mm |
|
Spindle speed |
200; 280rpm |
|
Stroke |
19;27 s/min |
|
Power of main motor |
0.55kw |
|
Power of cooling pump motor |
0.09kw |
|
Machine working inside cavity dimensions
|
600x380mm |
|
Overall dimensions mm |
600x850x195 |
|
Machine weight |
500kg |
