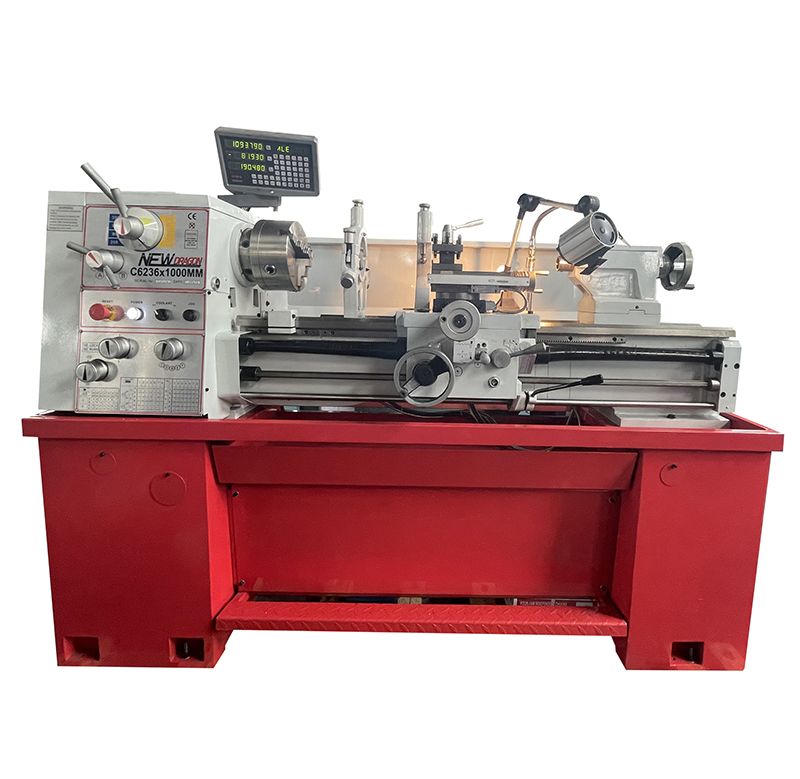

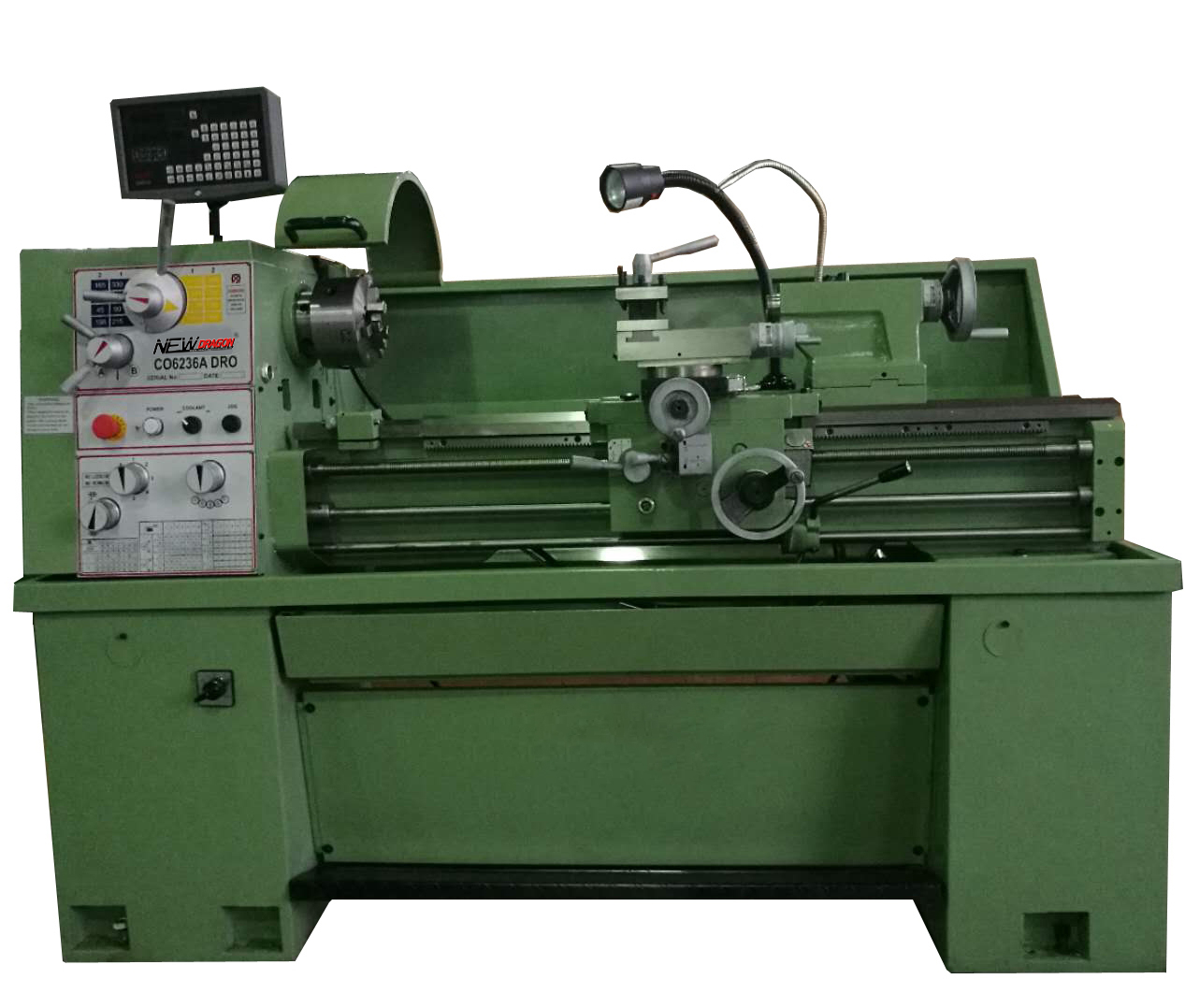

high precision metal lathe C6236x1000mm
Feature
1.widely used, simple operation, and a wide range of processing
2.Guarantee the concentricity of the spindle is less than 0.009mm
3.Chuck runout accuracy of less than 0.05mm
4.Strong power, maintenance-free DC motor
5.After quenching and precision grinding of cast iron bed
6.High precision, quenching spindle
Application
Suitable for turnings of metal, wood, jade, etc.
Ideal for use in labs, workshops, engineering and education.
Can be turned within foreign aid, turning thread, turning taper and so on.
Technical Specifications
|
ITEMS |
C6236 |
|
Max swing over bed |
356/400mm |
|
Max swing over cross slide |
220/264mm |
|
Max swing over gap |
506/550mm |
|
Width of bed |
206mm |
|
Max. length of workpiece |
1000mm |
| Spindle bore | 38mm/51mm |
| Spindle | D4/D5 |
|
Step of spindle speed |
16 |
|
Range of spindle speeds |
45-1800rpm |
| Taper of spindle bore | MT5/MT6 |
| Center height | 178/200mm |
| Threads metric pitches |
0.4-7mm/28kinds(Metric lathe) 0.45-7.5mm/22kinds(Inch lathe) |
| Threads imperil pitches |
4-56TPI/28kinds(Metric lathe) 4-112TPI/40kinds(Inch lathe) |
| Compound rest travel | 90mm |
| Cross slide travel | 150mm |
| Max.section of tool | 16x16mm |
| Longitudinal feeds range |
0.043-0.653mm/rev (Metric lathe) 0.0012-0.0297in/rev(inch lathe) |
| External diameter | 45mm |
| Max.travel | 100mm |
| Taper of bore | MT3 |
| Main motor power | 1.5/2.4KW |
| Coolant pump power | 40W |
| Packing size | 1950X750X1500mm |
| N.W./G.W. |
700/800kgs |
