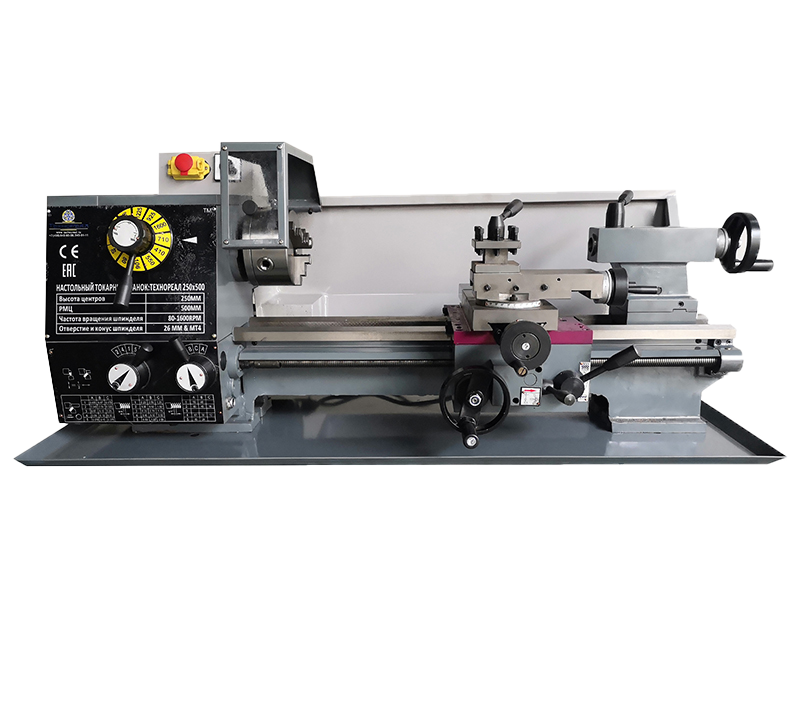

Product feature
1. Precision ground and hardened bed ways.
2.The spindle is supported with precision roller bearings.
3.Headstock gears are made of high quality steel,ground and hardend.
4.Easy operating gear box has various feeds and thread cutting function.
5.Spindle speed range 80-1600rpm.
6.Various threads cutting function avaiable.
Technical Specifications
|
Max. swing over bed |
250mm |
|
Max.length of workpiece |
500/700mm |
|
Max. swing over cross slide |
150mm |
|
Max. cross slide travel |
130mm |
|
Max. longitudinal stroke over tool post |
60mm |
|
Spindle bore |
26mm |
|
Spindle taper |
MT4 |
|
Spindle speed range |
12 steps:80-1600r/min |
|
Number of metric thread |
9 |
|
Range of metric thread |
0.25-2.5mm |
|
Number of inch thread |
15 |
|
Range of inch thread |
12-96 1/n" |
|
Longitudinal-feed range |
0.025-0.250mm/r |
|
cross-feed range |
0.0125-0.125mm/r |
|
Tailstock sleeve taper |
MT3 |
|
Motor |
750W |
|
Net weight/Gross weight |
180/200KGS |
|
Packing size |
1160*640*580mm |
Standard accessories
| 3-jaw chuck |
| protection cover for chuck |
| gears |
| wrench |
| tool box |
Optional accessories
| low voltage control |
| micro switches for protection |
| steady rest |
| follow rest |
| 4-jaw chuck with back plate |
| face plate |
| dial thread |
| work lamp |
| coolant system |
| stand and oil tray |
| special gears 8pcs for inch threads |
| turing tools with inserts 9pcs |
