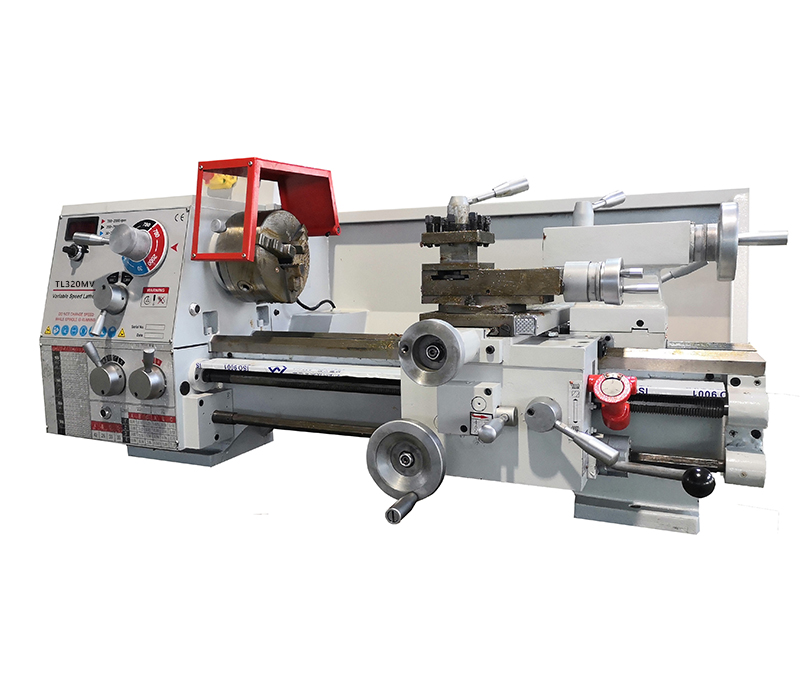

Product feature
1. Precision ground and hardened bed ways.
2.The spindle is supported with precision roller bearings.
3.Headstock gears are made of high quality steel,ground and hardend.
4.Easy operating gear box has various feeds and thread cutting function.
5.Spindle speed range 60-1600rpm.
6.It can cut diametral threads and module threads.
Technical Specifications
| Max. swing over bed |
320mm |
|
Max.length of workpiece |
500/750mm |
|
Max. swing over cross slide |
200mm |
|
Max. travel of tailstock sleeve |
80mm |
|
Spindle bore |
38mm |
|
Spindle taper |
MT4 |
| Spindle speed range | 3steps:30-2000r/min |
| Number of metric threads | 18 |
| Range of metric threads | 0.2-3.5mm |
|
Number of inch threads |
34 |
|
Range of inch threads |
4 1/2-48 1/n" |
|
Number of module threads |
16 |
|
Range of module threads |
0.2-1.75mm |
| Number of diametral pitch threads | 24 |
| Range of diametral pitch threads | 16-120 /DP" |
| Longitudinal-feed range | 0.05-0.35mm/r |
| Cross-feed range | 0.025-0.18mm/r |
| Tailstock sleeve taper | MT3 |
| Motor | 1.1KW |
| Net weight/Gross weight | 280/340KGS |
| Packing size | 1250*700*740mm |
Standard accessories
| 3-jaw chuck |
| protection cover for chuck |
| gears |
| wrench |
| tool box |
Optional accessories
| low voltage control |
| micro switches for protection |
| steady rest |
| follow rest |
| 4-jaw chuck with back plate |
| face plate |
| dial thread |
| work lamp |
| coolant system |
| stand and oil tray |
| special gears 8pcs for inch threads |
|
turing tools with inserts 9pcs |
