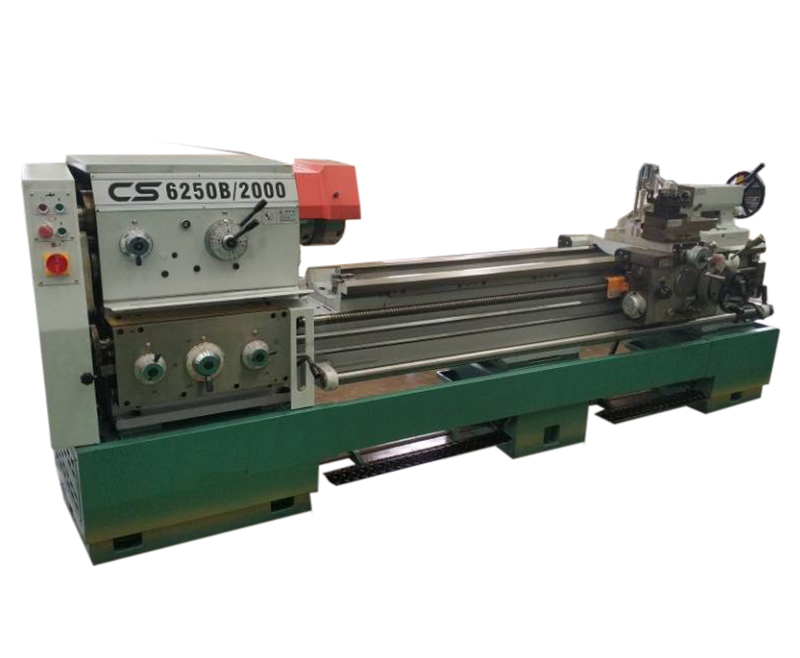

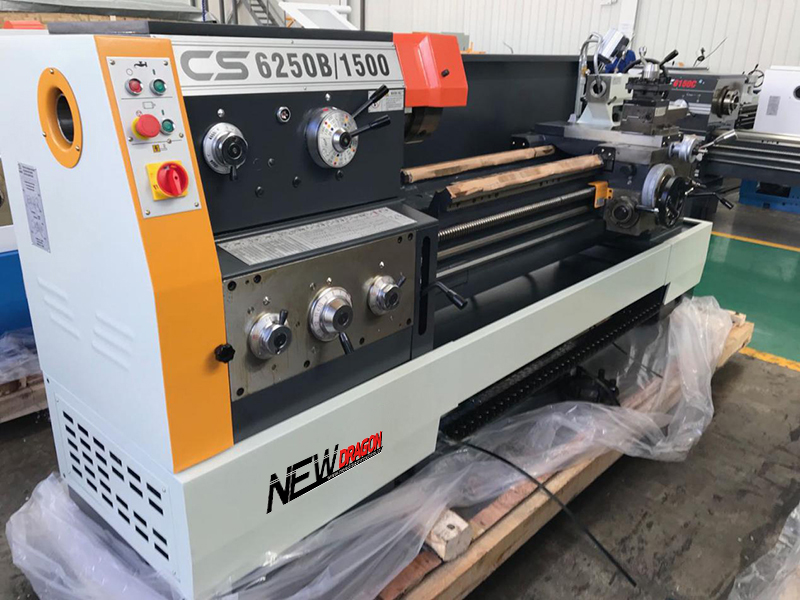

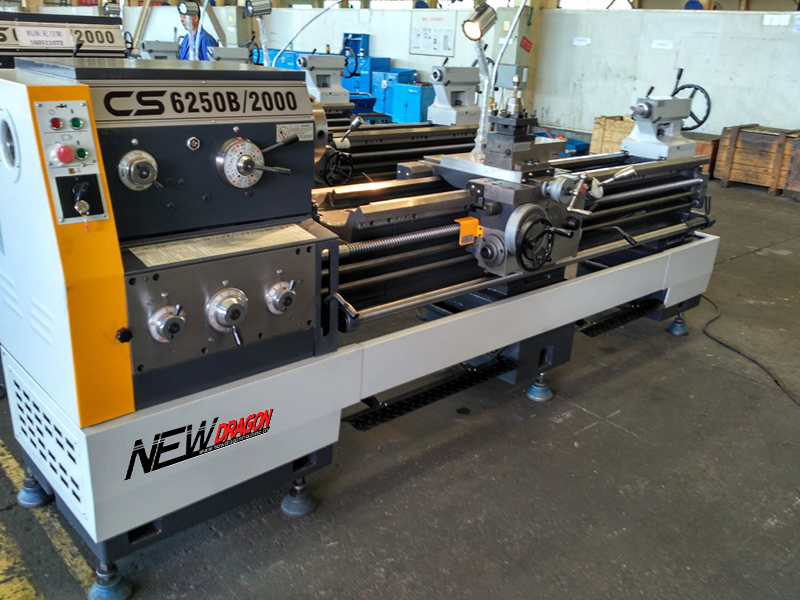

CS6250B High quality heavy duty precision metal lathe machine
Introduction:
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Machine all kinds of flat stocks and those in irregular shapes;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
|
Item |
Unit |
Parameter |
|
|
CS6250B |
|||
|
Capacity |
Max swing over bed |
mm |
Φ500 |
|
Max swing in gap |
mm |
Φ710 |
|
|
Effective length in gap |
mm |
240 |
|
|
Max swing over slide |
mm |
Φ300 |
|
|
Max workpiece length |
mm |
1000/1500/2000/3000 |
|
|
Spindle |
Spindle thru-hole |
mm |
Φ82 |
|
|
Spindle nose |
|
ISO 702/Ⅱ No.8 cam-lock type |
|
Spindle speed |
r/min |
24 step 9-1600 |
|
|
Spindle motor |
kW |
7.5 |
|
|
Tailstock |
Quill dia./travel |
mm |
φ75/150 |
|
Taper of center |
MT |
5 |
|
|
Tool post |
Number of station/ Tool section |
|
4/25X25 |
|
Feed |
Max X-axis travel |
mm |
145 |
|
Max Z-axis travel |
m/min |
320 |
|
|
X-axis feed |
mm/r |
93 sorts 0.012-2.73 |
|
|
Z-axis feed Z-axis feed |
mm/r |
93 sorts 0.028-6.43 |
|
|
Metric thread |
mm |
48 sorts 0.5-224 |
|
|
Inch thread |
t.p.i |
46 sorts 72-1/8 |
|
|
Module thread |
πmm |
42 sorts 0.5-112 |
|
|
DP thread |
t.p.i. π |
45 sorts 56-1/4 |
|
|
Others |
Coolant pump motor |
kW |
0.12 |
|
Machine length |
mm |
4632 |
|
|
Machine width |
mm |
975 |
|
|
Machine height |
mm |
1270 |
|
|
Machine weight |
kg |
2900 |
|
Standard accessories
3-jaw chuck and adapter,4-jaw chuck and adapter Faceplate, Drive plate, 4-station conventional tool post, Steady rest(1000mm without) Follow rest,Foot brake, Mechanical feed stop, LED work lamp,tools.
Optional accessories
Living center,Stainless steel three bar protection,Curtain three bar protection,Taper turning attachment,Thread chasing dial,Quick change tool post Italy type,Quick change tool post European type,2 meters Digital readout(2 AXIS),2 meters Digital readout (3 AXIS)
