Products > XH7126 CNC milling machine or Vertical machine center TMK26

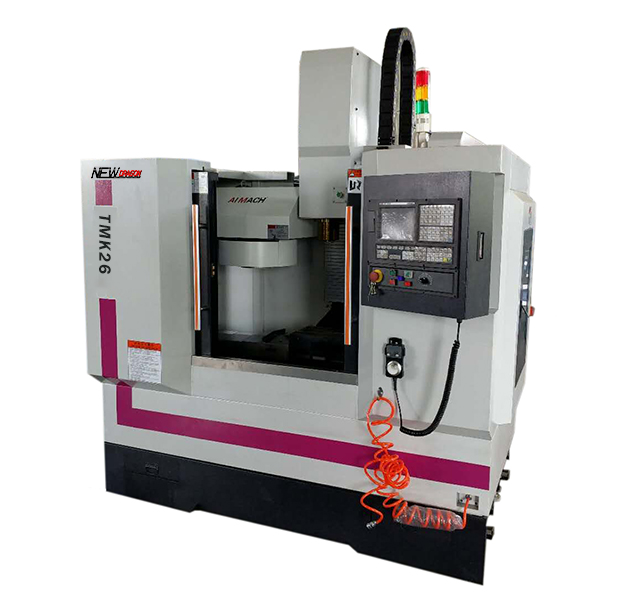

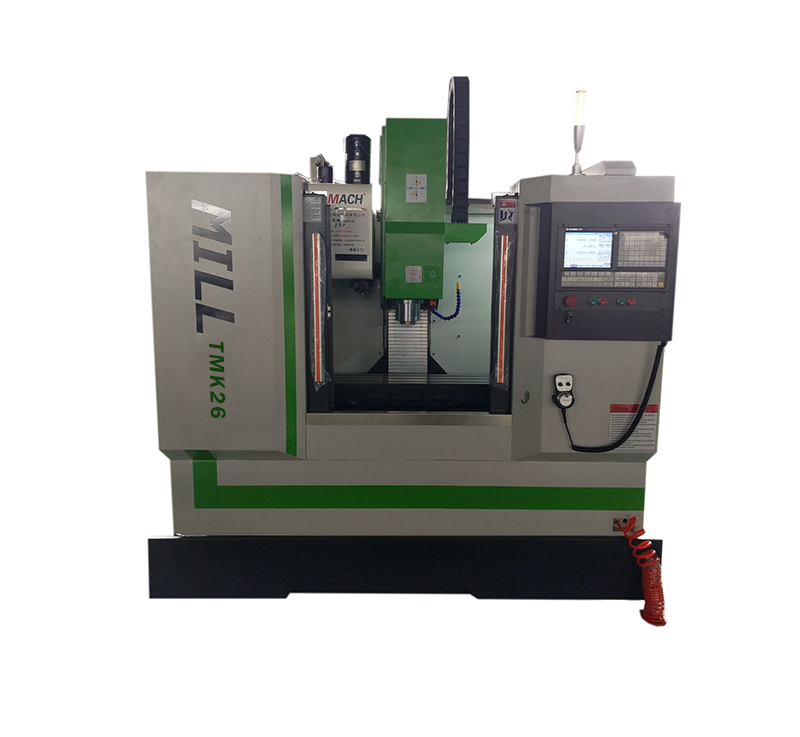

XH7126 CNC milling machine or Vertical machine center TMK26

TMK26  (XH7126)

CNC MILLING MACHINE OR VERTICAL MACHINE CENTER



Standard configuration

Guangtai numerical control 330iM



Optional configuration

Numerous 990M numerical control system

KND 1000M numerical control system







Specification

TM(H)K26

TMK26

The X axis stroke

450mm

500mm

Y trip

320mm

300mm

The Z axis stroke

450mm

400mm

Tool storage capacity

12pcs

---

The spindle nose to mesa

90-470mm

90-520mm

Spindle center to post

360mm

360mm

Table size

800*260mm

800*260mm

T slot (size*number*spacing)

14*3*80mm

14*3*80mm

The workbench maximum load

400kg

400kg

The spindle taper

BT40

BT40

The standard spindle type

6000rpm

6000rpm

Spindle power

3.7KW

3.7KW

Cutting speed

1-12000mm/min

1-6000mm/min

Fast speed

X/Y/Z:15m/min

X/Y/Z:10m/min

Positioning accuracy

±0.01/300mm

±0.01/300mm

Machine tool gross weight

2400kg

1800kg
