Products > TMK30

TMK30

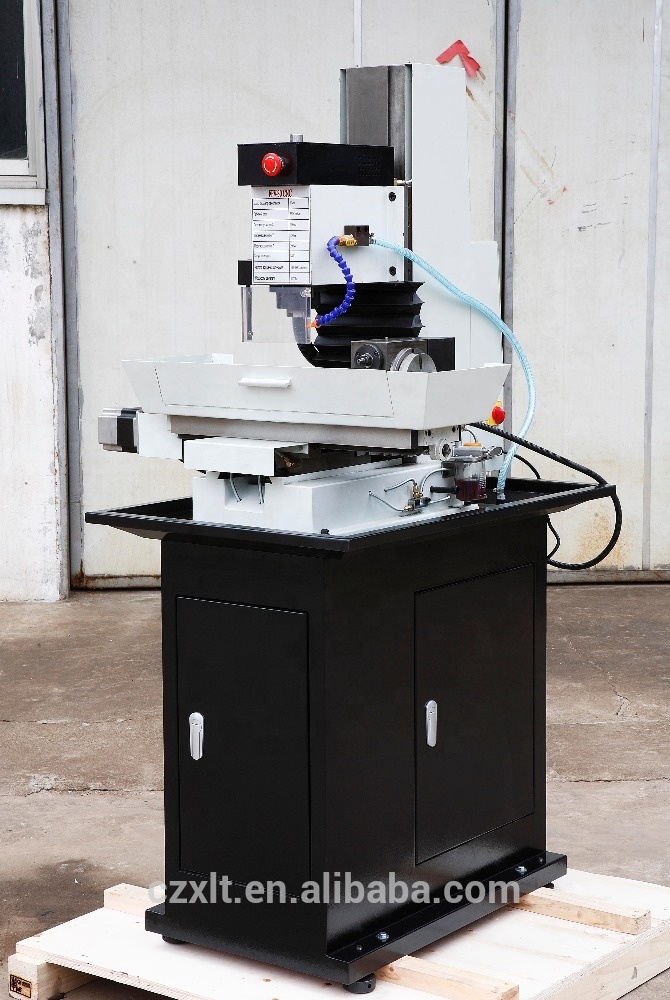

Metal 4 axis vertical cnc milling machine MACH3 control

Feature

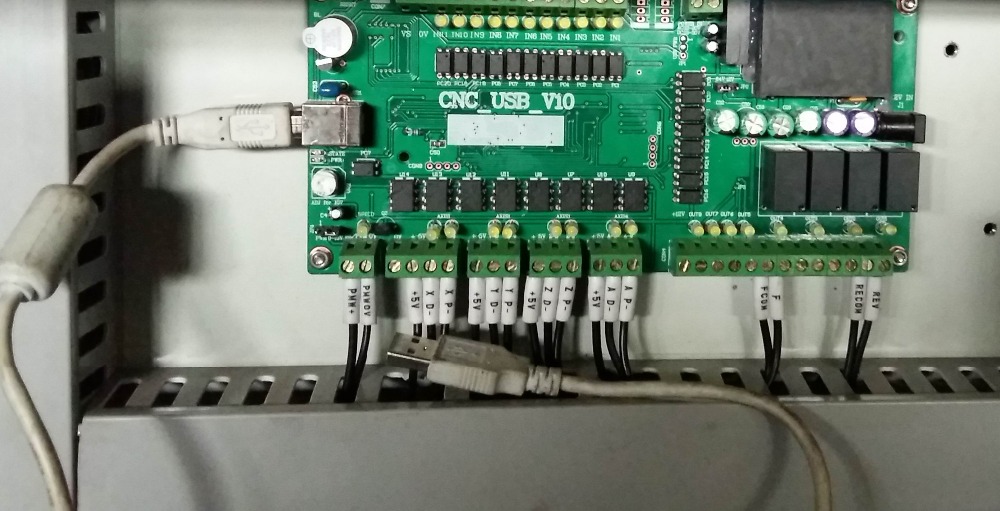

USB-MOTION-CARD-PLUGIN



The machine is an economic CNC milling machine controlled by a PC and driven by step motors (or servo motor). It is suitable for turning turning cylindrical and taper faces, boring, grooving and cutting.

The 4th Axis rotarty table is a good choice for milling machine





TM-30CNC PC-BASE CONTROLLEED BY MACH3 SYSTEM



Technical data

Model No.

TMK30CNC

Table effective-size

550×160mm

X-axis travel

300mm

Y-axis travel

150mm

Z-axis travel

290mm

Motor of X axis

4N

Motor of Y axis

4N

Motor of Z axis

6N

Throat

230mm

T-slot size

12mm

No.of T-slot

3

Oriented precision

0.02mm

Repetition oriented precision

0.015mm

Spindle taper

MT3 / R8

Speed of spindle

610-6000rpm

Max.Spindle motor torque

5.5N.M.

Motor power

1100W

Machine dimension

988×900×1740mm

Packing size

1048×960×1820mm

Net weight

250KG

Shipping weight

300KG





Optional accessories:

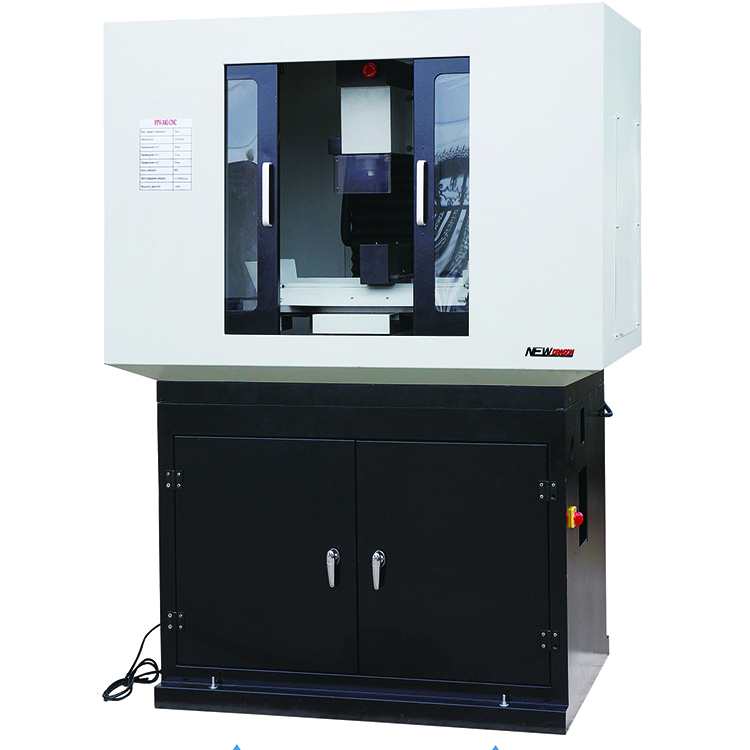

1.Clamping kits, 2. Cooling system,3.hand wheel controller, 4. Milling chuck set, 5. The 4th axis rotary table, 6.machine vice, 7. Full guard for total machine, 8. 2fluts or 4fluts HSS end mills 9. Taper collects
