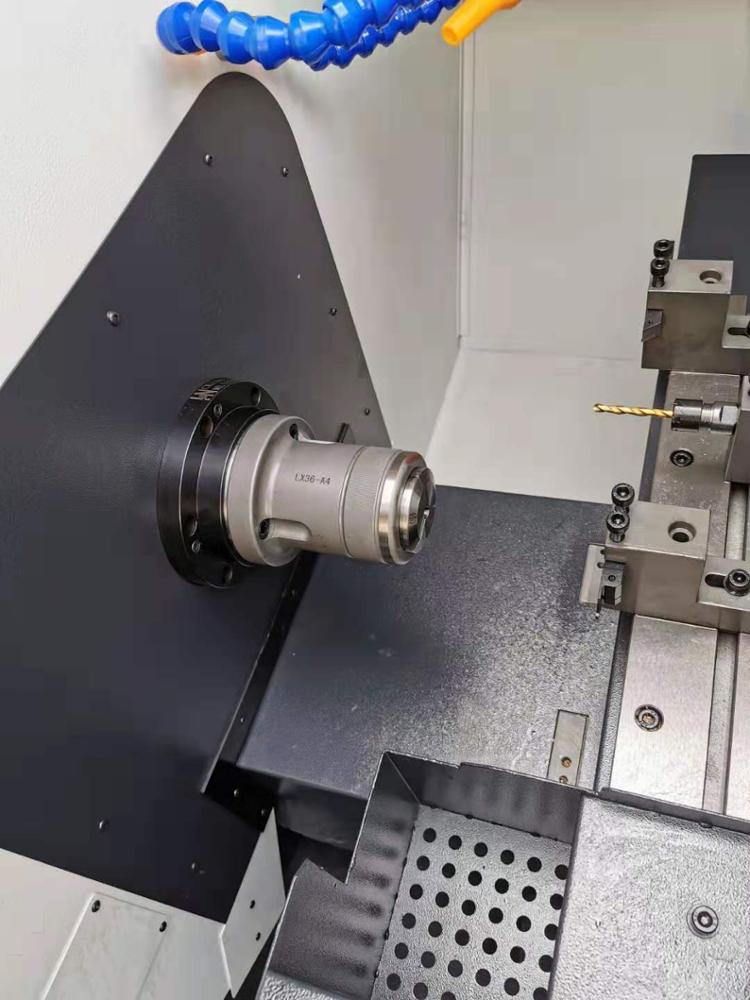

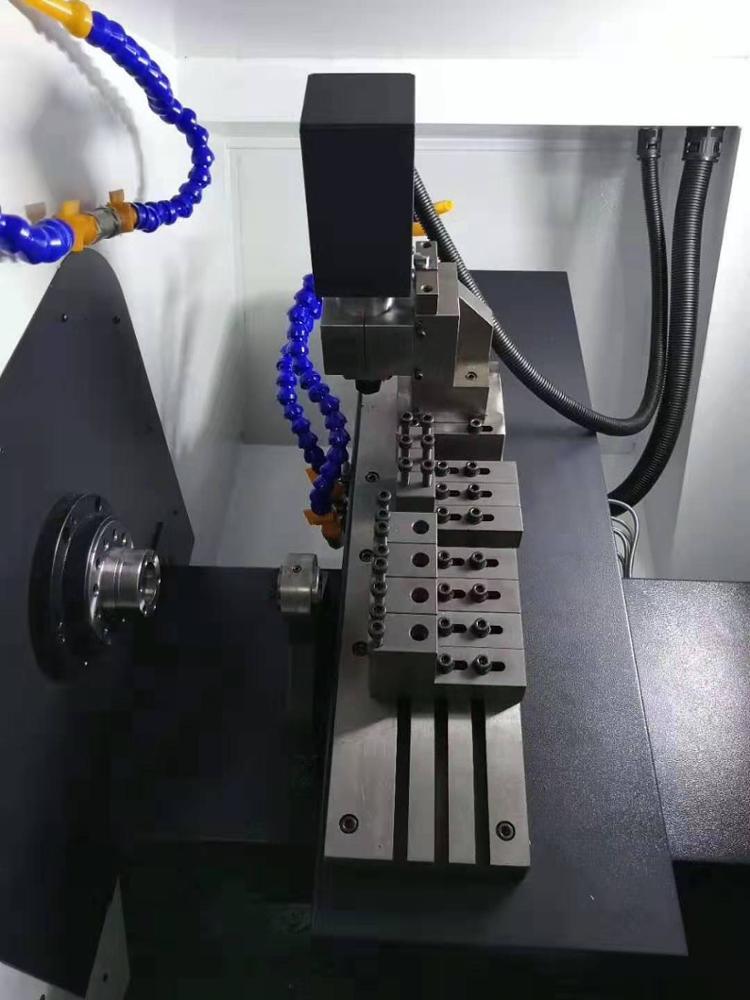

HIGH PRECISION SLANT BED CNC LATHE TL-20/TL-25/TL-32
High productivity, high moving speed 30m/Min
Precision: 0.001mm
Features:
This CN lathe is especially suitable for high precision and complex medium parts of large productivity
Optional accessories:
1. chip conveyor
2. hydraulic bar feeder
3. working piece catcher
| TYPE | TL-20/TL-25/TL-32 |
| Max.swing over bed | 300mm/350mm/420mm |
| Max.cutting for axle parts | 20mm/25mm/32mm |
| lathe spindle | 120mm |
| spindle through diameter | 30/36/42mm |
| spindle speed | 4000rpm |
| main spindle servo power | 3.7kw/5.5kw |
| X axis travel | 700mm |
| Z axis travel | 245mm |
| X/Z moving speed | 30m/min |
| X axis servo motor power | 0.75KW |
| Z axis servo motor power | 0.75KW |
| hydraulic pump power | 0.75KW |
| cooling pump power | 0.18KW |
| Postioning accuracy | 0.002mm |
| repeating accuracy | 0.002mm |
| turing tool size | 12*12mm |
| chuck size | 5" |
| control system CNC 3 axis | TAIWAN LNC |
| ballscrew and linear guide | TAIWAN PMI/TBI |
| hydraulic cylinder | 536 |
| machine dimension | 1700*1300*1500mm |
| Weight | 1200kg/1500KG |
