Products > T8465

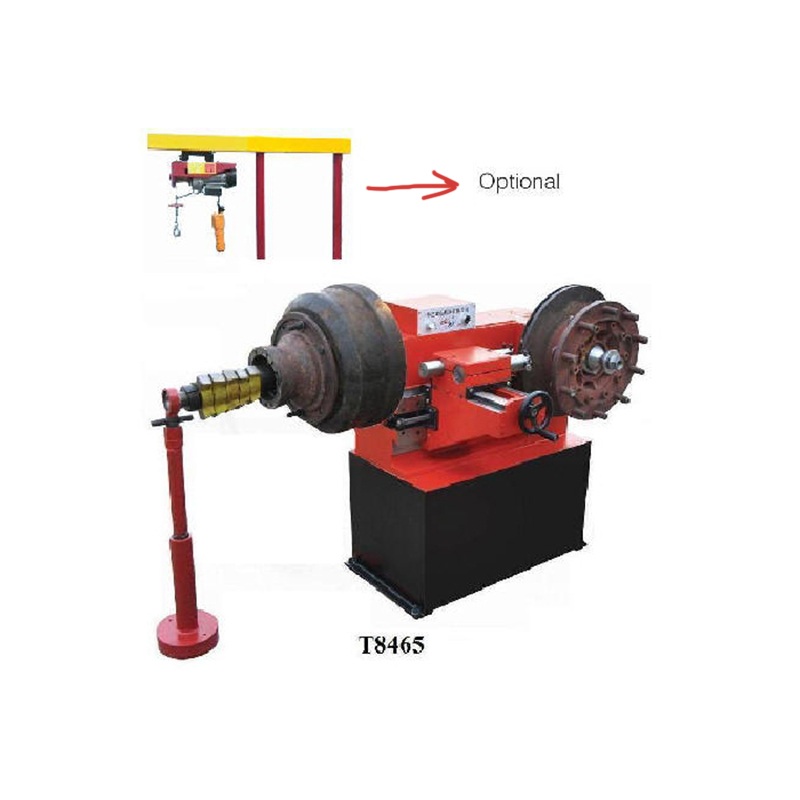

This equipment is a kind of lathe. It can fulfill the reparation of the brake drum, disc and shoe of auto-mobiles from mini-car to heavy trucks. The unusual feature of this equipment is its twin-spindle each other perpendicular structure. The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle. This equipment has higher rigidity, accurate workpiece positioning and is easy to operate. This equipment is fit up with out-board supporter to advance loading. Capability of first spindle. Besides, this equipment is fit up with set of crane which turn loading and unloading a heavy break drum into easier. This equipment meets the requirement of the state standard (GB12064), brake drum cutting machine. If you adopt this equipment, it can help your enterprise set up higher reputation due to better. Process quality and lower your process cost.



Drum dia. Capacity
Φ 180- Φ 650 mm
Disc dia. capacity
≤ Φ 500 mm
Spindle speed (3 steps)
25, 40, 70 r/min
Toolpost travel
250 mm
Feed rate
0.16 mm /min
1.1 Kw / 1400 rpm
Overall dimension (L x W x H)
800x975x 940 mm
Packing dimensions (L x W x H)
1330x960x 1230 mm
580/ 650 kg
