Products > C9335A

C9335A

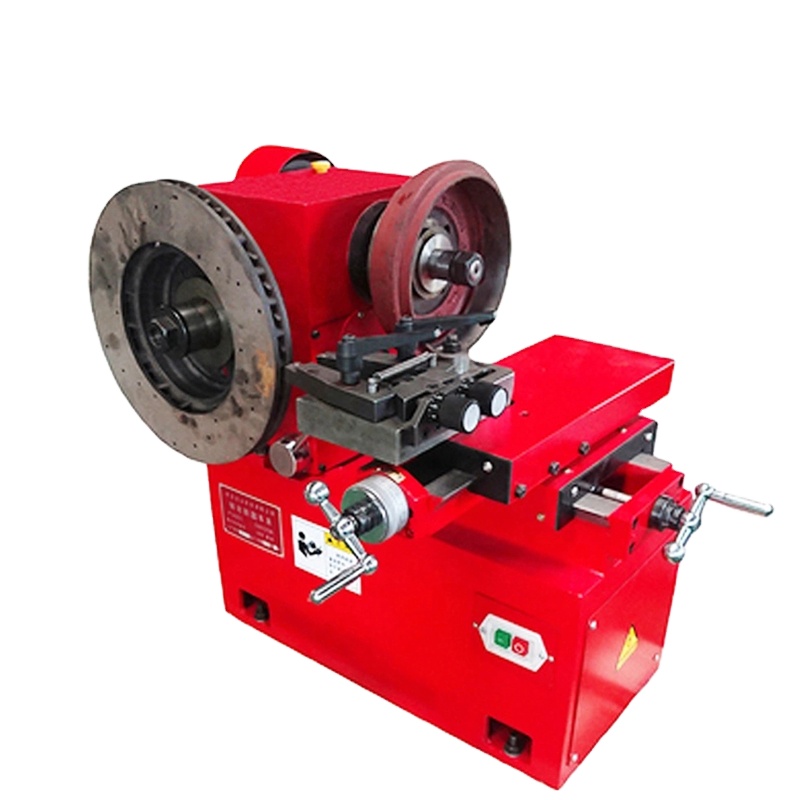

 C9335A brake drum cutting machine

1. This C9335A brake drum disc cutting brake lathe machine used gary cast iron for integral casting, the screw and other parts are thicker, less wearing parts and strong rigidity.
2. Both sides of the brake disc can be automatically fed at the same time to ensure processing efficiency
3.The skateboard can automatically feed from left to right
4. At the same time, the rigidity of the machine can ensure that the machine has a larger amount of knife, which improves the work efficiency.
5.Can turn the car brake disc and brake drum


Product name
Unit
brake drum disc cutting brake lathe machine
Model

C9335
C9335A
Brake drum diameter
mm
180-350
180-350
Brake disc diameter
mm
180-350
180-400
Workpiece rotary speed
r/min
75/130
75/130
Max.travel
mm
100
100
Feeding speed
mm/r
0.15
0.15
Motor power
kw
1.1
1.1
Overall size
mm
690*565*635
690*565*635
Machine weight
kg
200
200
