C9350C

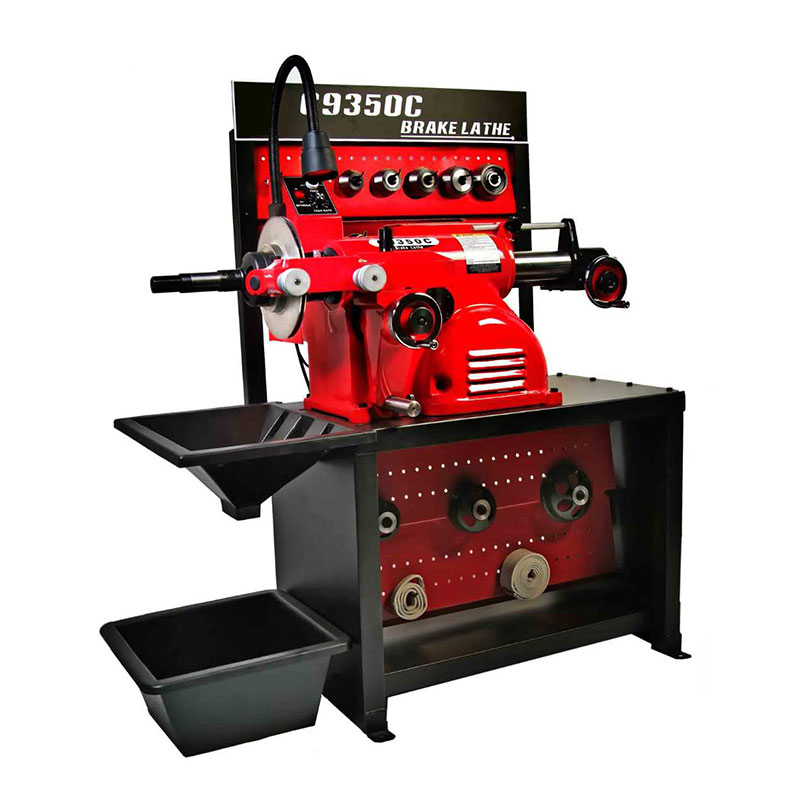

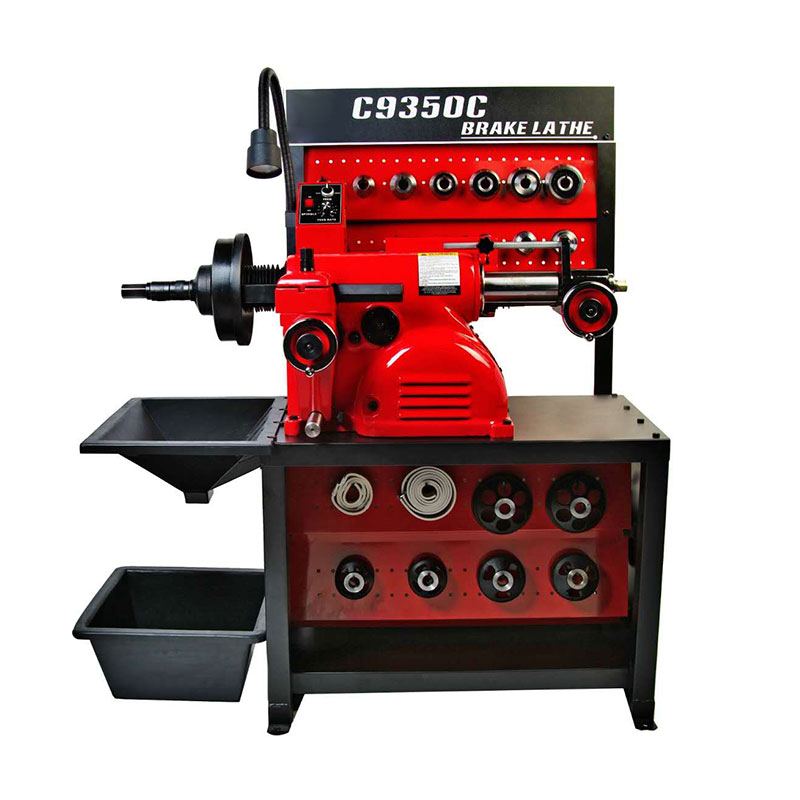

C9350C brake lathe machine Features:



1. The lathe uses precision electric DC servo motors designed to meet the demanding requirement of industrial motion control.
2. The "Change Adapter” system eliminates the need for conventional bell clamps and cones and features built-in springs ensure you don’t lose them.
3. The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability.
4. Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts.
5. A convenient top storage tray means you can easy to take your favorite adapters and tools.
6. Separate motors on the drum and rotor feed help maximize the main motor’s efficiency.

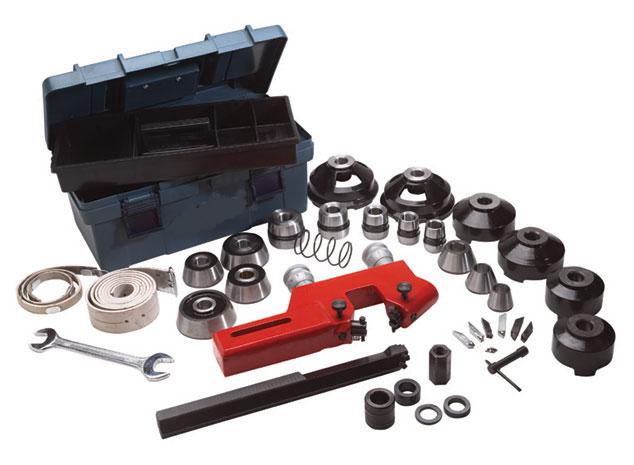

7. The variety of adapters lets you machine all standard and composite rotors for foreign and domestic cars and light trucks.
8.
 Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing you to complete your work fast.

Model
C9350C
Spindle Travel
6.875”(175mm)
Rotor diameter
7”-15”(180mm-381mm)
Drum diameter
6”-28”(152mm-711mm)
Motor
110V/220V/380V,50/60HZ
Spindle speed
70,88,118 rpm
Rotor thickness
1.875”(48mm)
Drum depth
6.875”(175mm)
Shipping weight
290 kg
Dimension (L×W×H)
970mm×950mm×1140mm
