Specification
|

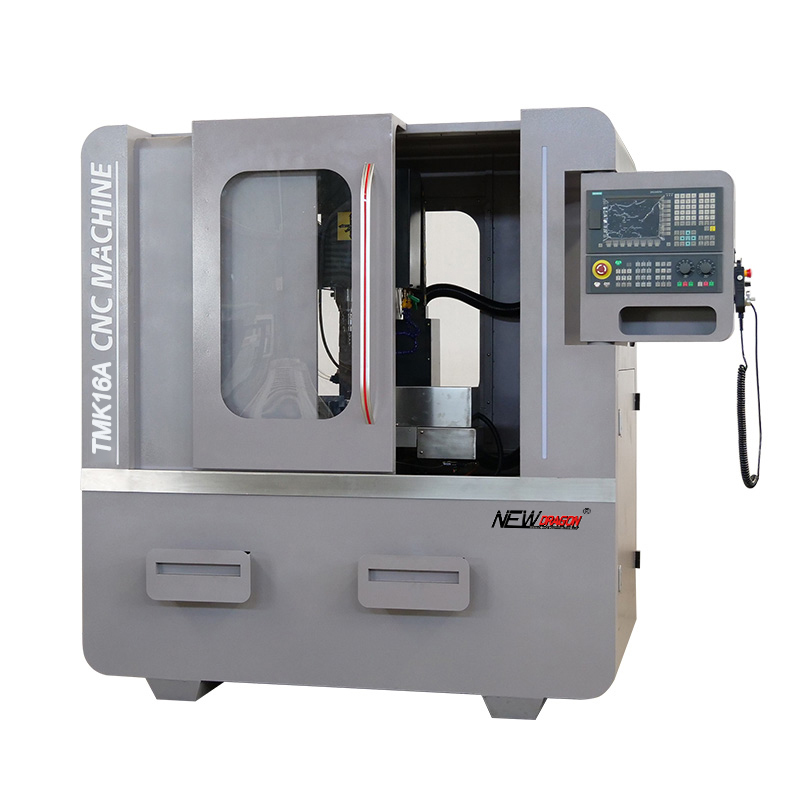

TMK16A
|
|
X axis travel
|
350mm
|
|
Y axis travel
|
160mm
|
|
Z axis travel
|
400mm
|
|
Spindle nose to table distance
|
476.4mm
|
|
Spindle center to column distance
|
161mm
|
|
Worktable size
|
600X163mm
|
|
Main motor
|
3KW
|
|
Spindle speed
|
18000r/min
|
|
Coolant system
|
liuquid cooling
|
|
Change tool way
|
Pnumetic
|
|
Spindle taper
|
BT30
|
|
ATC Type
|
Umbrella type
|
|
Capacity of ATC
|
8T
|
|
Air compressor pressure
|
12L
|
|
Lubricating pump capacity
|
1L
|
|
Working light
|
10W
|
|
Cooling pump
|
40W
|
|
Controller system
|
after1500MDC-4
|
|
XY axis servo motor torque
|
2.4N.M
|
|
Z axis servo motor torque
|
4N.M
|
|
XYZ fast moving speed.
|
8
|
|
XY Linear guideway
|
(Taiwan HIWIN)15mm
|
|
Z linear guideway
|
(Taiwan HIWIN)20mm
|
|
X axis ball leadscrew
|
(Taiwan TBI)1605
|
|
YZ axis ball leadscrew
|
(Taiwan TBI)2005
|
STANDARD ACCESSORIES

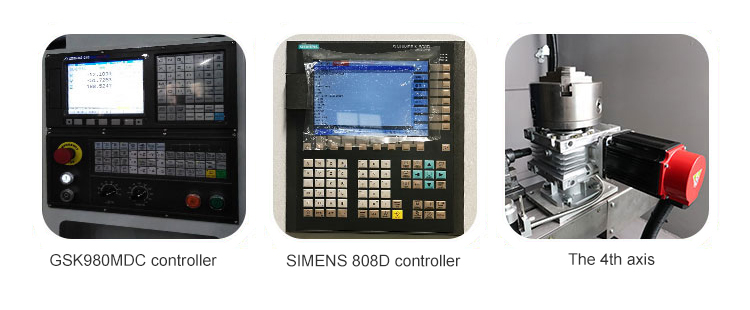

OPTIONAL ACCESSORIES
