Supersonic frequency hardened bed way.
Spindle speed readout.
Variable Speed.
DC motor
Precision roller bearing for spindle.
High quality steel, ground and hardened gear inside headstock.
Various threads cutting function available.
|

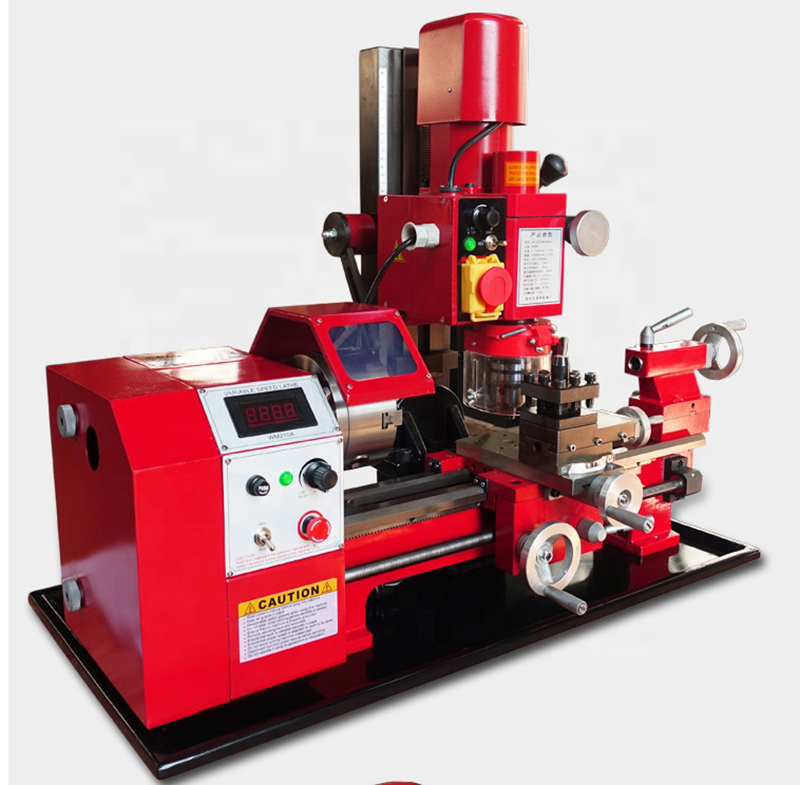

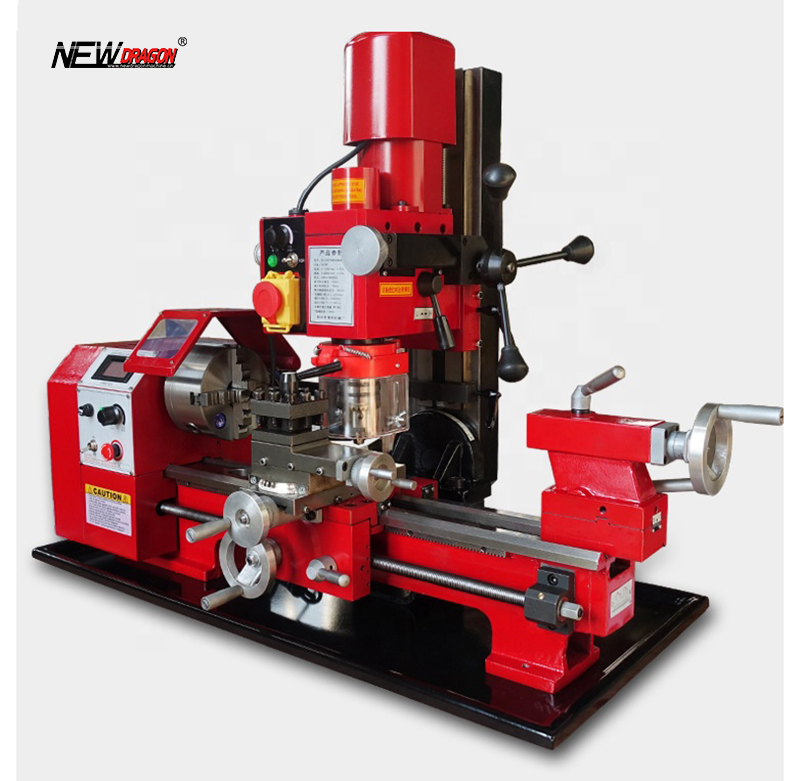

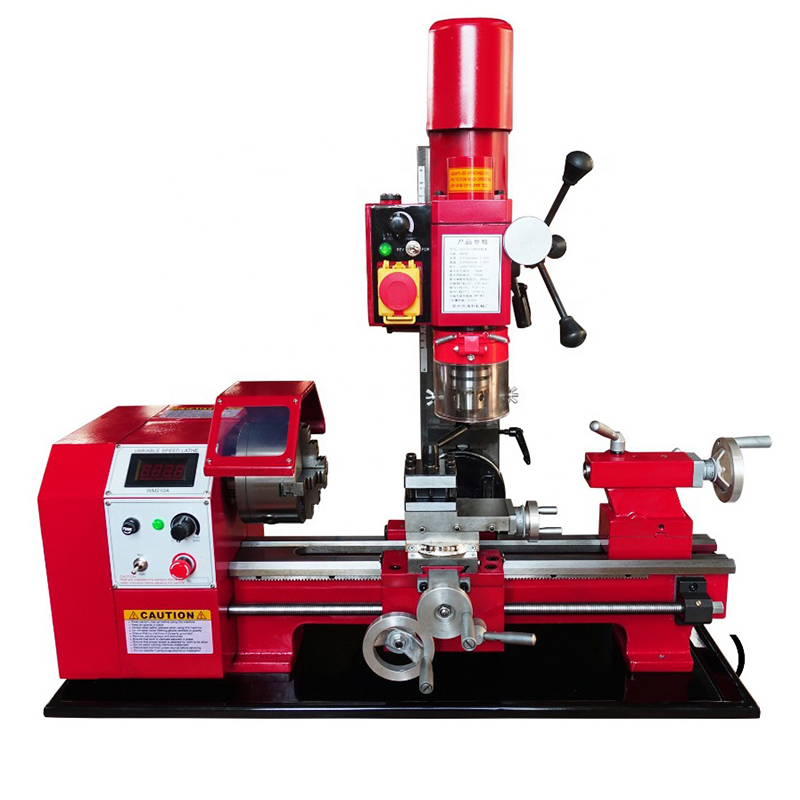

Specifications of JYP210V
|
||
|
Turning
|
Swing Over Bed
|
210mm
|
|
Distance Between Centers
|
400mm
|
|
|
Compound travel
|
55mm
|
|
|
Taper Of Spindle Bore
|
MT3
|
|
|
Diamenter of chuck
|
125mm
|
|
|
Spindle Bore
|
38mm
|
|
|
Width of bed
|
100mm
|
|
|
Tool Of Tailstock Quill
|
MT2
|
|
|
Tailstock quill travel
|
60mm
|
|
|
Cross slide travel
|
75mm
|
|
|
Spindle Speed
|
0-2500rpm
|
|
|
Range of Metric Thread
|
0.5-3mm
|
|
|
Motor
|
600W
|
|
|
Drilling and Milling
|
Max Drilling Capacity
|
13mm
|
|
Max. End Milling Capacity
|
16mm
|
|
|
Max. Face Mill Capacity
|
30mm
|
|
|
Z Travel
|
220mm
|
|
|
Spindle Taper
|
MT3
|
|
|
T-slot Size
|
10mm
|
|
|
Range Of Spindle Speed
|
L: 0-1100 rpm, H: 0-2500rpm
|
|
|
Motor
|
550W
|
|
|
Packing Size
|
900*550*930mm
|
|
|
G.W
|
150kgs/180kgs
|
|
