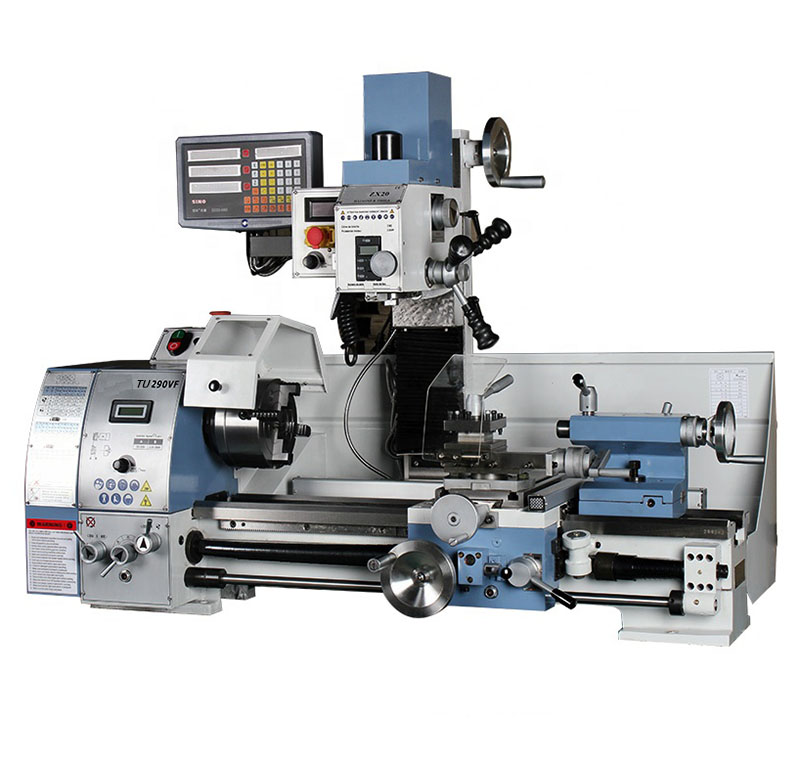

TU290VF Spindle Bore 38mm Manual Bench Metal Mini Lathe JYP290VF
MULTI USE LATHE FEATURES:
Frequency inverter
38mm spindle bore
V-way bed is hardened and precision ground
Independent leadscrew and feedshaft.
Power cross feed function.
Automatic feed and threading are fully interlocked
MT5 spindle hole gets greater capacity with Φ 160 mm three-jaw chuck
T-slotted cross slide
Top design of gearbox gets more function
Tailstock may be offset for turning tapers
Geared mill head gets more torque.
Mill head can be tilted ± 90° .

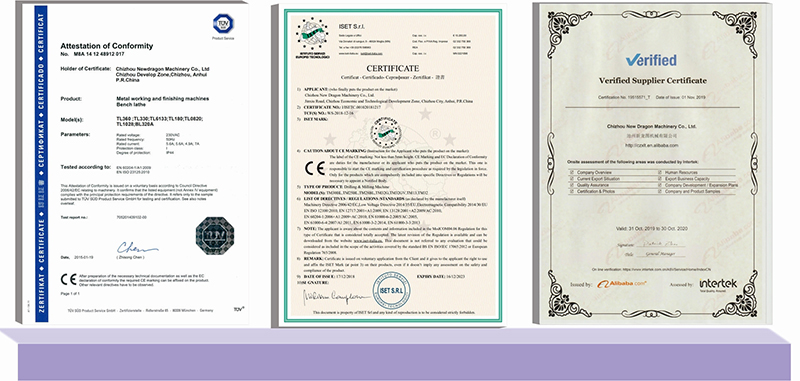

Tolerance test certificate, test flow chart included.
|
MODEL
|
JYP290V-F
|
|
Distance between centers
|
700 mm
|
|
Swing over bed
|
290 mm
|
|
Swing over cross slide
|
165 mm
|
|
Width of bed
|
180 mm
|
|
Taper of spindle bore
|
MT5
|
|
Spindle bore
|
38 mm
|
|
Number of spindle speeds
|
Variable
|
|
Range of spindle speeds
|
50-1800 rpm
|
|
Range of longitudinal feeds
|
0.07-040 mm/r
|
|
Range of inch threads
|
8-56 T.P.I
|
|
Range of metric threads
|
0.2-3.5 mm
|
|
Top slide travel
|
50 mm
|
|
Cross slide travel
|
165 mm
|
|
Tailstock quill travel
|
80 mm
|
|
Taper of tailstock quill
|
MT3
|
|
Motor
|
1.1 kw
|
|
Mill & drill
|
|
|
Taper of spindle bore
|
MT2
|
|
Spindle stroke
|
50mm
|
|
Spindle speed
|
50-2250 rpm
|
|
Max. distance spindle to table
|
375 mm
|
|
Max. distance spindle to column
|
185 mm
|
|
Motor
|
600W
|
|
Packing size
|
1400x780x1070 mm
|
|
Net weight
|
290/300 kg
|

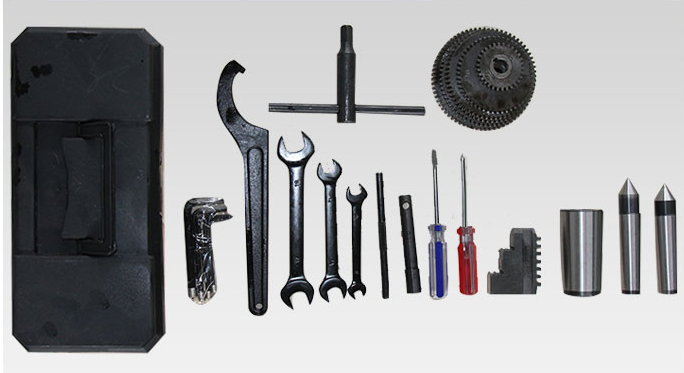

STANDARD ACCESSORIES
