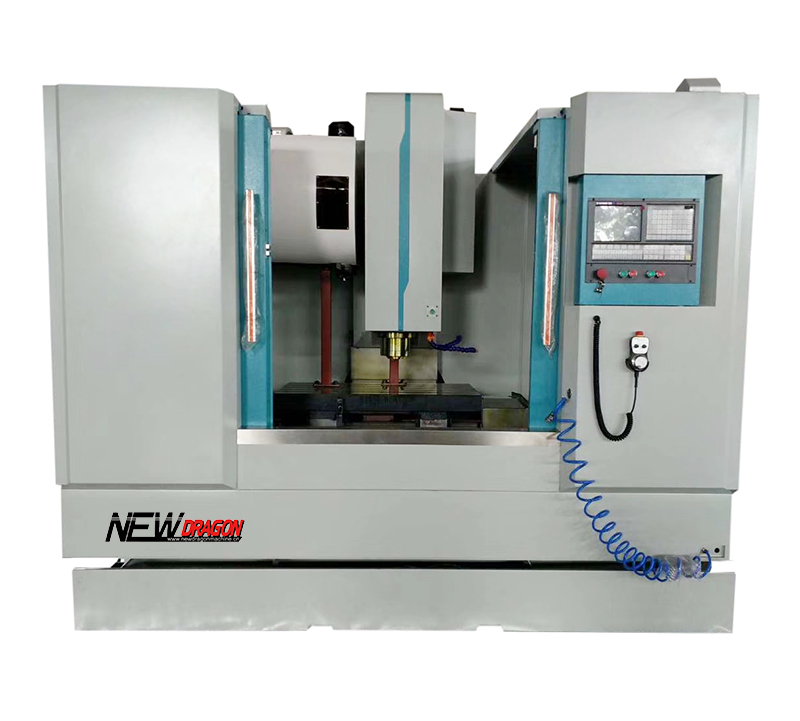

VMC950L
Vertical machine center
Basic Parameter for VMC950L CNC Milling Machine
Machine model :VMC950L(Three-axis rail)
|
Spindle speed (rpm) |
8000 |
|
|
Spindle servo motor power(KW) |
7.5 |
|
|
Feed motor |
X / Y / Z axis (Nm) |
X/10 Y/10 /Z15 |
|
stroke |
X-axis travel (mm) |
950 |
|
Y-axis travel (mm) |
500 |
|
|
Z axis travel (mm) |
500 |
|
|
Distance from spindle end to table surface (mm) |
150-650 |
|
|
Distance from spindle center to column guide surface (mm) |
500 |
|
|
table |
Table size(mm) |
1000X500 |
|
Number/width/distance of T-slot(mm) |
18-3-125 |
|
|
Worktable bearing weight (Kg) |
700 |
|
|
Automatic feed |
Rapid feed speed(X.Y.Z) (m/min) |
24/24/20 |
|
Lead screw |
Diameter / pitch (XYZ) (mm) |
40/12 |
|
Rail form |
Roller linear guide |
X/35.Y/35 Z/35 Roller
|
|
Precision |
Positioning accuracy(mm) |
0.008 |
|
RepeatPositioning accuracy (mm) |
0.005/300 |
|
|
system |
|
SIEMENS808-151 GSK980MDI |
|
Tool magazine |
|
BT40-T24 |
|
|
Air force source (pressure / volume) (Mpa) |
0.6 |
|
Protection |
Full protection |
|
|
Cooling / lubricating |
High-pressure water pump (two water and one gas)/ Electronic timed forced lubrication
|
|
|
Overall dimension(mm) |
2650X2300X2650 |
|
|
Machine weight(kg) |
4500 |
