Feature

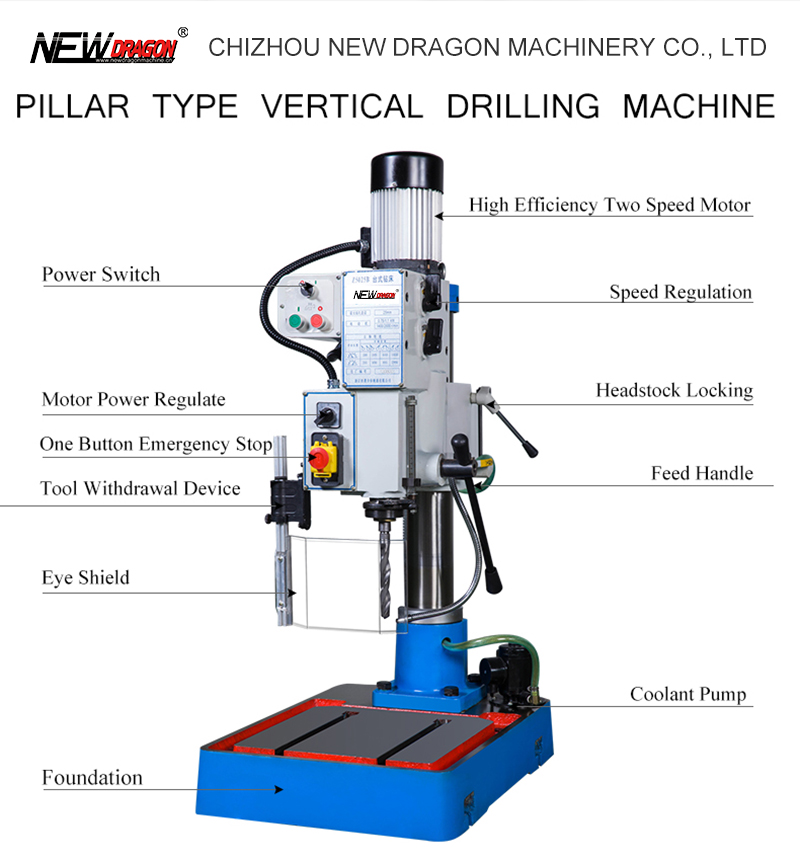

1. drilling machine Z5025B
2. Professional factory
3. high precision
4. Max. drilling diameter: 25mm
Main Specification
|
Model No. |
Z5025B |
|
Max drilling capacity |
25mm |
|
Column dia. |
100mm |
|
Spindle travel |
150 mm |
|
Distance from spindle axis to column generating line |
225mm |
|
Max distance from spindle nose to base |
550mm |
|
Spindle taper |
MT3 |
|
Spindle speeds range and steps |
100-2900rpm and 8 steps |
|
Table travel |
560mm |
|
Base size |
690×500mm |
|
Overall height |
1390mm |
|
Main motor power |
1.1/0.75KW |
|
Coolant motor power |
40W |
|
N.W/G.W |
225/235kg |
|
Overall dimension |
780x520x1170 mm |
