Feature

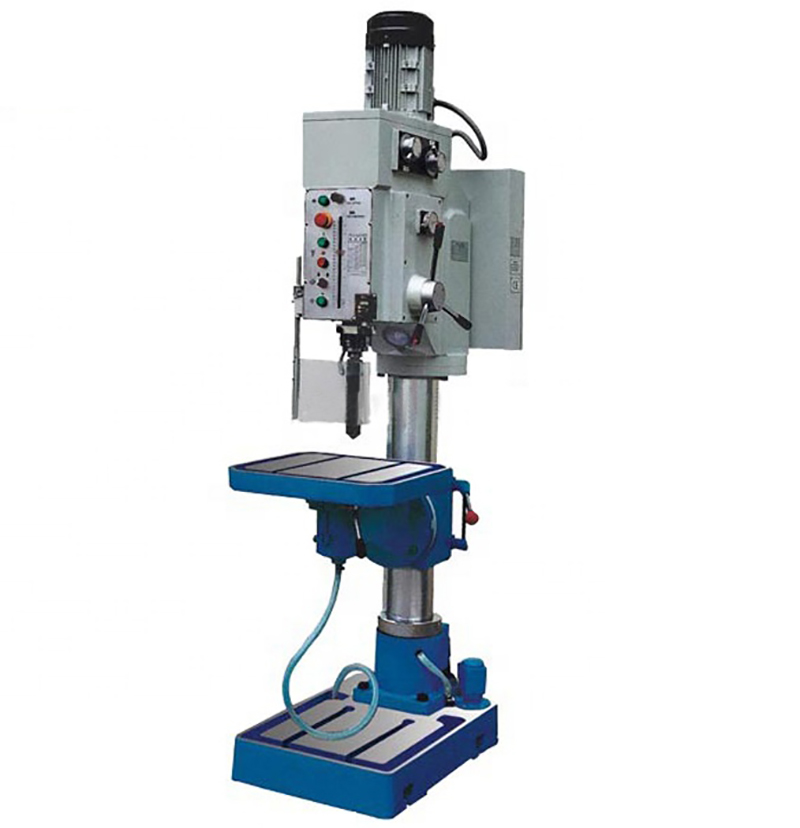

1. drilling machine Z5050
2. Professional factory
3. high precision
4. Max. drilling diameter: 50mm
Main Specification
|
Model |
Z5050 |
|
Max. drilling capacity |
50mm |
|
Max. tapping capacity |
M30mm |
|
Diameter of column |
180mm |
|
Spindle travel |
240mm |
|
Distance spindle axis to column generating line |
360mm |
|
Max. spindle nose to table |
570mm |
|
Max. spindle nose to base |
1160mm |
|
Spindle taper |
MT4orMT5 |
|
Spindle speed range |
42~2050r/min |
|
Spindle speeds series |
12 |
|
Spindle feeds |
0.07 0.15 0.26 0.40mm/r |
|
Dimension of worktable surface |
550X470mm |
|
Table travel |
550mm |
|
Dimension of base table |
450X440mm |
|
Over height |
2380mm |
|
Spindle motor power |
2.2/2.8KW |
|
Coolant motor |
40W |
|
G.W./N.W. |
800/7301045/985kg |
|
Packing dimension |
108X62X245cm |
