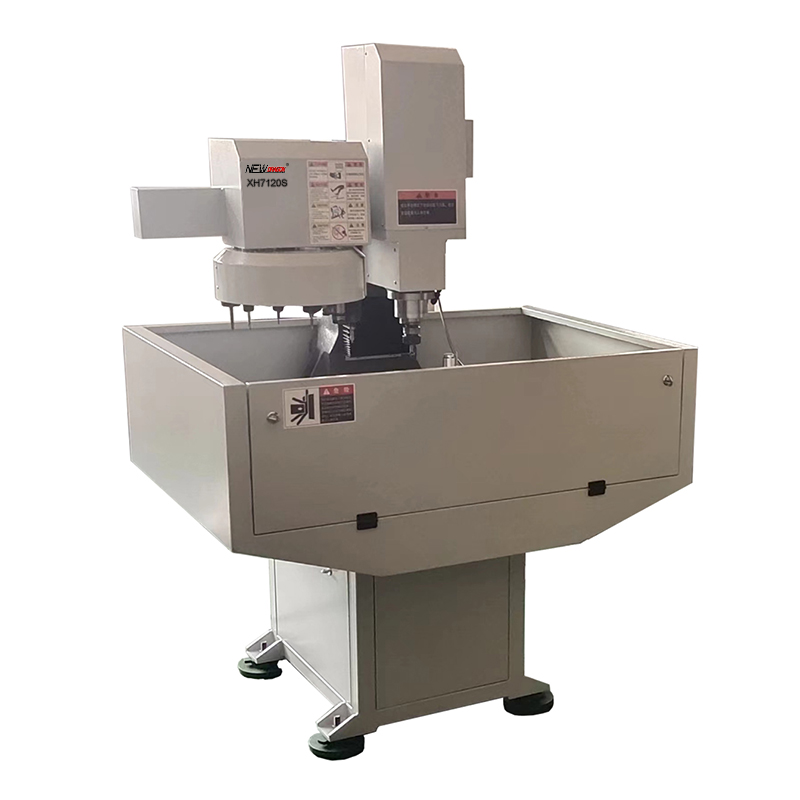

XH7120 8000rpm 3/4 axis cnc milling machine with high quality
|
MODEL |
XH7120S |
|
X/Y/Z axis motor |
XY 750W,Z 1.5KW Servo motor |
|
CNC Controller |
KYCNC 1000MC |
|
Spindle motor |
2.2KW 14N |
|
Spindle speed |
8000r/min |
|
Spindle |
BT30 ATC tool change |
|
Tool magazine |
12pcs disc tool changer |
|
XYZ stroke |
X360 Y200 Z350 |
|
XYZ Guide rail |
X20 YZ25 guide rail |
|
XYZ Ball screw |
XY2005 Z2505 |
|
G.W. |
500KG |
|
PACKING SIZE |
1200x700x1200mm |
|
Voltage |
220V |
|
Table Flatness |
0.01/200mm |
|
XY verticality |
0.01/200mm |
|
ZY verticality |
0.01/200mm |
|
XZ verticality |
0.01/200mm |
|
G0 SPEED |
15000mm/min |
|
Positioning accuracy |
0.015mm |
|
Repeatability accuracy |
0.01mm |
|
Working table size |
550x200mm |
